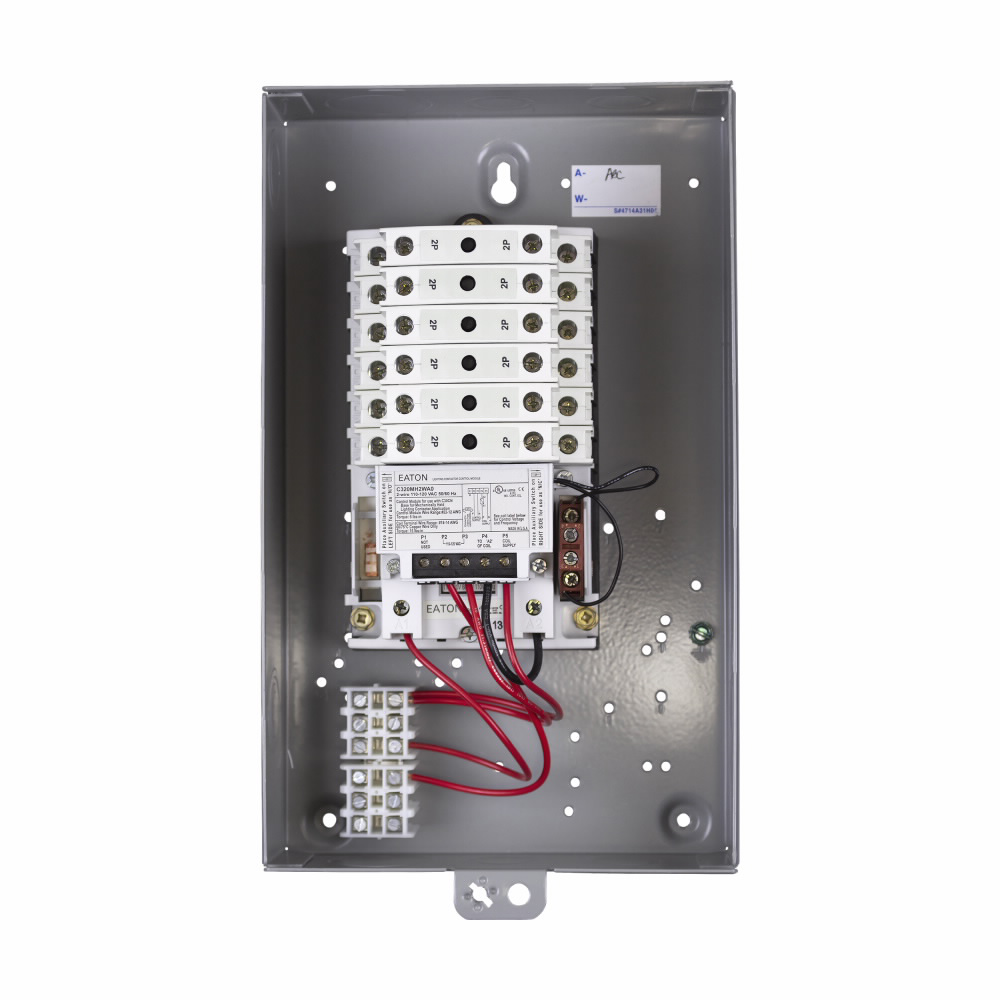

Eaton C30CN mechanically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, Six-pole, Electrically held, C30CN Series, Non-combination electrically and mechanically held
SKU: #164454
Part: #ECC03C1A6A
UPC: 782116154685
Eaton C30CN mechanically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, Six-pole, Electrically held, C30CN Series, Non-combination electrically and mechanically held
SKU: #164454
Part: #ECC03C1A6A
UPC: 782116154685
Next day delivery
Description
Eaton C30CN Mechanically Held Lighting Contactor - 30 A Lighting Contactor
The Eaton C30CN mechanically held lighting contactor is designed for reliable control of lighting loads in commercial and industrial applications. Suitable for use by electrical distributors and switchgear suppliers, it effectively manages tungsten, fluorescent, mercury arc, HID, and non-motor AC resistive loads in environments such as hospitals, office buildings, industrial plants, airports, and stadiums. This contactor offers flexibility with its six-pole design and painted steel enclosure, providing durable and safe lighting solutions.
Specifications
- Amperage: 30 amperes
- Coil Voltage: 120 volts
- Number of Poles: 6
- Enclosure Material: Painted Steel
- Dimensions (W x H x L): 6 in x 12.6 in x 7.62 in
- Product Weight: 13.5 lbs
- Manufacturer: Eaton
- Manufacturer Part #: ECC03C1A6A
Features
- Mechanically held operation ensures contactor remains latched during power failure for critical lighting control.
- Six-pole configuration allows flexible wiring and load control.
- Power poles can be easily latched onto the base and designated as normally open (NO) or normally closed (NC) by positioning.
- Additional poles may be added without replacing the contactor, supporting future load expansions.
- Low input VA enables long wire runs, reducing voltage drop and improving control performance.
- Coil voltage rating supports 110 V/50 Hz and 120 V/60 Hz operation.
- Painted steel enclosure rated for NEMA 1 indoor use, providing protection against dust and light contact.
- Designed for use in lighting control applications requiring quiet, energy-efficient operation.
