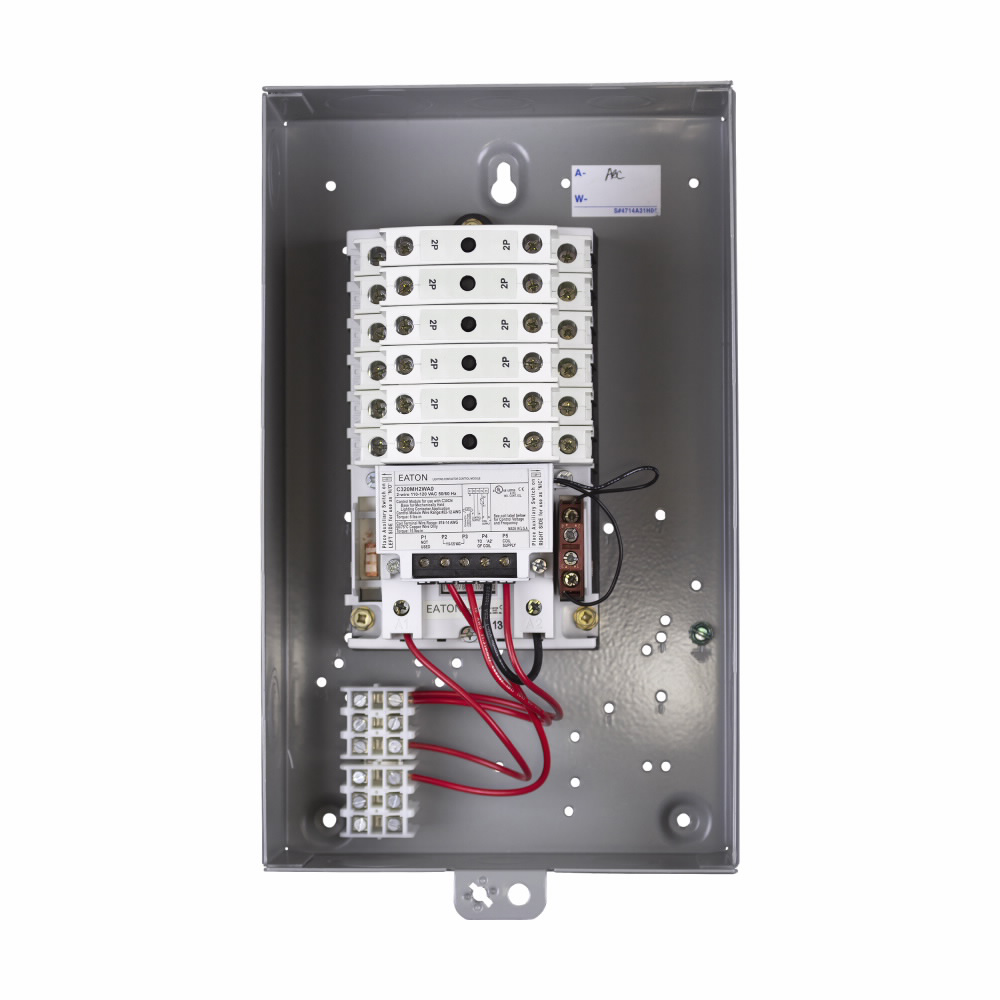

Eaton C30CN Mechanically Held Lighting Contactor – Lighting Solutions

The Eaton C30CN lighting contactor is designed for reliable control of lighting loads in commercial and industrial applications. It is suitable for electrical distributors and switchgear suppliers looking for versatile lighting solutions that effectively manage tungsten, fluorescent, mercury arc, HID, and non-motor AC resistive loads. The contactor supports both two-wire and three-wire control schemes and is ideal for use in hospitals, office buildings, industrial plants, airports, and stadiums.

Specifications

• Amperage: 30 amperes
• Coil Voltage: 120 volts
• Dimensions: 6 in (Width) x 12.6 in (Height) x 7.62 in (Length)
• Enclosure Material: Painted Steel
• Manufacturer Part #: ECC04C1ABA
• Product Weight: 13.5 lbs
• Number of Poles: 12-pole
• Operating Frequency: 50 Hz / 60 Hz
• NEMA Type: NEMA 1

Features

• Mechanically held operation ensures contactor remains latched during power failure, preventing unintended switching off
• Low magnetic noise for quiet, energy-efficient operation
• Modular design allows easy addition or modification of power poles (NO or NC) without replacing the contactor
• Power poles latch onto the base with simple left/right positioning for NO or NC designation
• Robust pole terminals accept up to two #8 AWG wires
• Auxiliary contacts rated A600 suitable for low-level circuits down to 12V, 5 mA
• Enclosed control available in NEMA 1, 3R, 12, 7/9, and 4X enclosures
• Suitable for controlling tungsten, ballast, HID, and non-motor AC resistive loads
• Fast, sure three-point mounting for installation ease
