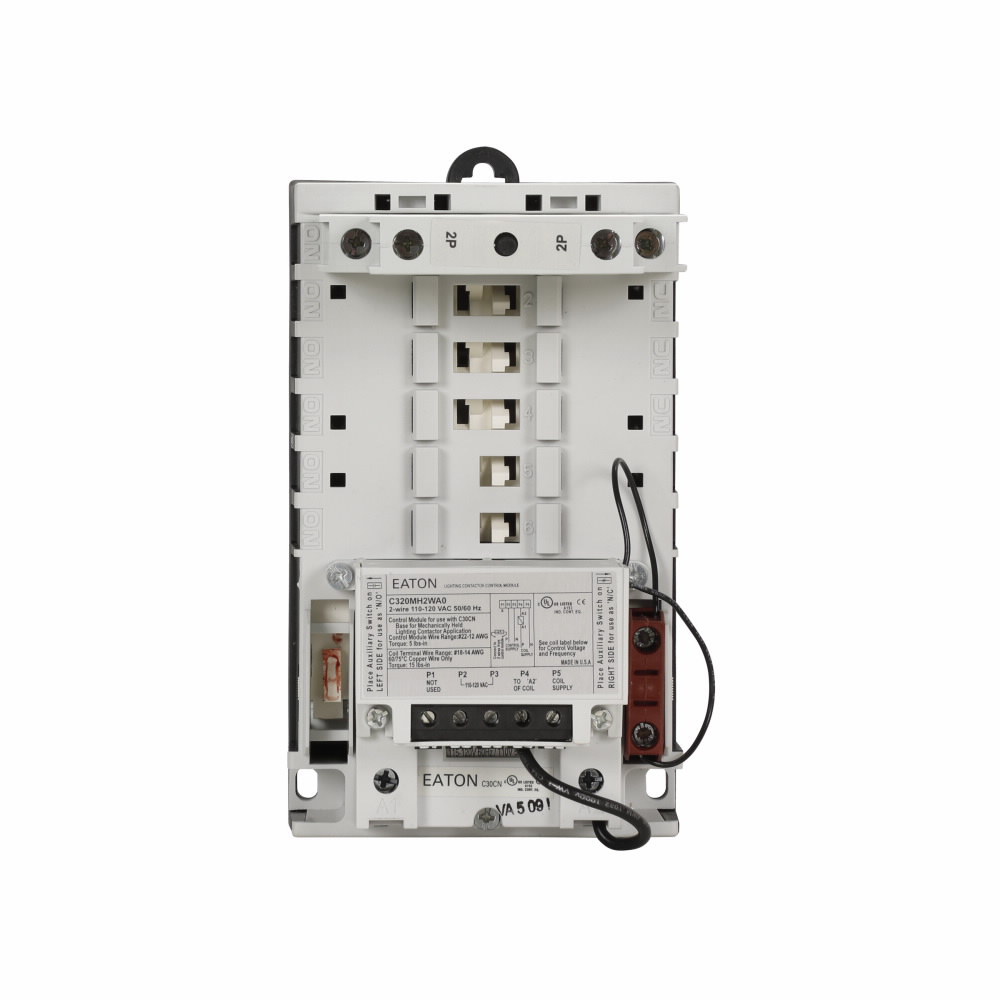

Eaton C30CN mechanically held lighting contactor, 30 A, 1 NO, 12 NO 0 NC, 30 A, Two-pole, Two-wire, Mechanically and electrically held, C30 Series, Lighting contactors, 120 V
SKU: #160965
Part: #C30CNM120H03H0
UPC: 782116136063
Eaton C30CN mechanically held lighting contactor, 30 A, 1 NO, 12 NO 0 NC, 30 A, Two-pole, Two-wire, Mechanically and electrically held, C30 Series, Lighting contactors, 120 V
SKU: #160965
Part: #C30CNM120H03H0
UPC: 782116136063
Next day delivery
Description
Eaton C30CN Mechanically Held Lighting Contactor, 30 A – Lighting Contactors
The Eaton C30CN lighting contactor is designed for versatile and reliable control of lighting loads including tungsten (incandescent filament), ballast (fluorescent and mercury arc), High Intensity Discharge (HID), and non-motor AC resistive loads. Suitable for applications in hospitals, office buildings, industrial plants, airports, and stadiums, this contactor offers quiet, energy-efficient operation with a mechanically held latch that maintains contact position even during power failure. It supports both two-wire and three-wire control configurations and is available in enclosed control units compatible with multiple NEMA enclosure types.
Specifications
- Amperage: 30 amperes
- Contact Configuration: 12 NO, 0 NC
- Manufacturer Part #: C30CNM120H03H0
- Width: 4.18 in
- Height: 3.86 in
- Length: 7.39 in
- Product Weight: 5.05 lbs
- UPC: 782116136063
- Control Voltage: 120 V (implied from product name)
Features
- Mechanically held operation ensures contacts remain closed during power failure
- 2 to 12 power poles with easy snap-on assembly and simple NO/NC designation by pole orientation
- Low input VA allows for long wire runs
- Robust pole terminals accept up to two #8 AWG wires
- Finger and back-of-hand safe power terminals for enhanced safety
- Auxiliary contacts rated A600 for low-level circuits down to 12 V, 5 mA
- Power poles rated for 30 A, 15 A motor rated, and pilot duty rated applications
- Enclosed control options available in NEMA 1, 3R, 12, 7/9, and 4X enclosures
- Modular design allows addition of power poles and accessories such as control power transformers, auxiliary contacts, relays, selector switches, pushbuttons, indicating lights, terminal blocks, and wire markers
- Two-wire control for automatic or single-pole device operation; three-wire control for momentary operation from multiple locations
