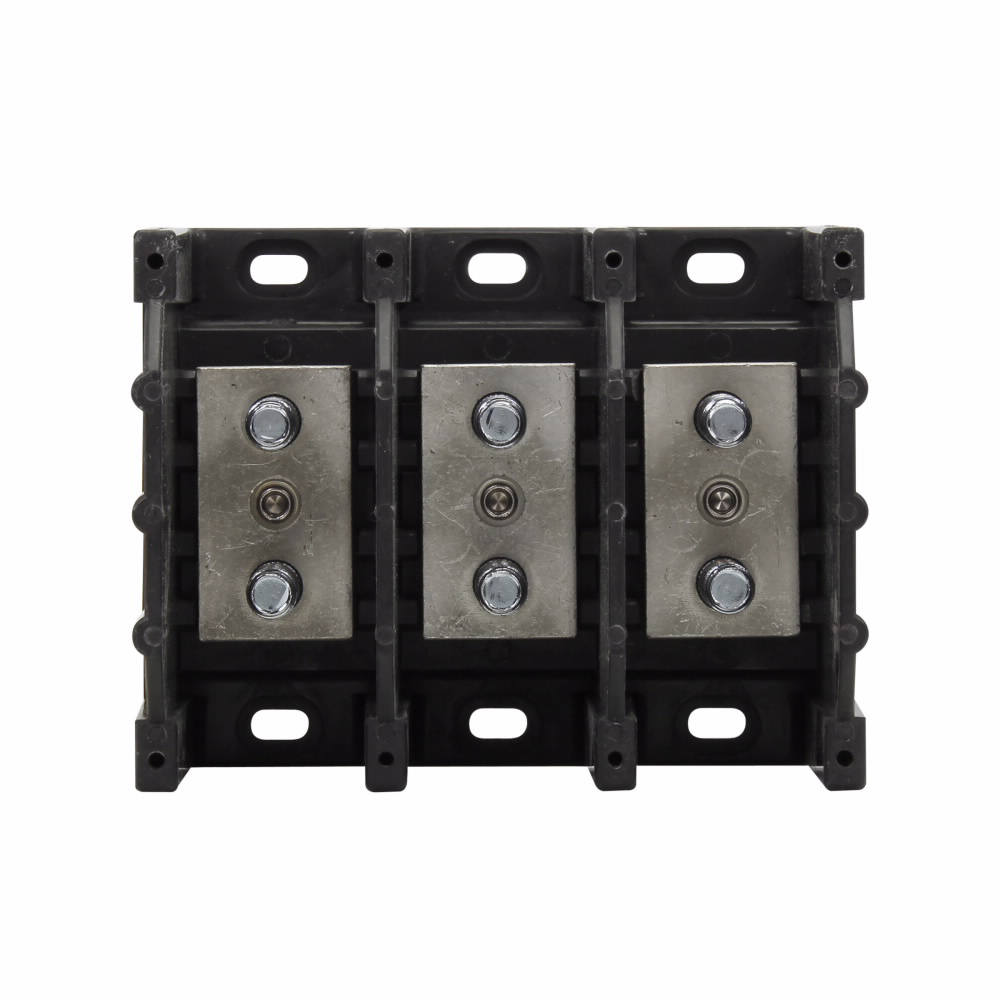

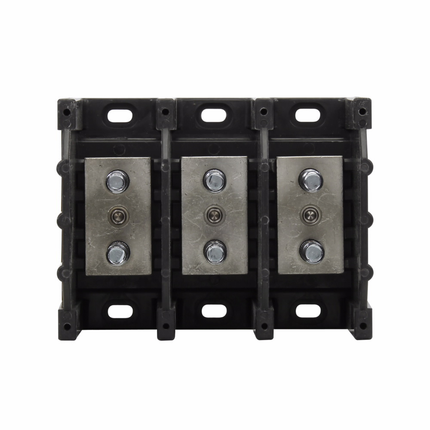

Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 250A, Power terminal block, Three-pole, 3/8 In-16 TPI X 1-1/8 In Stud (Line/Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
SKU: #394933
Part: #16390-3
UPC: 051712208116
Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 250A, Power terminal block, Three-pole, 3/8 In-16 TPI X 1-1/8 In Stud (Line/Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
SKU: #394933
Part: #16390-3
UPC: 051712208116
Description
Eaton Bussmann Series Power Terminal Block - Power Terminal Block
The Eaton Bussmann series power terminal block is designed for reliable power distribution in electrical systems. This three-pole terminal block supports up to 250 amperes and is rated for 600 Vac and 600 Vdc applications. It features a molded thermoplastic base with tin-plated aluminum connectors, suitable for use by electrical distributors and switchgear suppliers in industrial and commercial wiring installations requiring secure and efficient wire and cable connections.
Specifications
- Manufacturer Part #: 16390-3
- Voltage Rating: 600 Vac, 600 Vdc
- Amperage: 250 amperes
- Number of Poles: Three-pole
- Connection Type: 3/8 In-16 TPI X 1-1/8 In Stud (Line/Load)
- Material: Molded Thermoplastic Base, Tin-plated Aluminum Connector
- Color: Black
- Dimensions (L x W x H): 5.2 in x 4 in x 3.18 in
- Short Circuit Current Rating (SCCR): 10 kA
- Product Weight: 1.77 lbs
- UPC: 051712208116
Features
- Barrier-type power terminal block for secure connections
- Molded black thermoplastic base ensures durability and electrical insulation
- Tin-plated aluminum connectors provide corrosion resistance and reliable conductivity
- Three-pole design supports multiple circuits in one compact unit
- High short circuit current rating (10 kA) for enhanced safety in industrial applications
