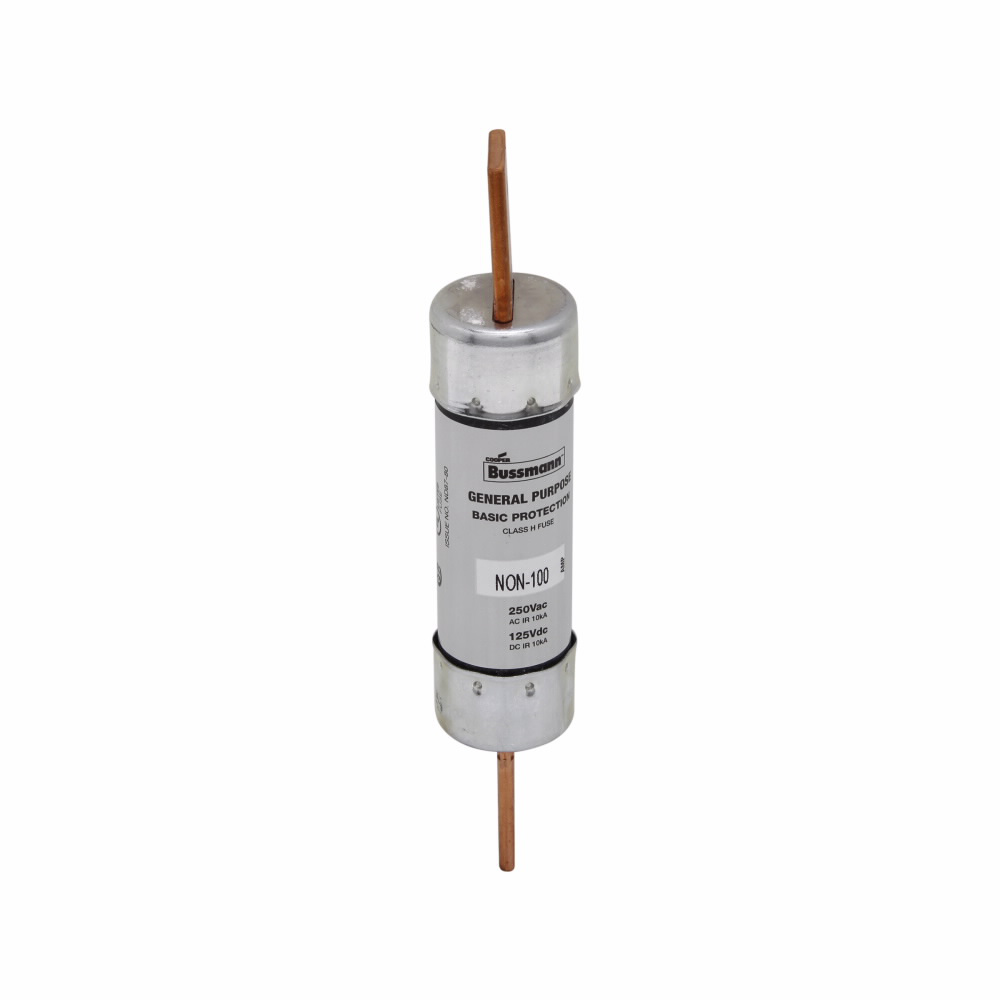

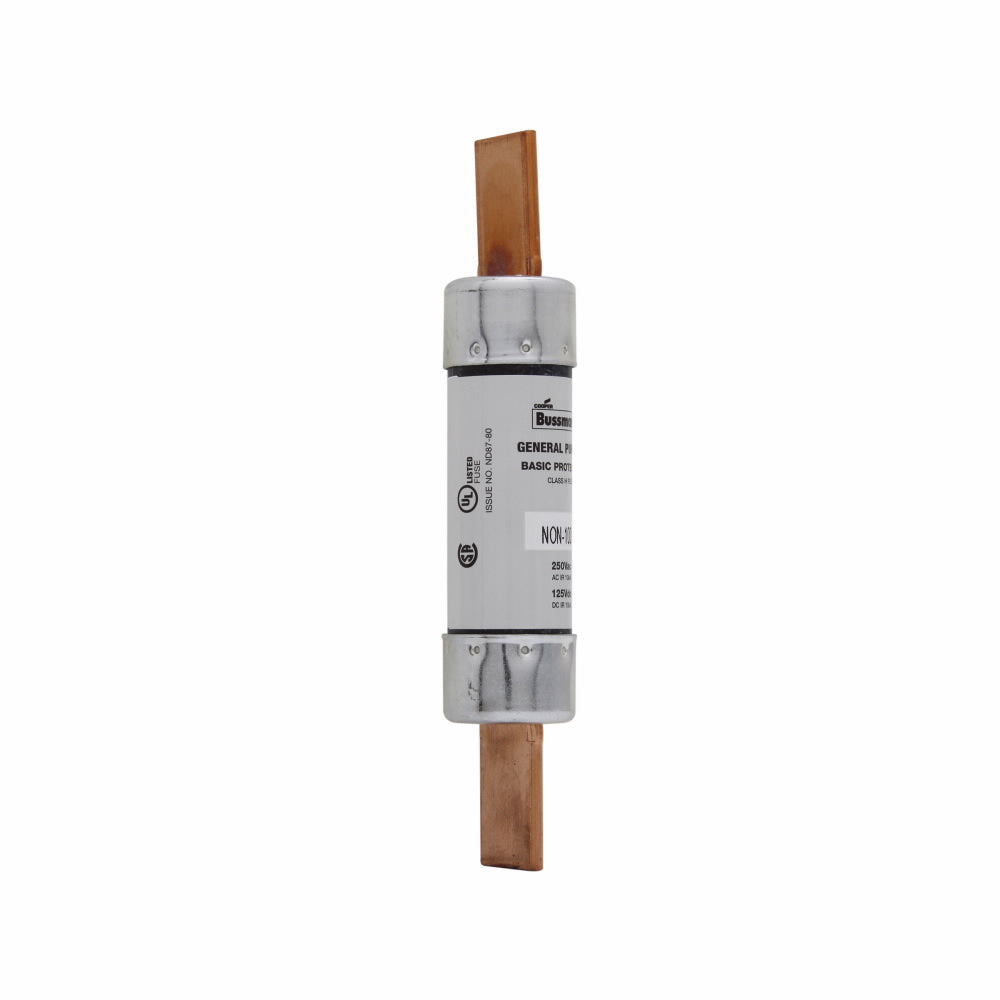

Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 100 A, Class H, Non-indicating, Blade end x blade end, 50 kAIC at 125 Vdc,10 kAIC at 250 Vac, Standard, 5, 250 V, 125 Vdc
SKU: #334290
Part: #NON-100
UPC: 051712101684
Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 100 A, Class H, Non-indicating, Blade end x blade end, 50 kAIC at 125 Vdc,10 kAIC at 250 Vac, Standard, 5, 250 V, 125 Vdc
SKU: #334290
Part: #NON-100
UPC: 051712101684
Total Price: $65.43 per each Sold in increments of 1 each
Description
Eaton Bussmann Series NON Fuse – Supplemental One-Time Fuse
The Eaton Bussmann series NON fuse is a Class H, non-current-limiting, one-time fuse designed for basic protection in light duty circuit locations. Suitable for electrical distributors and switchgear suppliers, this fuse protects lighting, heating, and other circuits that are not subject to temporary surges and where available short-circuit currents are relatively low. It features blade end connections for easy installation in general purpose circuits and is rated for 100 amperes at 250 VAC and 125 VDC.
Specifications
- Amperage: 100 amperes
- Voltage Rating: 250 VAC, 125 VDC
- Interrupting Rating: 50 kAIC at 125 VDC, 10 kAIC at 250 VAC
- Class: Class H
- Connection Type: Blade
- End Type: Blade
- Dimensions (L x W x H): 5.875 in x 1.125 in x 1.125 in
- Product Weight: 0.2780 lbs
- Manufacturer Part Number: NON-100
- UPC: 051712101684
Features
- General purpose fuse for circuits without large transients or motor overloads
- Non-indicating, one-time fuse with no appreciable time delay
- Blade end x blade end connection for reliable electrical contact
- Suitable for lighting solutions, wire and cable protection, and switchgear applications
- Meets UL Listed standards for Class H fuses (Std. 248-6)
