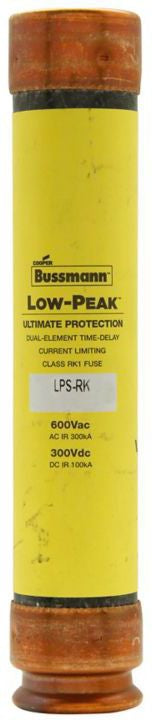

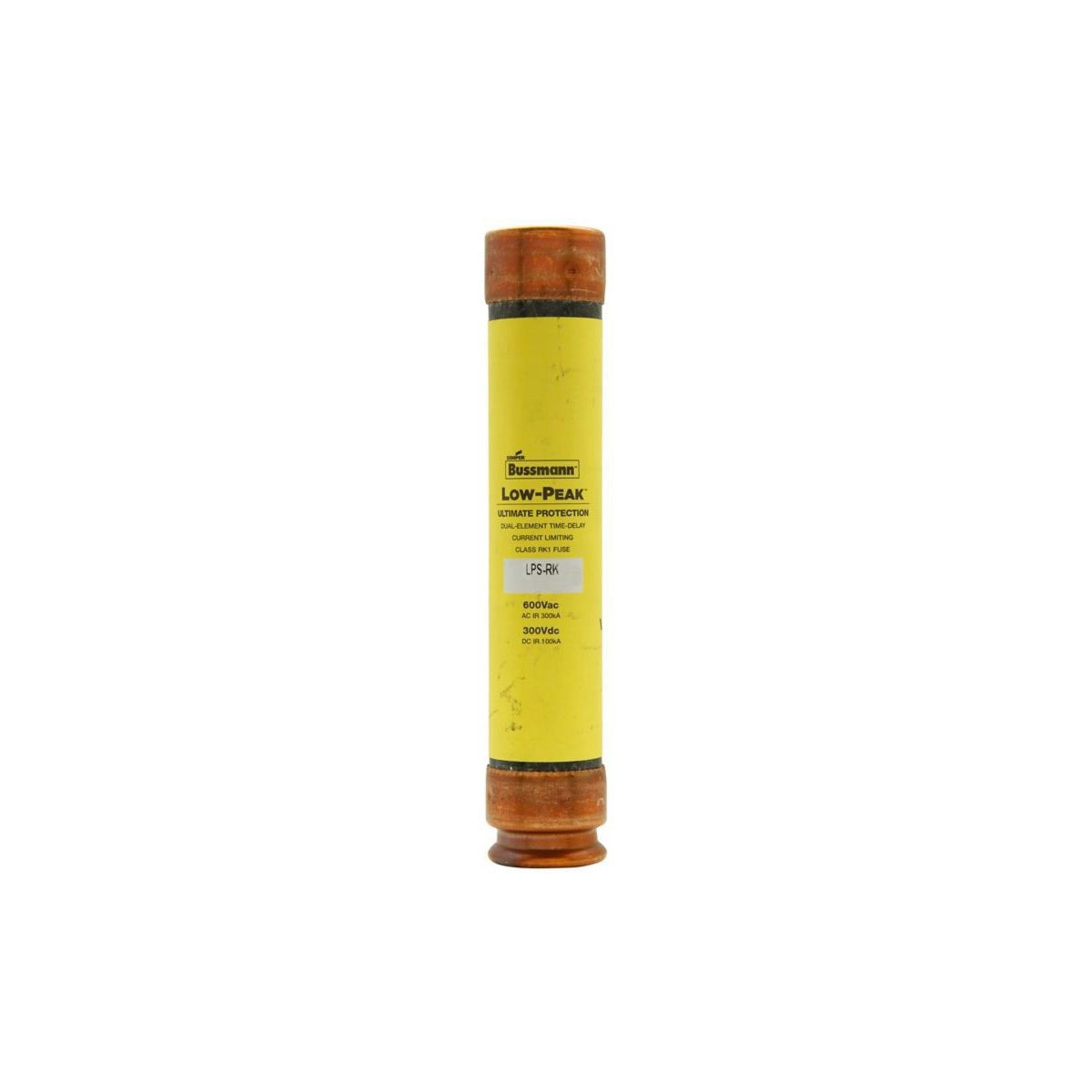

Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 60 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
SKU: #334184
Part: #LPS-RK-60SP
UPC: 051712548410
Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 60 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
SKU: #334184
Part: #LPS-RK-60SP
UPC: 051712548410
Description
Eaton Bussmann series LPS-RK fuse - Low-Peak Fuse 60A
The Eaton Bussmann series LPS-RK fuse is a Class RK1 dual element, time-delay fuse designed for ultimate protection in electrical distribution and lighting solutions. It provides current-limiting and time-delay performance suitable for feeder and branch circuits, motors, transformers, solenoids, and general purpose electrical applications. This fuse supports both AC and DC voltages, making it a reliable component for wire and cable protection in industrial and commercial switchgear systems.
Specifications
- Amperage: 60 amperes
- Voltage Rating: 600 Vac / 300 Vdc
- Interrupt Rating: 100 kiloamps DC / 300 kiloamps AC
- Class: Class RK1
- Connection Type: Ferrule end x ferrule end
- Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
- Time-Delay: 10 seconds minimum at 500% rated current
- Catalog Number: LPS-RK-60SP
- Product Weight: 2.6 lbs
Features
- Dual-element construction for time-delay and current-limiting protection
- Non-indicating fuse with optional open fuse indication available on select ratings
- UL Listed and CSA Certified for Class RK1 fuses
- Fast short-circuit protection with a 300 kA interrupting rating for AC and 100 kA for DC
- Reduces fuse inventory by enabling selective coordination with consistent 2:1 ampacity ratios
- Time-delay permits 130% full load ampacity sizing for motor back-up protection
- Protects downstream components from thermal and magnetic damage caused by short-circuit currents
- Suitable for use in feeder and branch circuits, motors, transformers, and solenoids
