Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 50 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc

Name: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 50 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc
Brand: Bussmann
SKU: 334179
Price: 78.02 USD
Availability: OutOfStock

SKU: #334179

Part: #LPS-RK-50SP

UPC: 051712548403

Bussmann

Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 50 A, Dual, RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Standard, 10, 600 V, 300 Vdc

SKU: #334179

Part: #LPS-RK-50SP

UPC: 051712548403

Product form

Out of stock

Free pickup available

Next day delivery

Description

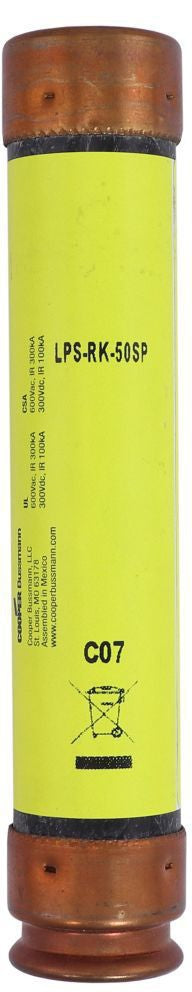

Eaton Bussmann series LPS-RK fuse ‚Äì Low-Peak RK1 Time-Delay Fuse

The Eaton Bussmann series LPS-RK fuse is a Class RK1 dual element, current-limiting, time-delay fuse designed for low voltage applications up to 600 Vac and 300 Vdc. It provides ultimate protection for feeder and branch circuits, motors, transformers, solenoids, and general purpose circuits. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable overcurrent protection with high interrupting ratings and time-delay performance.

Specifications

Amperage: 50 amperes
Voltage Rating: 600 Vac / 300 Vdc
Interrupt Rating: 100 kiloamps DC, 300 kiloamps AC RMS Sym.
Fuse Class: Class RK1
Connection Type: Ferrule end x ferrule end
Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
Time-Delay: 10 seconds minimum at 500% of rated current
Catalog Number: LPS-RK-50SP
Product Weight: 2.6 lbs
Non-indicating fuse type
UL Listed and CSA Certified (UL 248-12, CSA C22.2 No. 248.12)

Features

Dual-element design provides fast short-circuit protection with time-delay for temporary overloads
Current-limiting capability reduces damaging thermal and magnetic effects downstream
High interrupting rating (300 kA at 600 V AC, 100 kA at 300 V DC) allows safe installation in virtually any application
Consistent 2:1 ampacity ratios simplify selective coordination
Time-delay permits 130% full load amperage sizing for motor backup protection
Reduces fuse inventory by up to 33% when upgrading to Low-Peak fuses
Protects against single-phase motor damage and supports ‚Äúno damage‚Äù Type 2 coordinated protection for NEMA and IEC motor controllers
