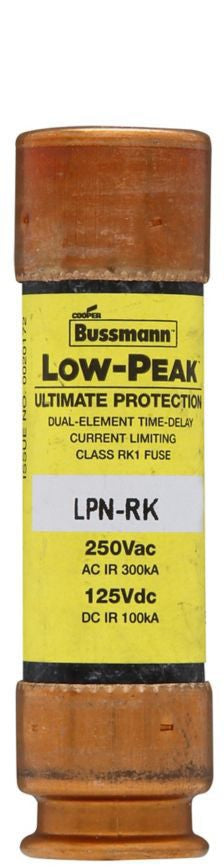

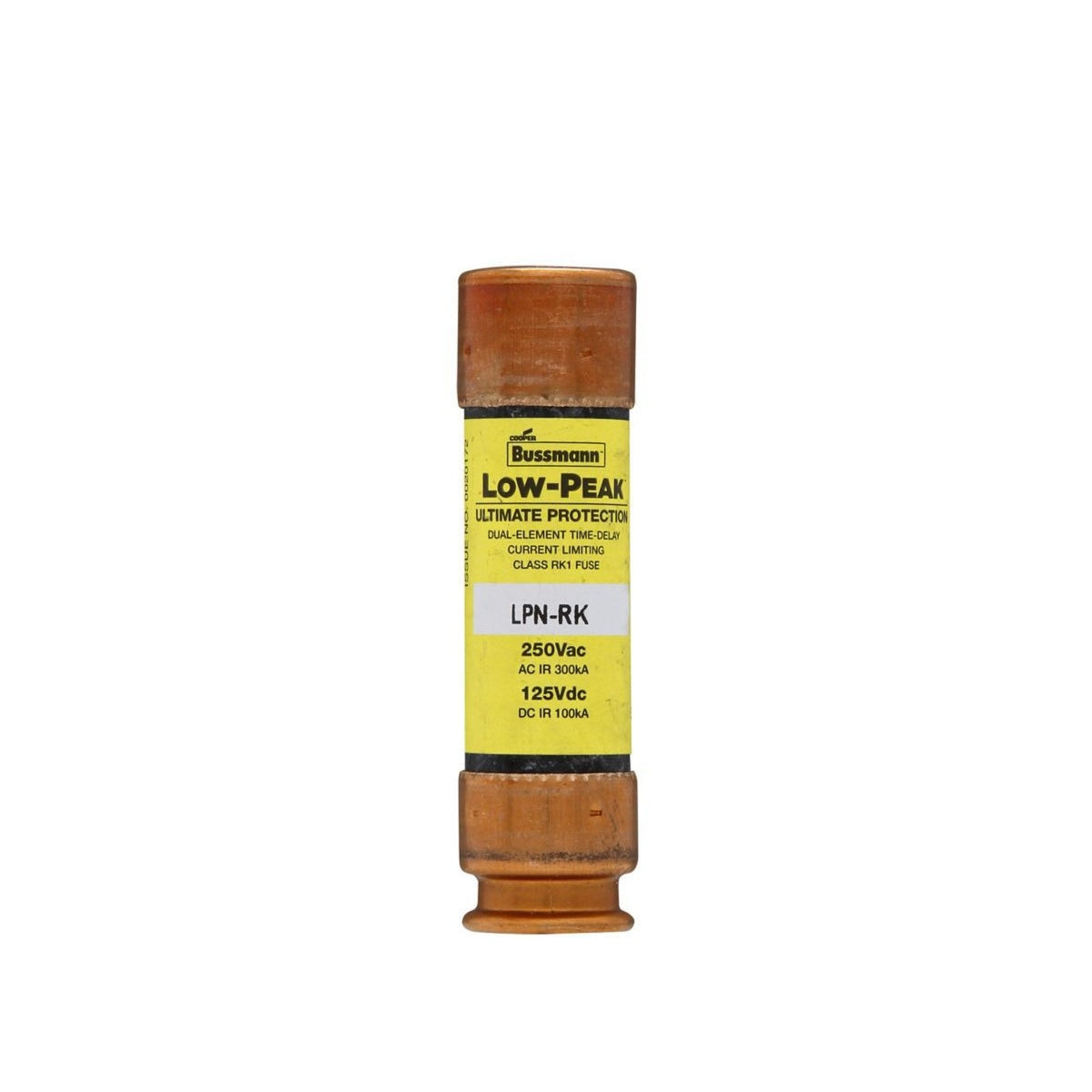

Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 60 A, Dual, Class RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 250 V,100 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
SKU: #334148
Part: #LPN-RK-60SP
UPC: 051712538411
Eaton Bussmann series LPN-RK fuse, Low-peak fuse, 60 A, Dual, Class RK1, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 250 V,100 kAIC at 125 Vdc, Standard, 10, 250 V, 125 Vdc
SKU: #334148
Part: #LPN-RK-60SP
UPC: 051712538411
Description
Specifications
General
- UPC: 051712538411
- Product Length/Depth: 3 in
- Product Height: .81 in
- Product Width: .81 in
- Product Weight: 1.2 lb
- Warranty: Not Applicable
- Compliances: CE Marked
Electrical Rating
- Amperage Rating: 60 A
- Interrupt rating: 300 kAIC at 250 Vac
- Response time: 10 sec at 500%
- Voltage rating: 250 Vac, 125 Vdc
Physical Details
- Fuse type: Time delay
- Number of elements: Dual
- Packaging type: Standard
General Information
- Class: Class RK1
- Connection: Ferrule end x ferrule end
- Fuse indicator: Non-indicating
- Quantity: 10
- Special features: Electrically isolated end cap
