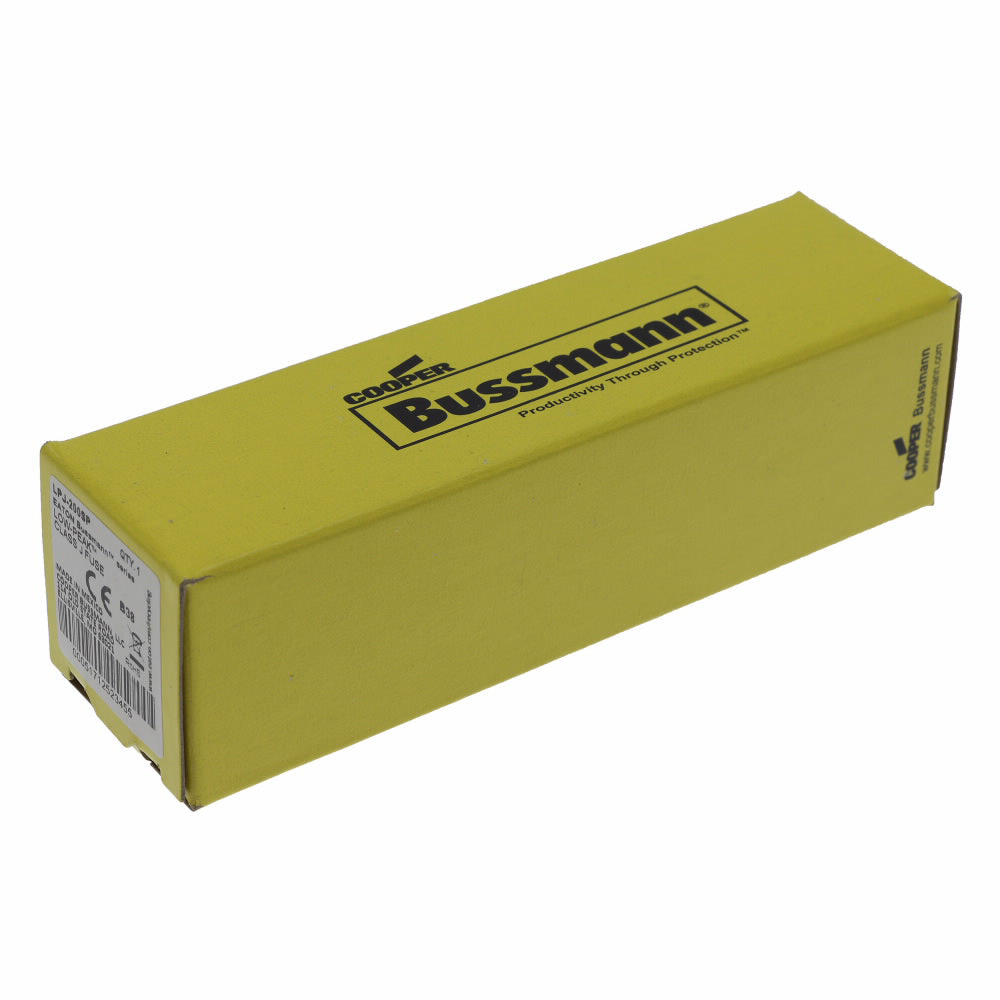

Eaton Bussmann series LPJ fuse, Low-peak fuse, 200 A, Dual, Class J, Non-indicating, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC Vdc,300 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #334036
Part: #LPJ-200SP
UPC: 051712523455
Eaton Bussmann series LPJ fuse, Low-peak fuse, 200 A, Dual, Class J, Non-indicating, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 100 kAIC Vdc,300 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #334036
Part: #LPJ-200SP
UPC: 051712523455
Total Price: $387.79 per each Sold in increments of 1 each
Description
Specifications
General
- UPC: 051712523455
- Product Length/Depth: 5.75 in
- Product Height: 2.5 in
- Product Width: 2.5 in
- Product Weight: .75 lb
- Warranty: Not Applicable
- Compliances: CE Marked
Electrical Rating
- Amperage Rating: 200 A
- Interrupt rating: 300 kAIC at 600 Vac
- Response time: 10 sec at 500%
- Voltage rating: 600 Vac, 300 Vdc
Physical Details
- Fuse type: Time delay
- Number of elements: Dual
- Packaging type: Standard
General Information
- Class: Class J
- Connection: Bolted blade end x bolted blade end
- Fuse indicator: Non-indicating
