Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 900A, 300 kAIC at 600 Vac, 100 kA at 300 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 2.5, Inch, Non Indicating, 4 S at 500%
SKU: #333897
Part: #KRP-C-900SP
UPC: 051712605144
Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 900A, 300 kAIC at 600 Vac, 100 kA at 300 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 2.5, Inch, Non Indicating, 4 S at 500%
SKU: #333897
Part: #KRP-C-900SP
UPC: 051712605144
Description

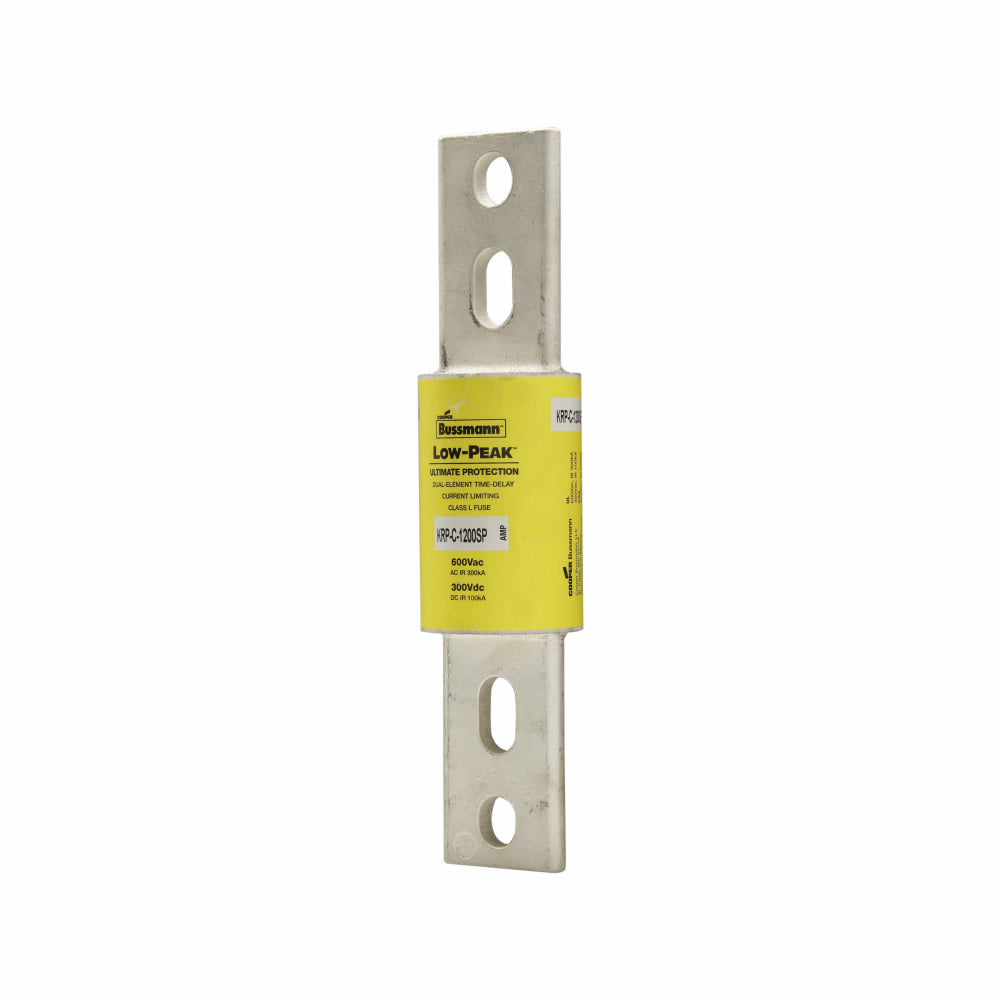

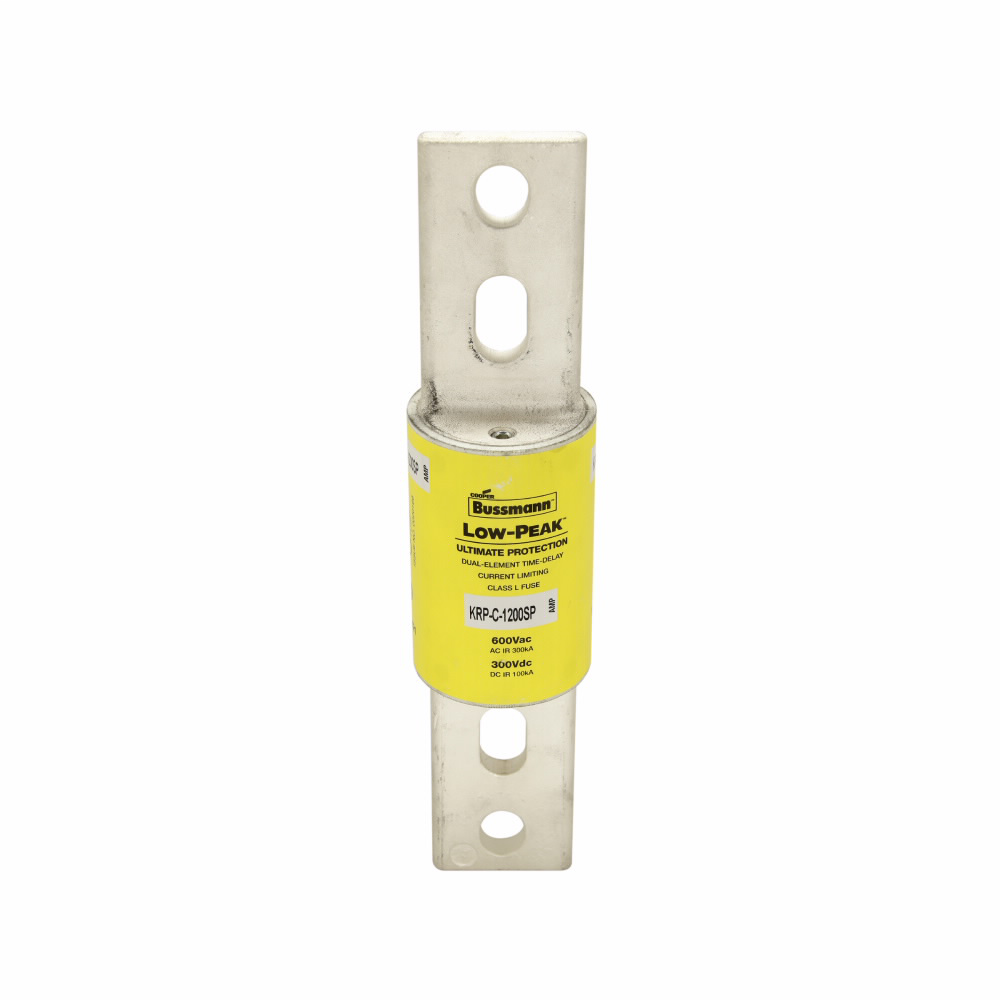

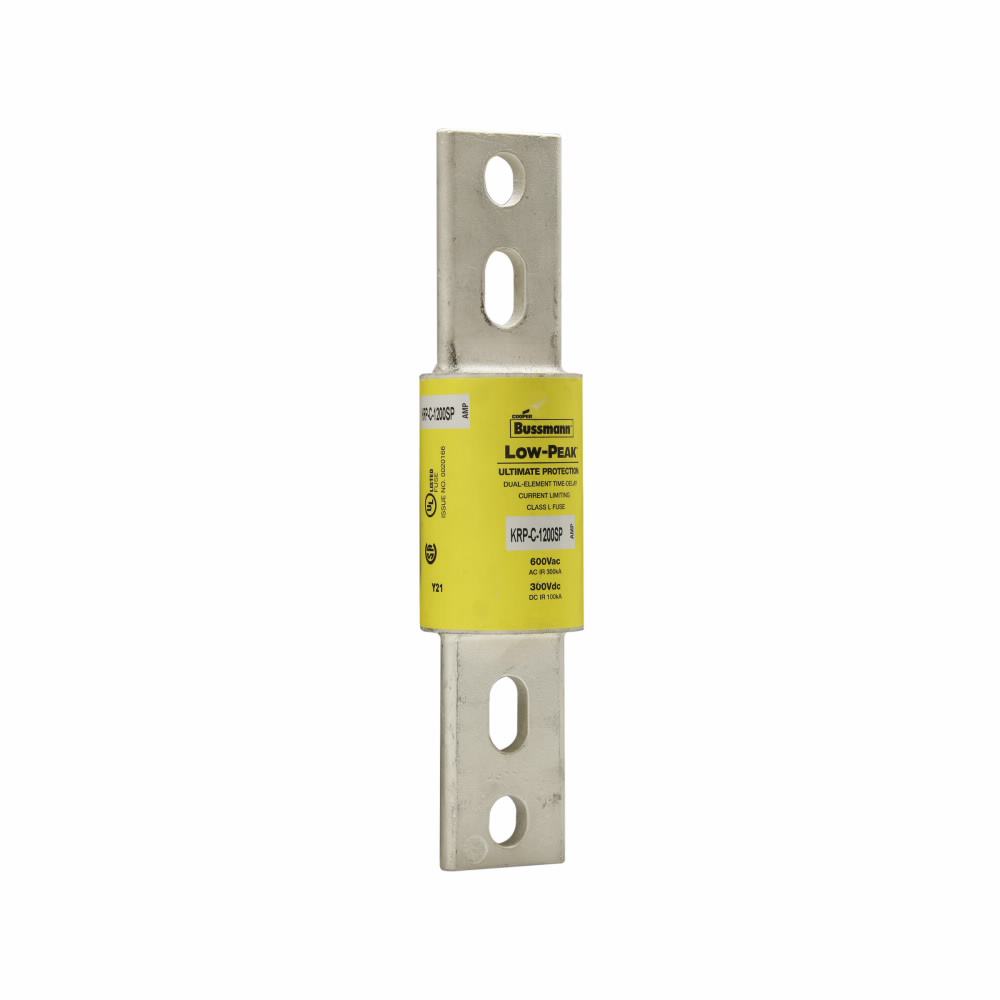

Eaton Bussmann Series KRP-C Fuse - Current-Limiting Time-Delay Fuse
The Eaton Bussmann Series KRP-C Class L fuse is a current-limiting, time-delay fuse designed for electrical distribution and protection applications. Rated for 600 Vac and 300 Vdc, this fuse provides reliable short-circuit and overload protection in large distribution switchboards, power panelboards, and large machinery disconnects. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring high-capacity system protection.
Specifications
- Amperage: 900 amperes
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupting Rating: 100 kiloamps (DC)
- Class: Class L
- Connection Type: Blade end
- Dimensions (LxWxH): 8.63 in x 2.53 in x 2.53 in
- Diameter: 2.5 inches
- Product Weight: 4.15 lbs
- Manufacturer Part #: KRP-C-900SP
Features
- Time-delay of 4 seconds minimum at 500% rated current allows closer sizing on large motor loads combined with Class L current limitation.
- Current-limiting action reduces bus bracing requirements and limits let-through energy during short-circuits.
- Selective coordination ratio of 2:1 within the Low-Peak fuse family prevents electrical shutdowns beyond the faulted circuit.
- High interrupting rating of 300kA RMS symmetrical AC and 100kA DC for broad system compatibility without obsolescence.
- Quality construction with 99.9% pure silver links for low watt loss and low operating temperature at normal current levels.
- O-ring seals maximize pressure build-up during current-limiting action and ensure filter retention.
- High-grade silica sand filler accelerates fuse response by quenching the fuse arc.
- Non-indicating design with bolted blade end connections for secure installation.
