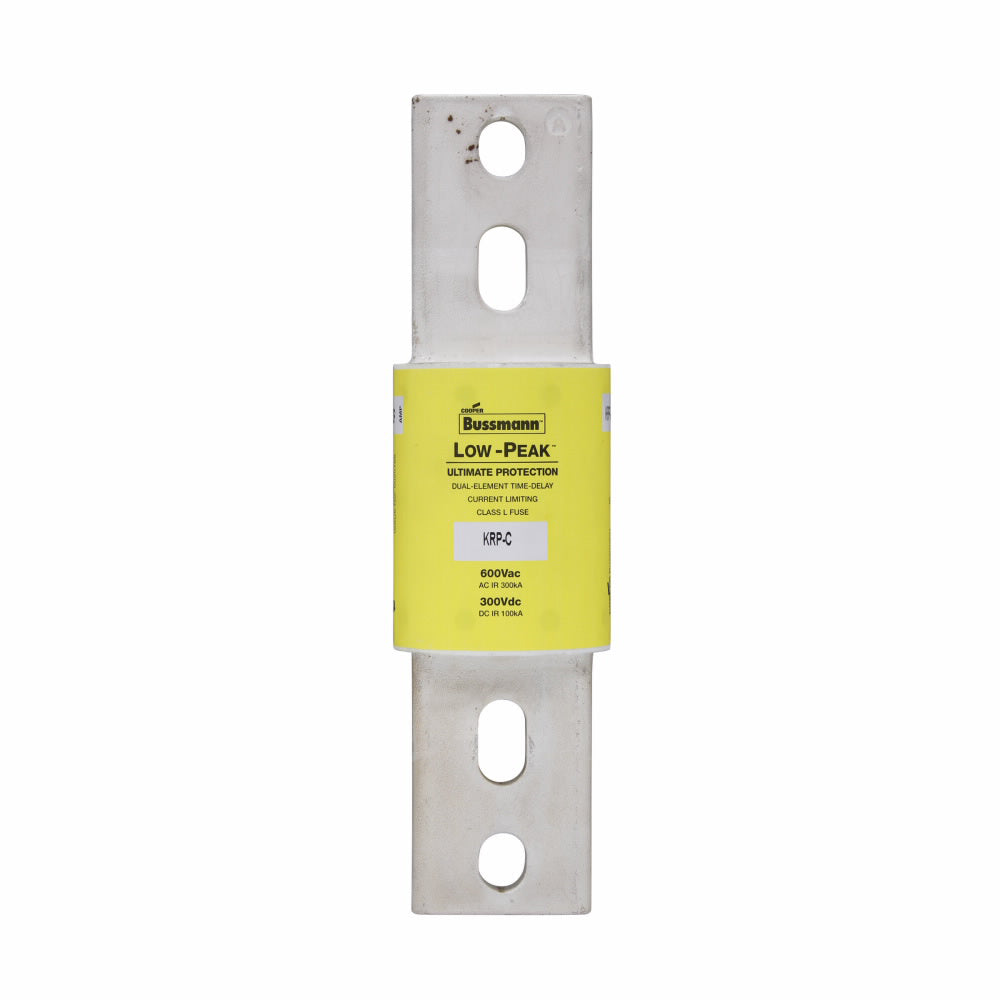

Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 1600A, 300 kAIC at 600 Vac, 100 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 3, Inch, Non Indicating, 4 S at 500%
SKU: #333827
Part: #KRP-C-1600SP
UPC: 051712605168
Eaton Bussmann Series KRP-C Fuse, Current-limiting, Time-delay, 600 Vac, 300 Vdc, 1600A, 300 kAIC at 600 Vac, 100 kAIC Vdc, Class L, Bolted blade end X bolted blade end, 1700, 3, Inch, Non Indicating, 4 S at 500%
SKU: #333827
Part: #KRP-C-1600SP
UPC: 051712605168
Total Price: $2,683.86 per each Sold in increments of 1 each
Next day delivery
Description
Eaton Bussmann Series KRP-C Fuse – Current-limiting Time-delay Fuse
The Eaton Bussmann Series KRP-C fuse is a Class L, current-limiting, time-delay fuse designed for high-capacity electrical protection in industrial and commercial applications. It is suitable for use in electrical distribution systems, including large distribution switchboards, power panelboards, and large machinery disconnects. This fuse provides reliable protection against overloads and short circuits with interrupting ratings suitable for both AC and DC systems, making it an essential component for electrical distributors and switchgear suppliers.
Specifications
- Voltage Rating: 600 Vac, 300 Vdc
- Amperage: 1600 amperes
- Interrupting Rating: 100 kiloamps (DC), 300 kiloamps (AC RMS symmetrical)
- Class: Class L
- Connection Type: Blade end
- Dimensions (L x W x H): 10.75 in x 3.03 in x 3.03 in
- Diameter: 3 inches
- Product Weight: 5.72 lbs
- Manufacturer Part Number: KRP-C-1600SP
Features
- Time-delay of 4 seconds at 500% rated current allows closer sizing on large motor loads
- Selective coordination ratio of 2:1 within Low-Peak fuse family to prevent extended electrical shutdowns
- High interrupting rating of 300kA RMS symmetrical for AC and 100kA for DC ensures compatibility with high fault current systems
- Quality construction with 99.9% pure silver links provides low watt loss and low operating temperatures
- Current-limiting action reduces bus bracing requirements
- O-ring seals maximize pressure build-up during current-limiting action and ensure filter retention
- High-grade silica sand filler accelerates fuse response to short circuits by quenching the fuse arc
- UL Listed, CSA Certified, RoHS compliant, and CE marked
