Eaton Bussmann series FRS-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #333645
Part: #FRS-R-30
UPC: 051712508346
Eaton Bussmann series FRS-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #333645
Part: #FRS-R-30
UPC: 051712508346
Description

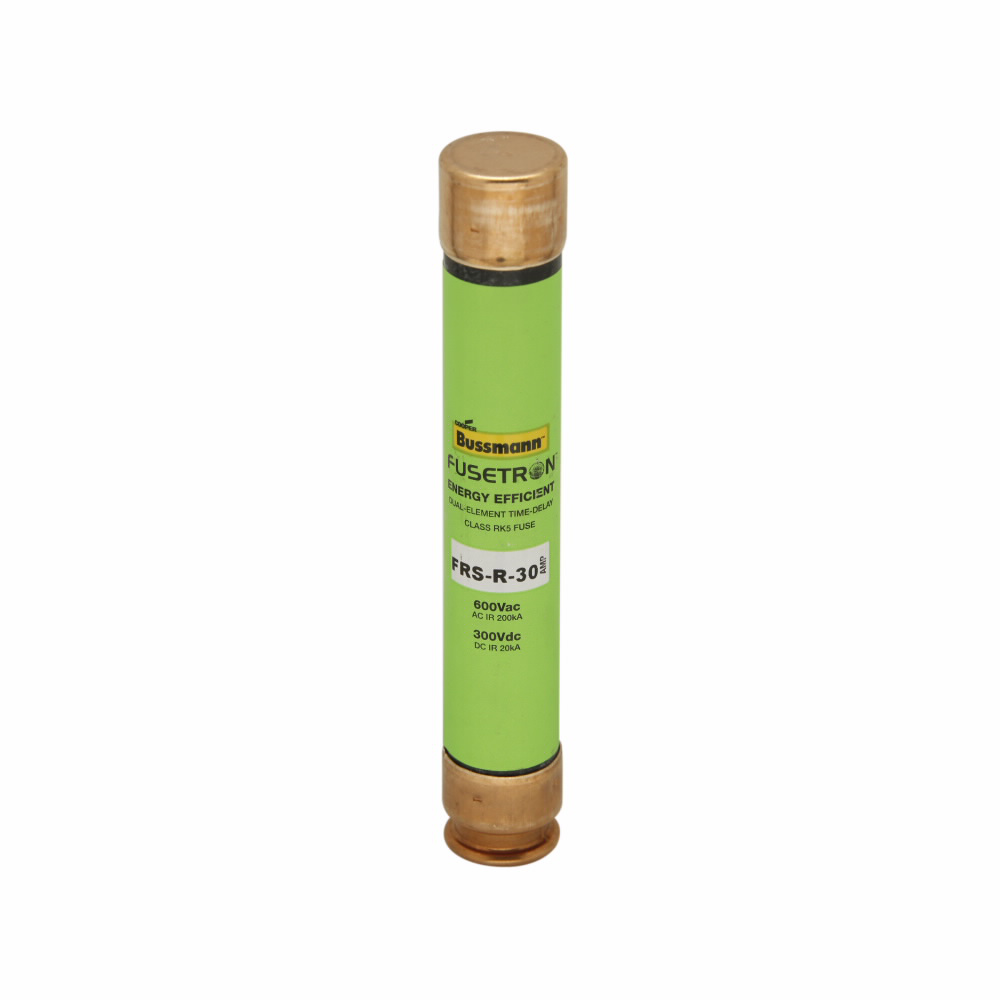

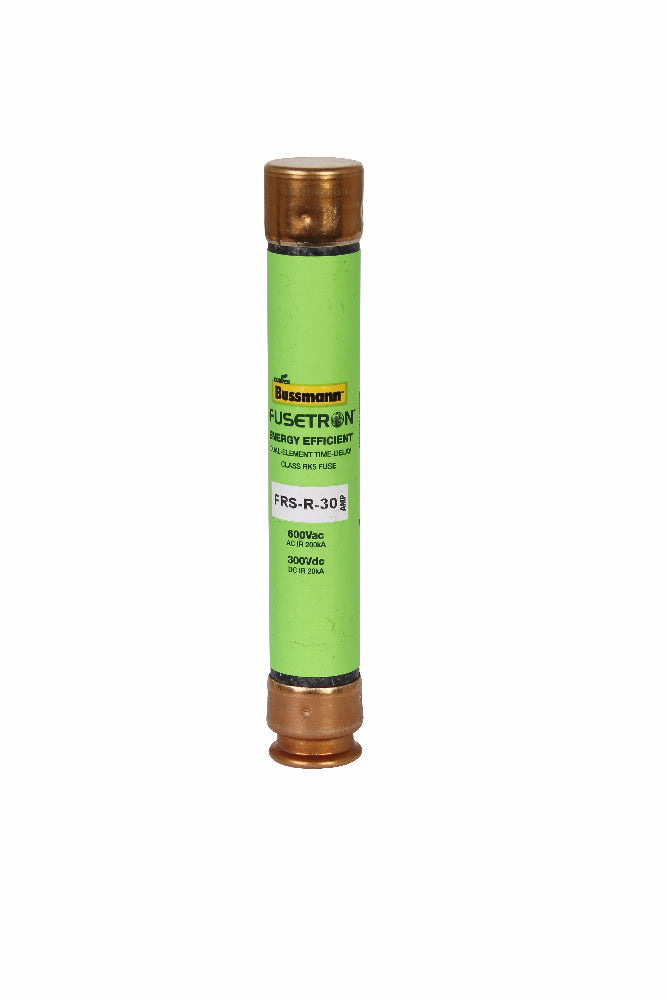

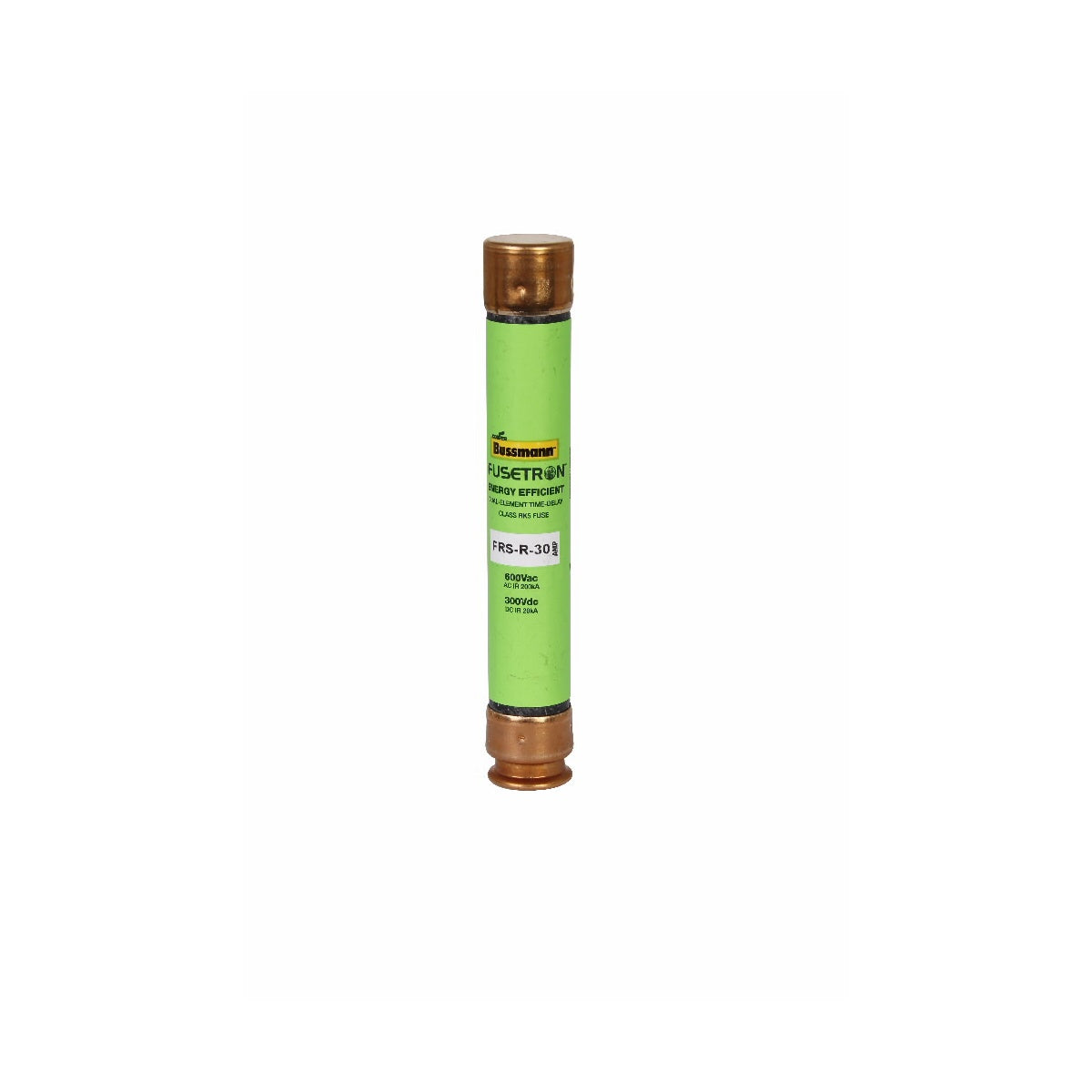

Eaton Bussmann Series FRS-R 30 A Class RK5 Fuse
The Eaton Bussmann series FRS-R fuse is a Class RK5 dual-element, time-delay fuse designed for advanced protection in electrical distribution systems. Rated for 600 Vac and 300 Vdc, this 30 amp fuse provides reliable motor overload, ground fault, and short-circuit protection. It is suitable for applications requiring energy-efficient fuse solutions, including lighting solutions, wire and cable protection, and switchgear systems.
Specifications
- Amperage: 30 amperes
- Voltage Rating: 600 Vac, 300 Vdc
- Class: Class RK5
- Interrupting Rating: 200 kA at 600 V, 20 kA at 300 Vdc
- Connection Type: Ferrule end x ferrule end
- End Type: Ferrule
- Dimensions (L x W x H): 11.63 in x 2.34 in x 2.34 in
- Product Weight: 2.25 lbs
- Manufacturer Part Number: FRS-R-30
- UPC: 051712508346
Features
- Dual-element design provides superior time-delay performance for motor and transformer protection
- 10-second minimum time delay at 500% of rated current
- Energy efficient fuse with current-limiting capability to protect downstream components from high fault currents
- Enables closer fuse sizing, reducing the need for larger, more costly switches and panels
- UL Listed and CSA Certified for Class RK5 fuse applications
- Provides motor running backup protection and guards against overloads and single-phasing
