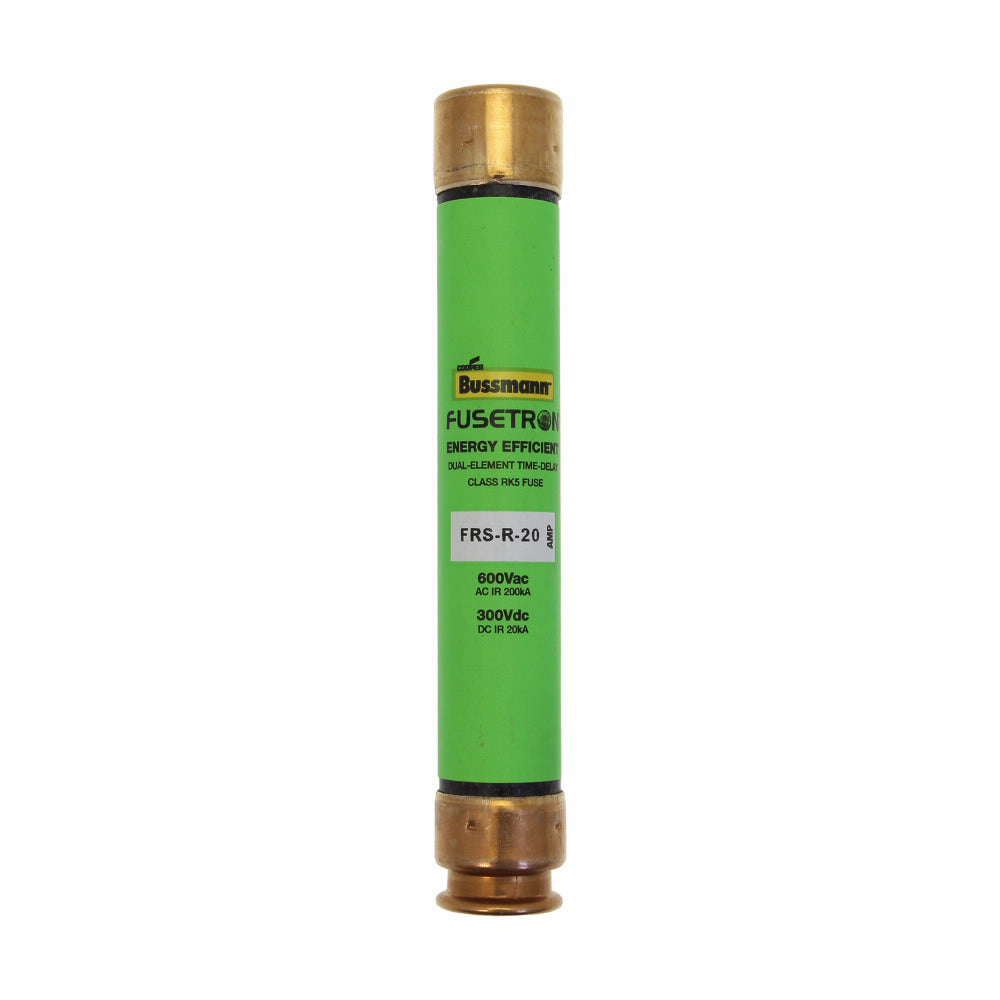

Eaton Bussmann series FRS-R fuse, 20 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #333635
Part: #FRS-R-20
UPC: 051712508322
Eaton Bussmann series FRS-R fuse, 20 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
SKU: #333635
Part: #FRS-R-20
UPC: 051712508322
Description
Eaton Bussmann series FRS-R fuse, 20 A – Class RK5 Time-Delay Fuse
The Eaton Bussmann series FRS-R fuse is a Class RK5 dual-element, time-delay fuse designed for advanced protection in electrical distribution and switchgear applications. Rated for 600 Vac and 300 Vdc, it provides motor overload, ground fault, and short-circuit protection with energy-efficient current-limiting capabilities. This fuse is suitable for use in circuits subject to temporary motor overloads and surge currents, making it a reliable component for electrical distributors and lighting solutions requiring dependable wire and cable protection.
Specifications
- Amperage: 20 amperes
- Voltage Rating: 600 Vac, 300 Vdc
- Class: Class RK5
- Interrupting Rating: 200 kA at 600 V, 20 kA at 300 Vdc
- Connection Type: Ferrule end x ferrule end
- Dimensions (L x W x H): 9.63 in x 1.61 in x 1.61 in
- Time-Delay: Minimum 10 seconds at 500% of rated current
- Manufacturer Part Number: FRS-R-20
Features
- Dual-element design provides superior time-delay performance for motor and transformer protection
- Allows closer fuse sizing, enabling use of smaller, less costly switches and panels
- Energy-efficient current limiting helps protect downstream components from high fault currents
- Provides motor running backup protection without additional cost
- UL Listed, CSA Certified, and CE compliant for broad industrial applications
