Eaton Bussmann series FRN-R fuse, 60 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
SKU: #333608
Part: #FRN-R-60
UPC: 051712101813
Eaton Bussmann series FRN-R fuse, 60 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 250 V,20 kAIC at 125 Vdc, Standard, 250 V, 125 Vdc
SKU: #333608
Part: #FRN-R-60
UPC: 051712101813
Description

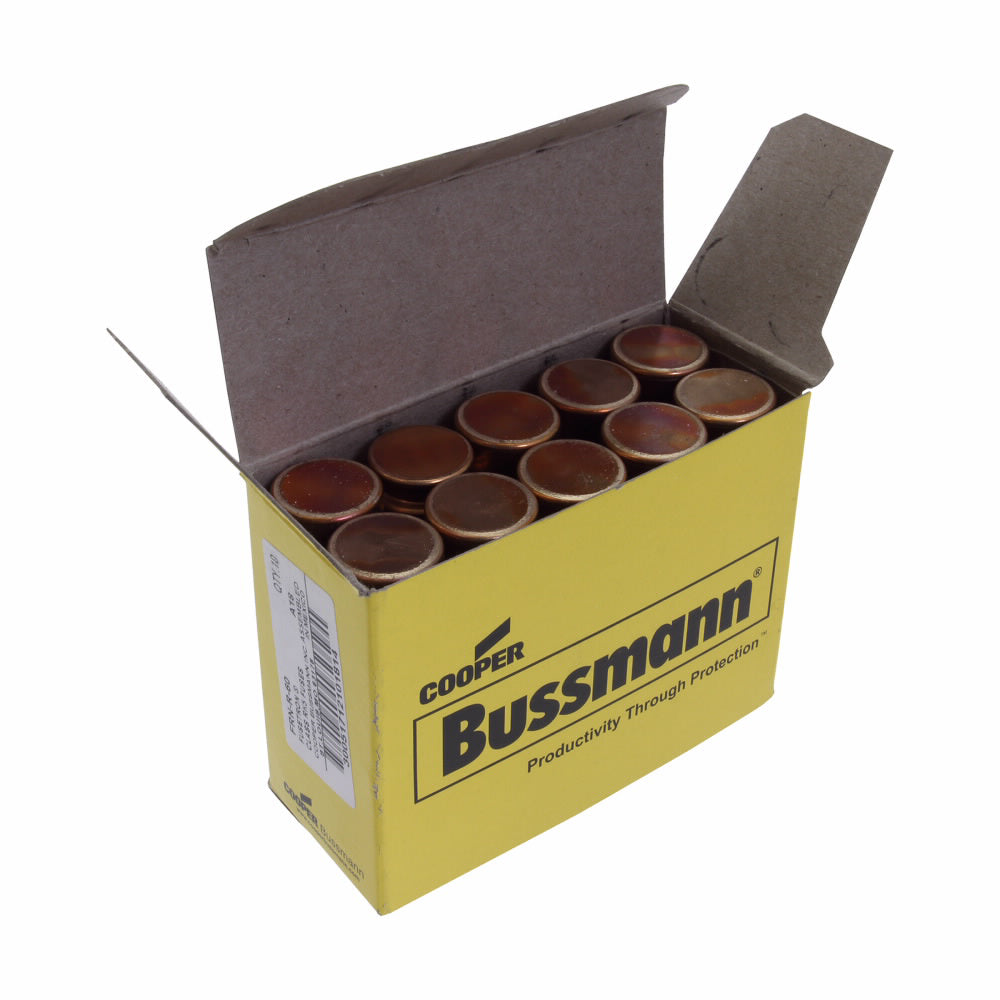

Eaton Bussmann Series FRN-R Fuse 60A Class RK5 Dual Element Time-Delay Fuse
The Eaton Bussmann series FRN-R fuse is a Class RK5 dual-element, time-delay fuse designed for electrical protection in industrial and commercial applications. It provides reliable motor overload, ground fault, and short-circuit protection suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers. This fuse supports circuits subject to temporary motor overloads and surge currents, ensuring both short-circuit and overload protection with a 10-second delay at 500% of rated current.
Specifications
- Amperage: 60 amperes
- Voltage Rating: 250 Vac, 125 Vdc
- Interrupting Rating: 200 kA at 250 V, 20 kA at 125 Vdc
- Class: Class RK5
- Connection Type: Ferrule end x ferrule end
- Dimensions (L x W x H): 2.59 in x 2.59 in x 2.59 in
- Time-Delay: Minimum 10 seconds at 500% of rated current
- Manufacturer Part Number: FRN-R-60
- Product Weight: 3.3 lbs
Features
- Dual-element design provides motor overload, ground fault, and short-circuit protection
- Protects motors from burnout due to overloads and single-phasing on three-phase systems
- Time-delay feature allows temporary motor overloads and surge currents without nuisance blowing
- Helps simplify and improve blackout prevention through selective coordination
- Overload element holds overloads five times greater than fuse rating for a minimum of ten seconds
