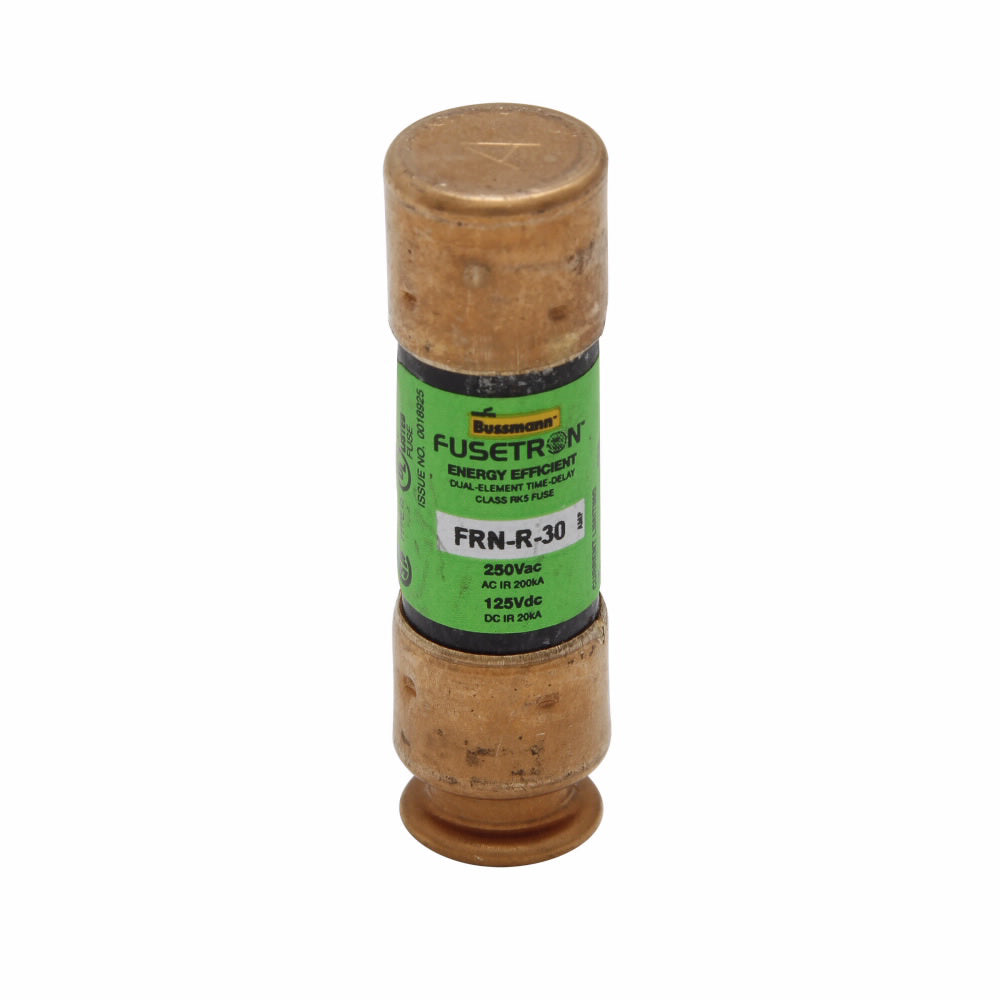

Eaton Bussmann series FRN-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
SKU: #333567
Part: #FRN-R-30
UPC: 051712101769
Eaton Bussmann series FRN-R fuse, 30 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
SKU: #333567
Part: #FRN-R-30
UPC: 051712101769
Description
Eaton Bussmann FRN-R-30 Fuse - Class RK5 Electrical Protection
The Eaton Bussmann series FRN-R-30 is a Class RK5 dual-element, time-delay fuse designed for advanced electrical protection in industrial and commercial applications. It is suitable for use in electrical distribution systems requiring reliable overload, ground fault, and short-circuit protection. This fuse is ideal for safeguarding motors and switchgear against burnout caused by overloads and single-phasing conditions, making it a critical component for electrical distributors and lighting solutions providers dealing with wire and cable protection and switchgear supply.
Specifications
- Amperage: 30 amperes
- Voltage Rating: 250 Vac, 125 Vdc
- Interrupt Rating: 200 kiloamps at 250 V, 20 kiloamps at 125 Vdc
- Class: Class RK5
- Dimensions (L x W x H): 3 in x 0.81 in x 0.81 in
- Connection Type: Ferrule end x ferrule end
- Product Weight: 1.95 lbs
- Manufacturer Part Number: FRN-R-30
- UPC: 051712101769
Features
- Dual-element fuse provides both short-circuit and overload protection with time-delay capability
- Time-delay of 8 seconds at 500% of rated current for 1/10-30A sizes, suitable for motor overload and surge currents
- Helps protect motors against burnout from overloads and single-phasing on three-phase systems
- Simplifies blackout prevention through selective coordination
- Current-limiting design reduces let-through current and enhances system protection
- Non-indicating fuse type for standard applications
- UL Listed, CSA Certified, and CE compliant for safety and regulatory standards
