Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on high-magnetic circuit breaker,70 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
SKU: #160209
Part: #BRH270
UPC: 786676373807
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on high-magnetic circuit breaker,70 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
SKU: #160209
Part: #BRH270
UPC: 786676373807
Description

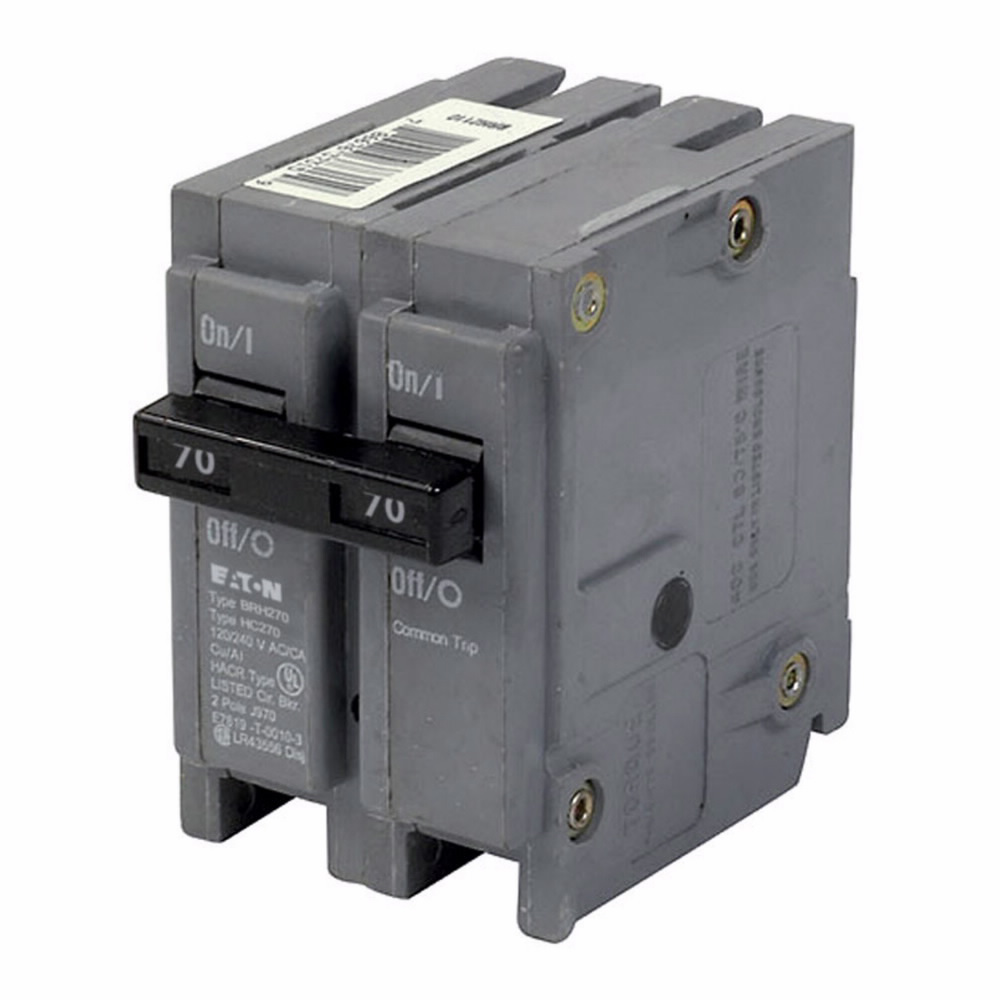

Eaton BR Thermal Magnetic Circuit Breaker – Circuit Protection
The Eaton BR thermal magnetic circuit breaker, Type BR 1-Inch plug-on high-magnetic circuit breaker, is designed for reliable circuit protection in residential and light commercial electrical distribution systems. This two-pole breaker is rated for 70 amperes with a 22 kA interrupting capacity (kAIC) at 120/240V, suitable for use in Type BR Loadcenters. It offers common breaker trip functionality and supports wire sizes from #4 to 1/0 AWG copper or aluminum conductors, making it compatible with a range of wire and cable installations. As a product from a leading electrical distributor and switchgear supplier, it integrates seamlessly into lighting solutions and wire and cable systems requiring dependable overcurrent protection.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BRH270
- Amperage: 70 amperes
- Number of Poles: 2
- Voltage Rating: 120/240 V
- Interrupting Capacity: 22 kAIC
- Dimensions: 3 in (Height) x 2 in (Width) x 3 in (Length)
- Wire Size Range: #4 - 1/0 AWG Cu/Al
- Product Weight: 0.6 lbs
Features
- Thermal magnetic trip mechanism for reliable overload and short circuit protection
- Common breaker trip for coordinated disconnection of both poles
- Plug-on design for easy installation in Type BR Loadcenters
- High magnetic trip for fast reaction to short circuits
- Compatible with #4 to 1/0 AWG copper or aluminum wiring
- Compact 1-inch width for efficient panel space utilization
