Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on high-magnetic circuit breaker,30 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
SKU: #160194
Part: #BRH230
UPC: 786676373609
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on high-magnetic circuit breaker,30 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
SKU: #160194
Part: #BRH230
UPC: 786676373609
Description

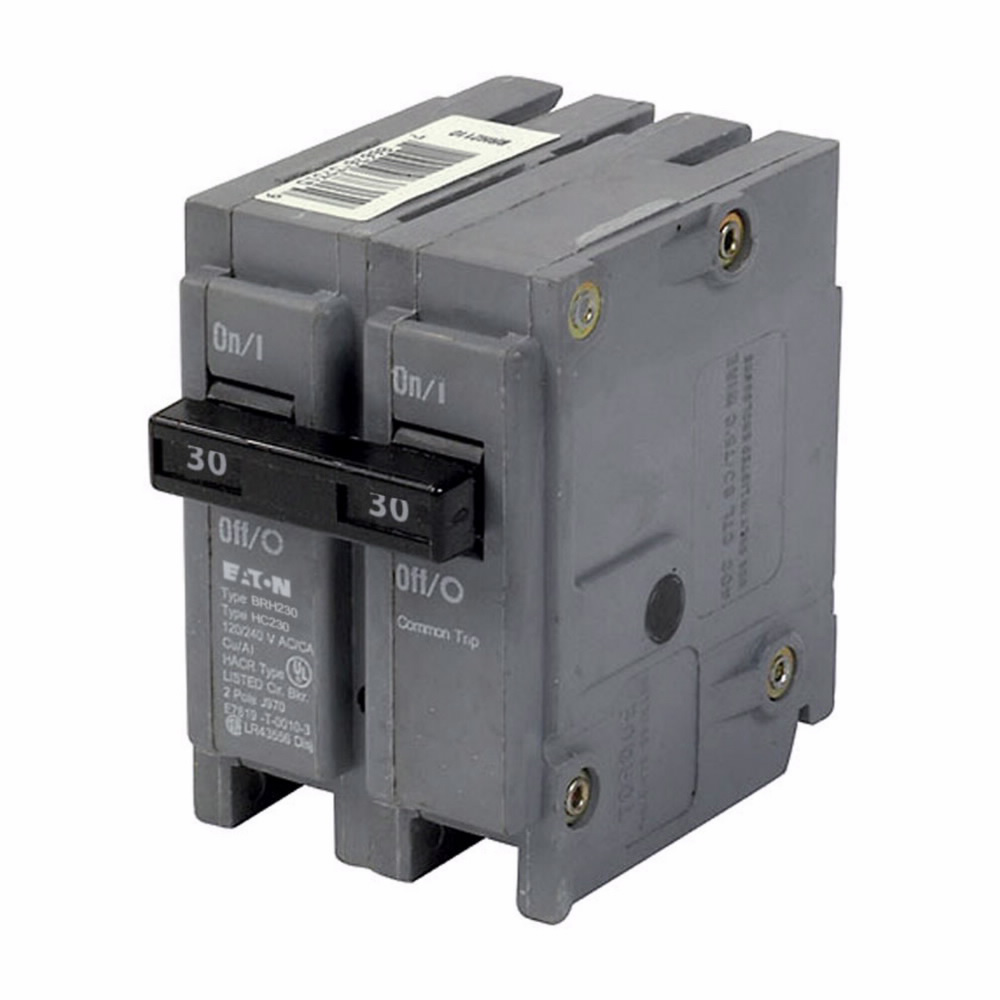

Eaton BR Thermal Magnetic Circuit Breaker – 30 Amp Two-Pole 120/240V
The Eaton BR thermal magnetic circuit breaker is designed for reliable electrical protection in residential and light commercial applications. This two-pole, 30-amp breaker provides high magnetic trip capability and is suitable for use in Type BR Loadcenters. It features a common breaker trip mechanism, ensuring simultaneous disconnection of both poles for enhanced safety. Ideal for electrical distributors and switchgear suppliers, this breaker supports wiring sizes from #14 to 4 AWG copper or aluminum conductors, and withstands a short circuit current rating of 22 kAIC at 120/240 volts.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BRH230
- Amperage: 30 amperes
- Number of Poles: 2
- Voltage Rating: 120/240 V
- Interrupting Rating: 22 kAIC
- Wire Size Range: #14–4 AWG Cu/Al
- Dimensions (W x H x D): 2 in x 3 in x 3 in
- Product Weight: 0.6 lbs
Features
- Thermal magnetic trip curve for precise overload and short circuit protection
- Common breaker trip for simultaneous pole disconnection
- 1-inch plug-on mounting for quick and secure installation in Type BR Loadcenters
- Compatible with #14–4 AWG copper or aluminum wiring
- UL listed and CSA certified for safety compliance
- High magnetic trip setting to accommodate circuits with high inrush currents
