Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker clamshell pack,Clamshell pack,100 A,42 kAIC,Two-pole,120/240V,BR,Common breaker trip,#4-1/0 AWG Cu/Al,Q30,BR,Type BR Loadcenters
SKU: #159554
Part: #BR2100CS
UPC: 782116630523
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker clamshell pack,Clamshell pack,100 A,42 kAIC,Two-pole,120/240V,BR,Common breaker trip,#4-1/0 AWG Cu/Al,Q30,BR,Type BR Loadcenters
SKU: #159554
Part: #BR2100CS
UPC: 782116630523
Description

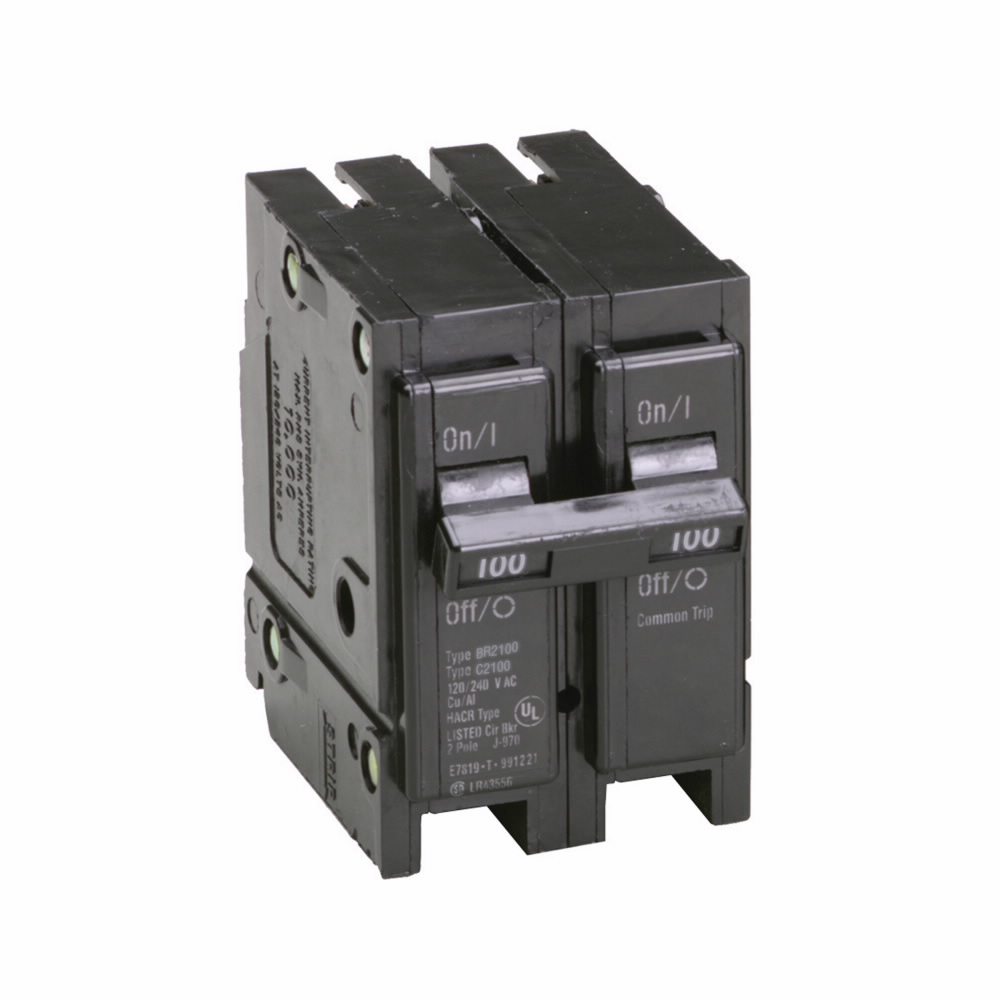

Eaton BR Thermal Magnetic Circuit Breaker – Two-Pole 100 Ampere Circuit Breaker
The Eaton BR thermal magnetic circuit breaker is designed for reliable electrical protection in residential and light commercial applications. It is a two-pole, 100 ampere breaker with a 42 kiloamp interrupt rating, suitable for 120/240V systems. This breaker is compatible with BR type loadcenters and provides common trip functionality for simultaneous pole disconnection, enhancing safety and compliance. Ideal for electrical distributors and switchgear suppliers, it supports wire sizes from #4 to 1/0 AWG copper or aluminum conductors, making it a versatile component in lighting solutions and wire and cable distribution systems.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR2100CS
- Amperage: 100 amperes
- Number of Poles: 2
- Interrupt Rating: 42 kiloamps
- Voltage Rating: 120/240V
- Dimensions (W x H x L): 2 in x 3 in x 3 in
- Product Weight: 0.5 lbs
- Wire Size Range: #4 to 1/0 AWG Cu/Al
Features
- Thermal magnetic trip mechanism for accurate overload and short circuit protection
- Common trip design ensures simultaneous disconnection of both poles
- Plug-on mounting for quick and secure installation in BR loadcenters
- Compatible with Eaton BR type loadcenters and panelboards
- UL listed and CSA certified for safety and reliability
- Suitable for use in residential and light commercial electrical distribution
