Description

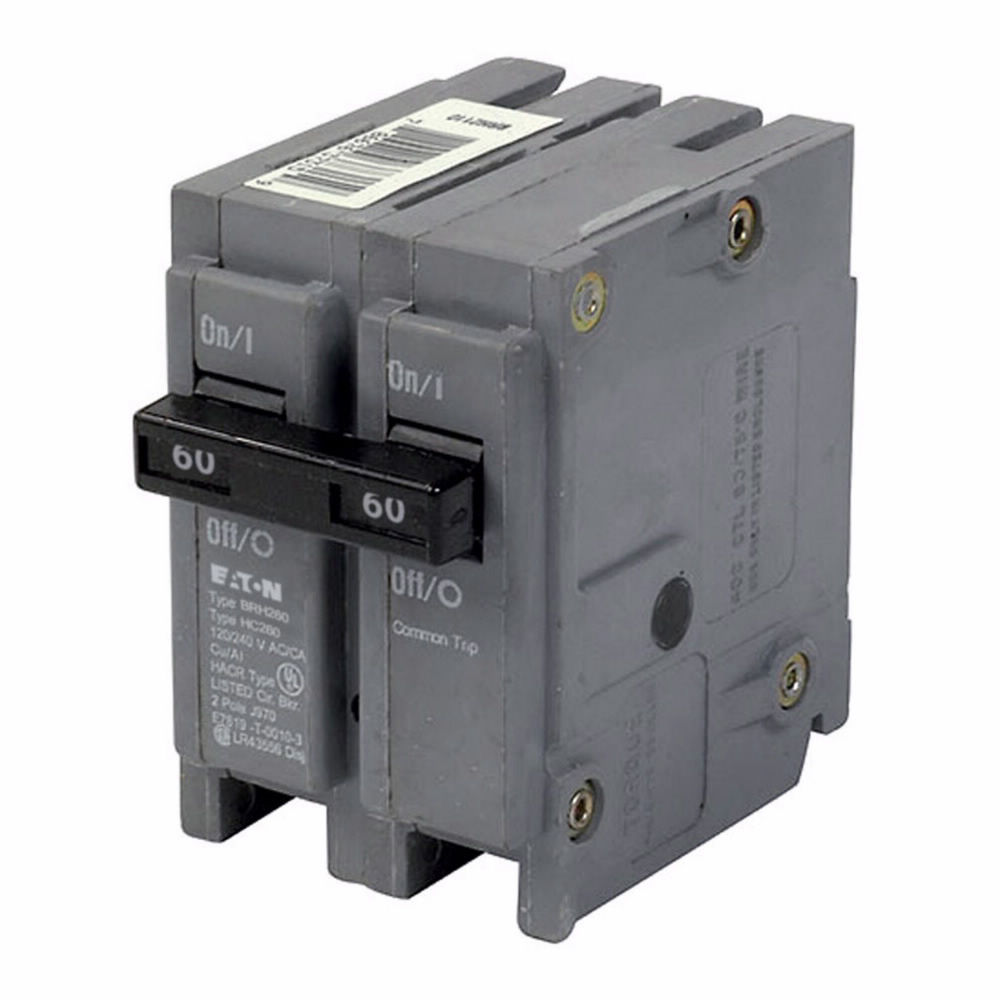

Eaton BR Thermal Magnetic Circuit Breaker 60A Two-Pole 120/240V
The Eaton BR thermal magnetic circuit breaker, model BRH260, is a 60 ampere, two-pole plug-on breaker designed for residential and light commercial electrical distribution. It is compatible with BRH and Type BR Loadcenters, providing reliable circuit protection and common breaker trip functionality. This breaker is suitable for use in wiring systems requiring protection for #4-1/0 AWG copper or aluminum conductors, offering a 22 kA interrupting rating at 120/240 volts.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BRH260
- Amperage: 60 amperes
- Number of Poles: 2
- Interrupting Rating: 22 kAIC
- Voltage Rating: 120/240 V
- Wire Size Range: #4-1/0 AWG Cu/Al
- Dimensions (W x H x D): 2.9 in x 2.5 in x 2 in
- Product Weight: 0.7 lbs
Features
- Thermal magnetic trip mechanism for accurate overload and short circuit protection
- Common breaker trip for simultaneous pole operation
- Plug-on design for easy installation in compatible Eaton BRH and Type BR Loadcenters
- Compatible with #4-1/0 AWG copper and aluminum wire
- 22 kA interrupting rating suitable for residential and light commercial applications
