Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,60 A,22 kAIC,Three-pole,240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
SKU: #160224
Part: #BRH360
UPC: 786676372756
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,60 A,22 kAIC,Three-pole,240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
SKU: #160224
Part: #BRH360
UPC: 786676372756
Description

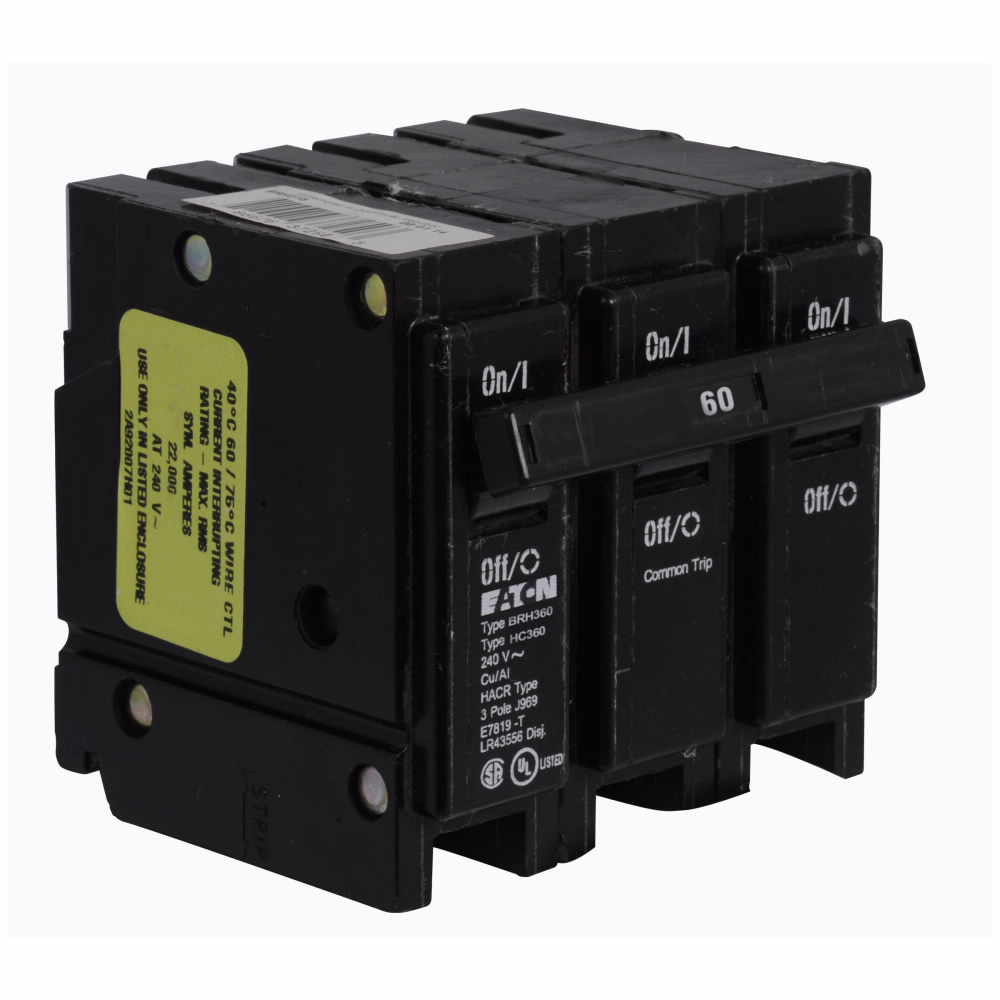

Eaton BR Thermal Magnetic Circuit Breaker - 60A Three-Pole 240V
The Eaton BR thermal magnetic circuit breaker, model BRH360, is a three-pole, 60 ampere breaker designed for use in Type BR loadcenters. It provides reliable electrical protection with a 22 kAIC interrupting rating and supports #4-1/0 AWG copper/aluminum wire. This 1-inch plug-on breaker is suitable for electrical distributors and switchgear suppliers seeking robust circuit protection solutions for residential and light commercial applications.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BRH360
- Product Weight: 2.0000 lbs
- Dimensions: 3 in (Width) x 3 in (Height) x 3 in (Length)
- Voltage: 240 V
- Amperage: 60 A
- Interrupting Rating: 22 kAIC
- Poles: Three-pole
- Wire Size Range: #4-1/0 AWG Cu/Al
- Type: Thermal Magnetic
- Breaker Style: 1-Inch Plug-on
Features
- Common breaker trip for simultaneous pole operation
- Plug-on design for quick and secure installation in Type BR loadcenters
- Thermal magnetic trip curve for reliable short-circuit and overload protection
- Compatible with BRH and Type BR loadcenters
- UL Listed and CSA Certified for safety and performance
