Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,100 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
SKU: #160181
Part: #BRH2100
UPC: 786676373906
Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,100 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
SKU: #160181
Part: #BRH2100
UPC: 786676373906
Total Price: $223.23 per each Sold in increments of 1 each
Description

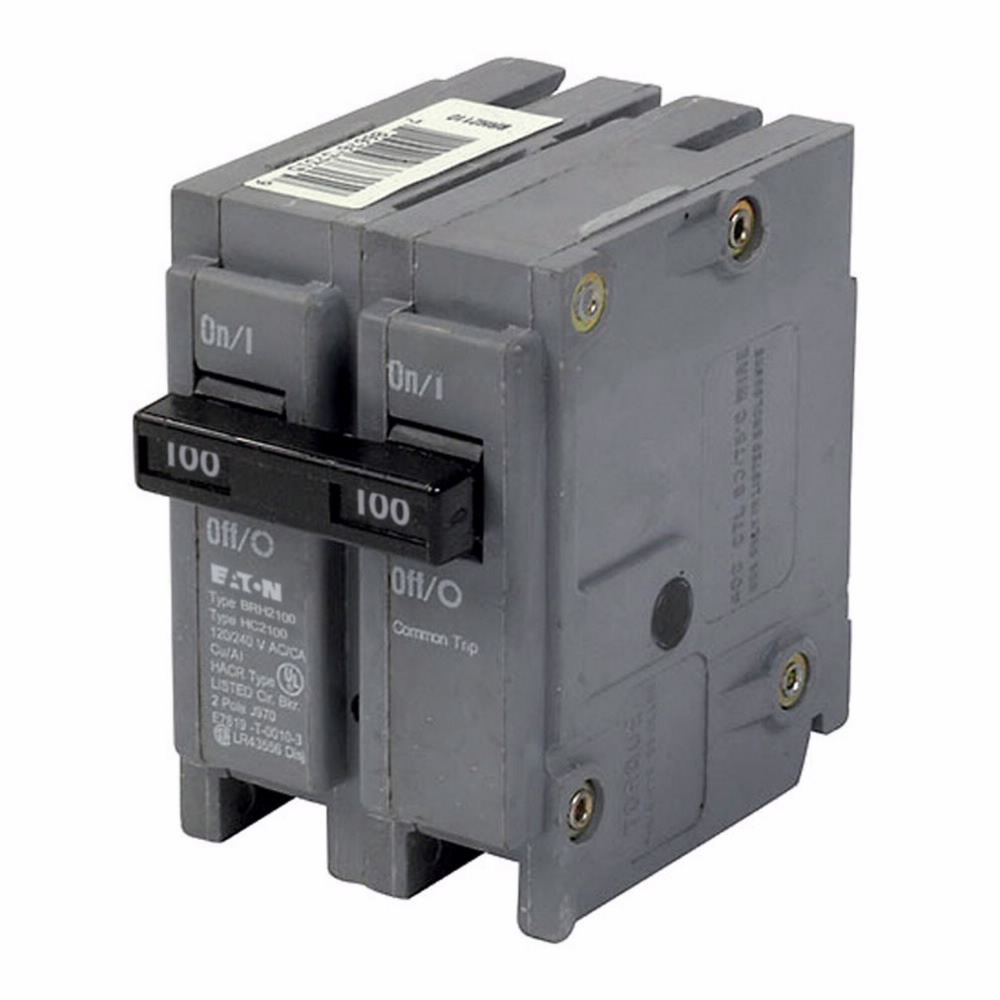

Eaton BR Thermal Magnetic Circuit Breaker - Two-Pole 100 Ampere Circuit Breaker
The Eaton BR thermal magnetic circuit breaker, model BRH2100, is a two-pole, 100 ampere rated device designed for use in Type BR Loadcenters. It provides reliable overcurrent protection with a 22 kA interrupting rating at 120/240V. Suitable for copper and aluminum conductors from #4 to 1/0 AWG, this 1-inch plug-on breaker features a common trip mechanism for simultaneous pole disconnection, ensuring safety and compliance in residential and light commercial electrical distribution systems. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring robust circuit protection.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BRH2100
- Amperage: 100 amperes
- Number of Poles: 2
- Voltage Rating: 120/240V
- Interrupting Rating: 22 kAIC
- Wire Size Range: #4-1/0 AWG Cu/Al
- Dimensions (W x H x L): 2.9 in x 2.5 in x 2 in
- Product Weight: 0.7 lbs
Features
- Thermal magnetic trip mechanism for reliable overcurrent protection
- Common breaker trip for simultaneous disconnection of both poles
- 1-inch plug-on mounting for easy installation in BR Loadcenters
- Compatible with copper and aluminum conductors (#4-1/0 AWG)
- Rated for 120/240V applications
- 22 kA interrupting capacity ensures safety in fault conditions
