Eaton BR thermal magnetic circuit breaker,Type BQ 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(2) Two-Pole 50 A,10 kAIC,Four-pole,120/240V,BQ,Independent,#14-4 AWG Cu/Al,Q28,BQ,Type BR Loadcenters
SKU: #159084
Part: #BQ250250
UPC: 786676371254
Eaton BR thermal magnetic circuit breaker,Type BQ 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(2) Two-Pole 50 A,10 kAIC,Four-pole,120/240V,BQ,Independent,#14-4 AWG Cu/Al,Q28,BQ,Type BR Loadcenters
SKU: #159084
Part: #BQ250250
UPC: 786676371254
Next day delivery
Description

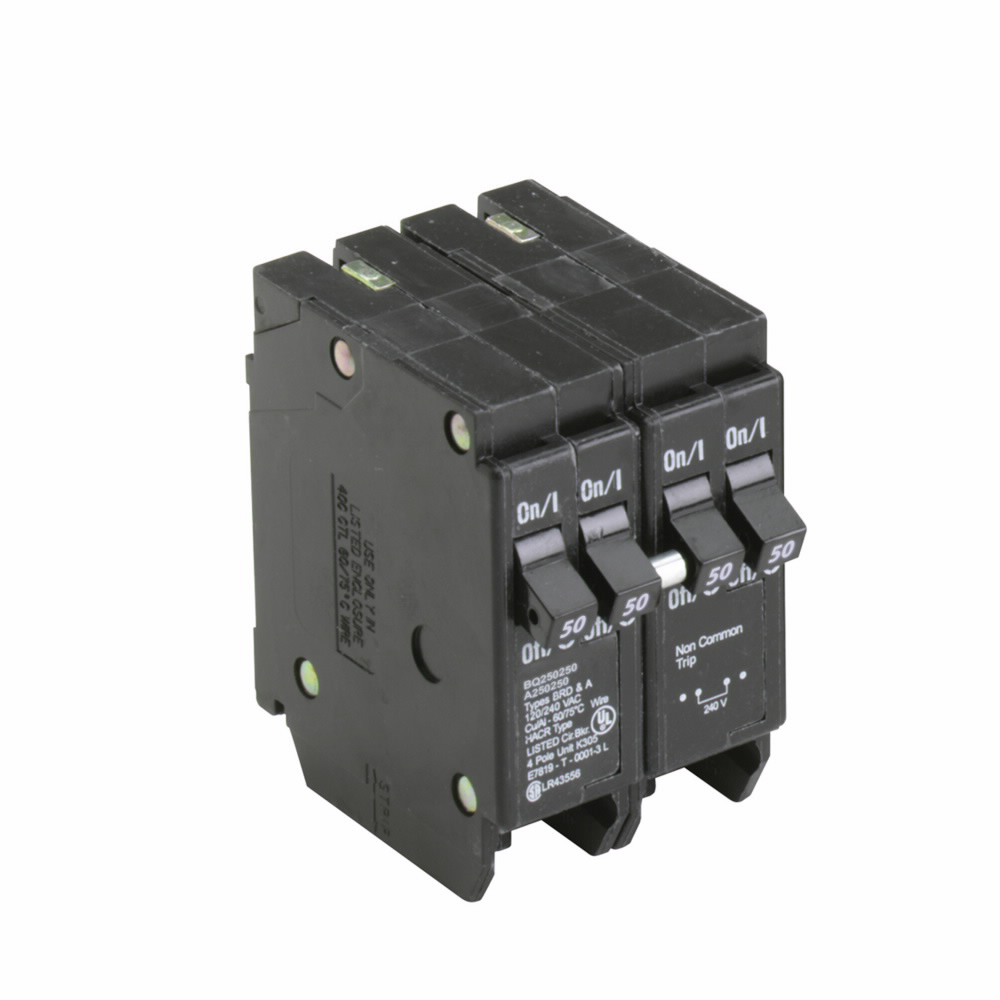

Eaton BR Thermal Magnetic Circuit Breaker - Type BQ 50 Amp 4-Pole 120/240V
The Eaton BR thermal magnetic circuit breaker, Type BQ, is designed for reliable electrical protection in residential and light commercial applications. This four-pole, 50-amp breaker provides overcurrent protection with a 10 kA interrupt rating, ideal for use in loadcenters requiring dependable circuit interruption. Featuring a 1-inch CTL plug-on design and rejection tab feature, it ensures secure, easy installation and compatibility with Eaton BR loadcenters.
Specifications
- Manufacturer: Eaton
- Type: BQ Circuit Breaker
- Amperage: 50 amperes
- Number of Poles: 4
- Interrupt Rating: 10 kiloamps
- Voltage Rating: 120/240 V
- Dimensions (W x H x D): 2 in x 3 in x 3 in
- UPC: 786676371254
- Manufacturer Part Number: BQ250250
- Product Weight: 0.9 lb
Features
- Thermal magnetic trip curve for reliable protection against overloads and short circuits
- Plug-on design with rejection tab for secure and straightforward installation
- Compatible with Eaton BR loadcenters
- Includes rejection tab feature to prevent improper installation
- Suitable for use with copper and aluminum wiring (#14-4 AWG Cu/Al)
