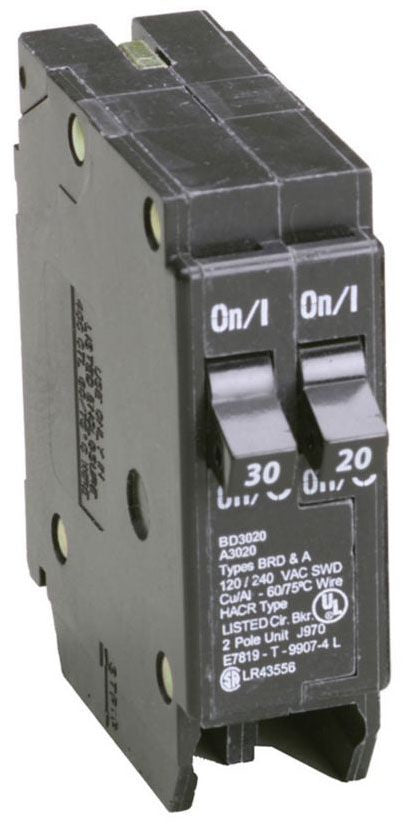

Eaton BR thermal magnetic circuit breaker,Type BD 1-Inch CTL plug-on breaker,Includes rejection tab feature,30-20 A,10 kAIC,Single-pole,120V,BD,#14-4 AWG Cu/Al,BD,Type BR Loadcenters
SKU: #158914
Part: #BD3020
UPC: 786676369459
Eaton BR thermal magnetic circuit breaker,Type BD 1-Inch CTL plug-on breaker,Includes rejection tab feature,30-20 A,10 kAIC,Single-pole,120V,BD,#14-4 AWG Cu/Al,BD,Type BR Loadcenters
SKU: #158914
Part: #BD3020
UPC: 786676369459
Description
Eaton BR Thermal Magnetic Circuit Breaker - Circuit Breaker for Electrical Distribution
The Eaton BR thermal magnetic circuit breaker, Type BD, is a 1-inch CTL plug-on breaker designed for reliable protection of electrical circuits in residential and light commercial applications. It includes a rejection tab feature for safety and compatibility, with a single-pole 120V configuration. This breaker is suitable for use in BD, Type BR Loadcenters and supports wire sizes from #14 to 4 AWG Cu/Al. With a 20 ampere rating and a 10 kAIC interrupt rating, it provides efficient circuit protection for branch circuits. Eaton, a trusted electrical distributor and switchgear supplier, manufactures this breaker to meet industry standards.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BD3020
- Amperage: 20 amperes
- Interrupt Rating: 10 kiloamps
- Voltage: 120V
- Poles: Single-pole
- Wire Size Range: #14-4 AWG Cu/Al
- Dimensions (WxHxL): 1 in x 3 in x 2 in
- Product Weight: 0.38 lbs
- UPC: 786676369459
Features
- Thermal magnetic trip mechanism for reliable circuit protection
- Plug-on design for quick and secure installation
- Rejection tab feature to prevent incorrect breaker installation
- Compatible with BD and Type BR Loadcenters
- Single-pole design suitable for 120V circuits
