Eaton BR Main Lug Loadcenter 200 A – Electrical Distributor Loadcenter

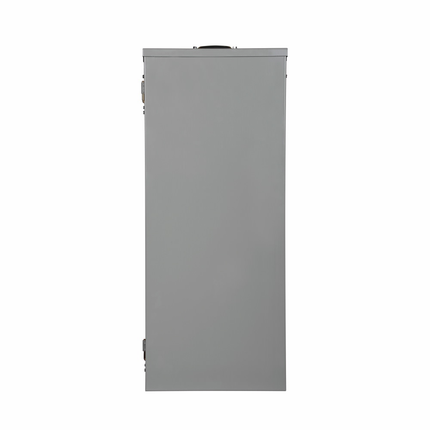

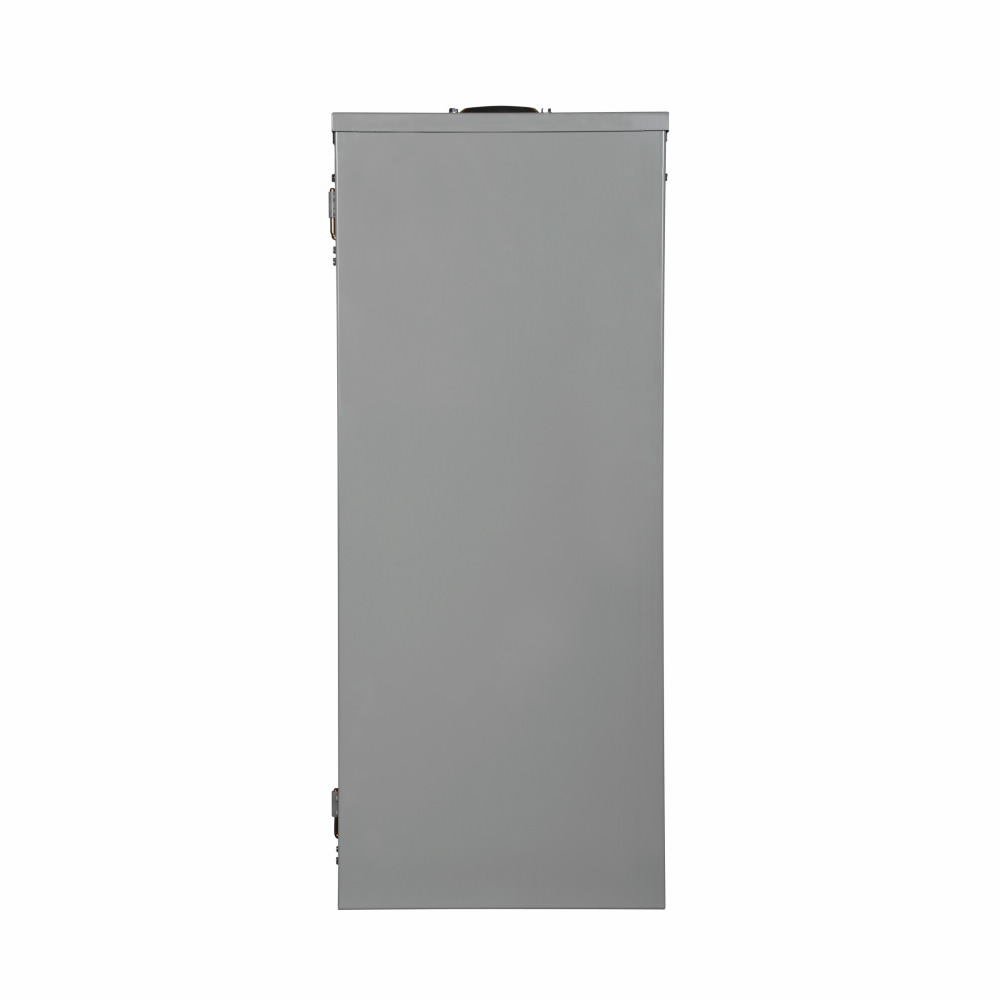

The Eaton BR main lug loadcenter is designed for three-phase electrical distribution in light commercial and industrial applications. It supports a 200 ampere rating with 42 circuits and 30 spaces, suitable for 208Y/120 or 240 V systems. This loadcenter features aluminum bus bars and a metallic NEMA 3R enclosure, making it suitable for both indoor and outdoor use. It is compatible with Type BR 1-inch breakers and offers a main lug design without feed-thru lugs, ideal for sub-panel or distribution applications where a main breaker is not required.

Specifications

• Manufacturer: Eaton
• Amperage: 200 amperes
• Number of Phases: 3
• Number of Circuits: 42
• Number of Spaces: 30
• Voltage: 208Y/120, 240 V
• Bus Material: Aluminum
• Enclosure Material: Metallic
• Enclosure Type: NEMA 3R
• Dimensions (W x H x D): 14.31 in x 39 in x 3.88 in
• Weight: 34.1 lbs
• Wire Size Range: #1 AWG to 300 kcmil Cu/Al
• Breaker Type Compatibility: Type BR 1-inch breakers
• Phase Configuration: Four-wire, three-phase

Features

• Main lug only design, no feed-thru lugs
• Durable metallic enclosure rated NEMA 3R for rainproof protection
• Aluminum bus bars providing corrosion resistance and conductivity
• Supports up to 42 circuits with 30 breaker spaces
• Compatible with Eaton Type BR branch breakers for easy installation and maintenance
• Designed for 208Y/120 or 240 V three-phase power distribution

Downloads & Links

• Type Br 3-Phase Loadcenters
• Loadcenters And Circuit Breakers
• 3-Phase Loadcenter Program
• Eatons Volume 1-Residential And Light Commercial
• Dimensional Drawing - Br 1 Loadcenter, Main Lug Only, Outdoor Nema 3R, 120/240 Vac, 3 Phase
