Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,100 A,9,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,BR,Surface,3 Circuits,Three-pole,3 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#14-1/0 AWG Cu/Al
SKU: #157640
Part: #3BR3L100S
UPC: 782114886366
Eaton BR main lug loadcenter,No feed-thru lugs,Main lug,100 A,9,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,BR,Surface,3 Circuits,Three-pole,3 Spaces,Four-wire,Three-phase,Type BR 1-inch breakers,208 Y/120, 240 V,#14-1/0 AWG Cu/Al
SKU: #157640
Part: #3BR3L100S
UPC: 782114886366
Next day delivery
Description

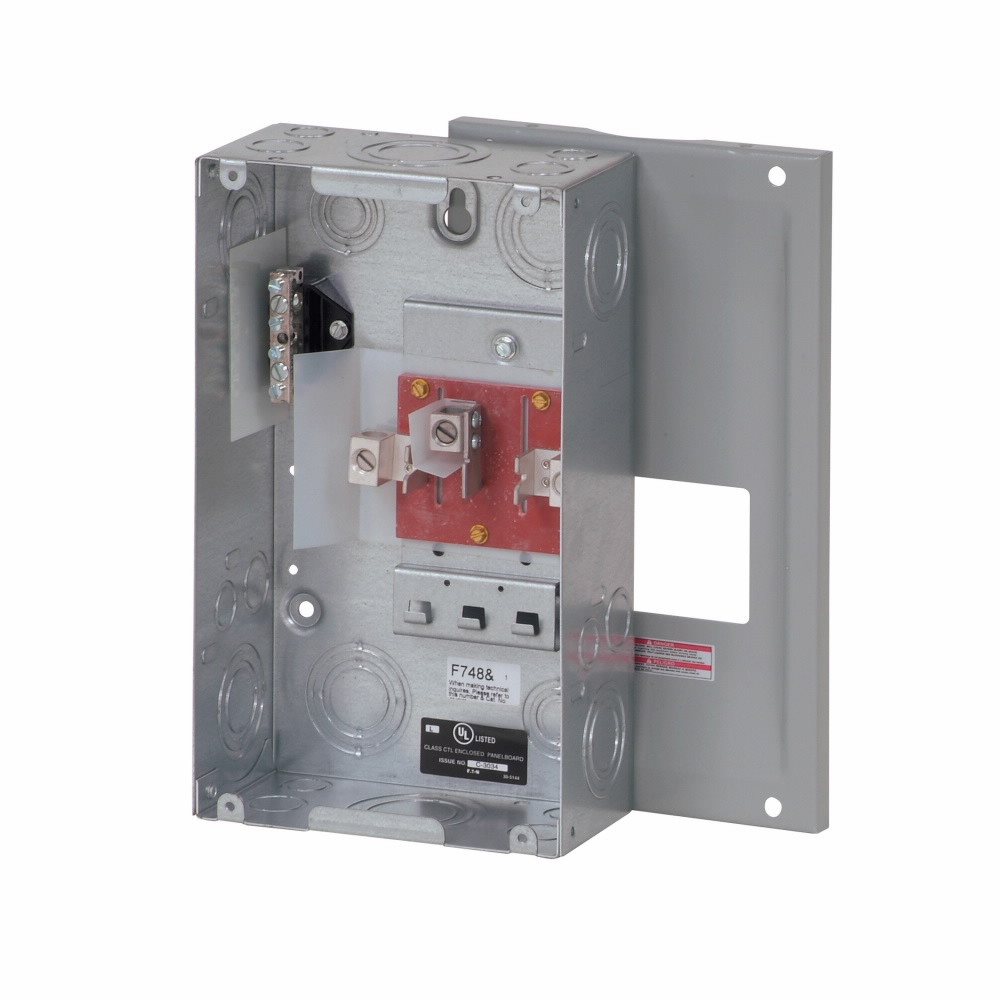

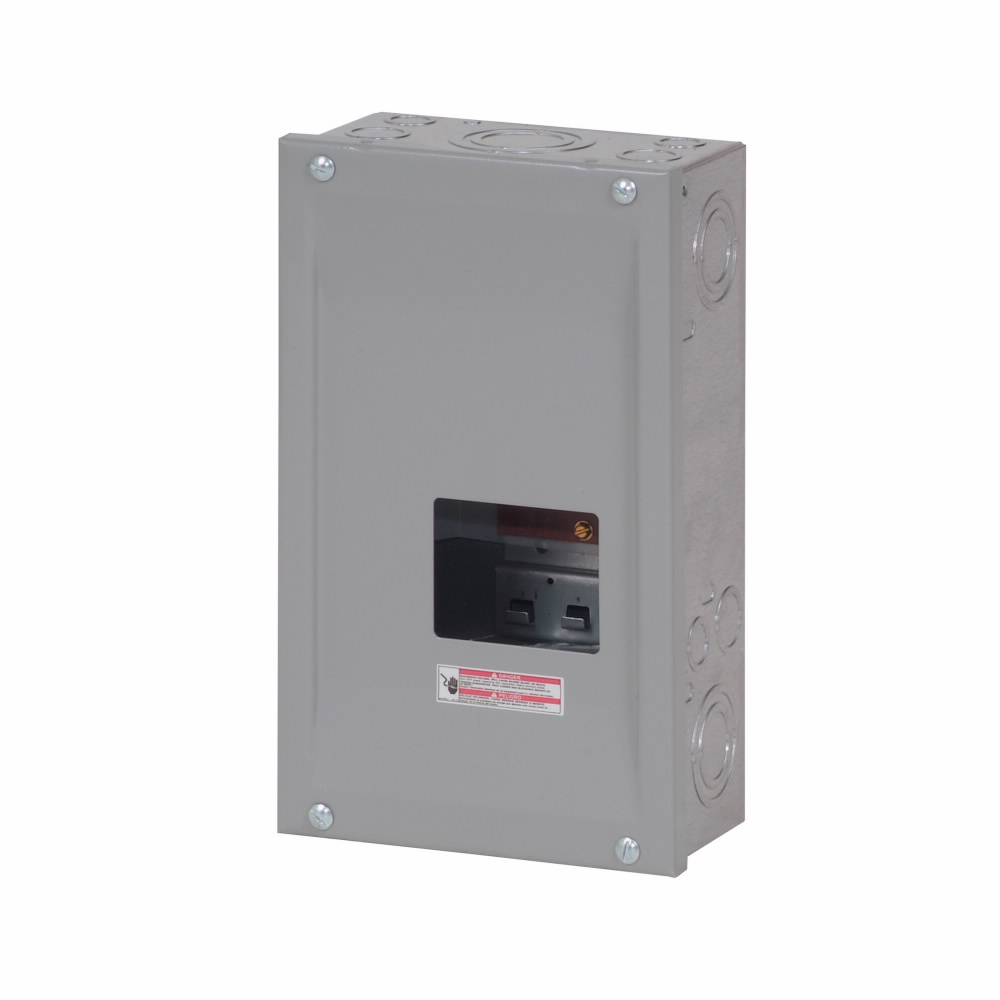

Eaton BR Main Lug Loadcenter 100 A – Electrical Distributor Load Center
The Eaton BR main lug loadcenter is a compact, surface-mounted electrical distribution panel designed for three-phase applications at 208Y/120 or 240 V. It features a 100-ampere main lug, aluminum bus material, and a metallic NEMA 1 enclosure, making it suitable for indoor use in commercial and light industrial wiring systems. This loadcenter supports up to 3 circuits and 3 spaces, accommodating Type BR 1-inch breakers. It is engineered for wire sizes ranging from #14 to 1/0 AWG copper or aluminum, providing reliable power distribution in three-phase, four-wire systems.
Specifications
- Manufacturer: Eaton
- Amperage: 100 amperes
- Number of Phases: 3
- Number of Circuits: 3
- Number of Spaces: 3
- Bus Material: Aluminum
- Mounting Type: Surface
- Interrupt Rating: 10 kiloamps (kAIC)
- Enclosure Material: Metallic
- Enclosure Type: NEMA 1
- Voltage: 208Y/120, 240 V
- Wire Size Range: #14–1/0 AWG Cu/Al
- Dimensions (HxWxD): 3.8 in x 7.3 in x 12.6 in
- Weight: 5.39 lbs
- Manufacturer Part Number: 3BR3L100S
- UPC: 782114886366
Features
- Main lug only design with no feed-thru lugs
- Supports Type BR 1-inch breakers for flexible circuit protection
- Surface-mounted installation for easy access and wiring
- Metallic enclosure provides durability and protection for indoor environments
- Aluminum bus for corrosion resistance and efficient electrical conductivity
- 10 kAIC interrupt rating ensures protection against short-circuit faults
- Four-wire, three-phase configuration suitable for commercial and industrial electrical distribution
- Cover included for safety and compliance with electrical codes
