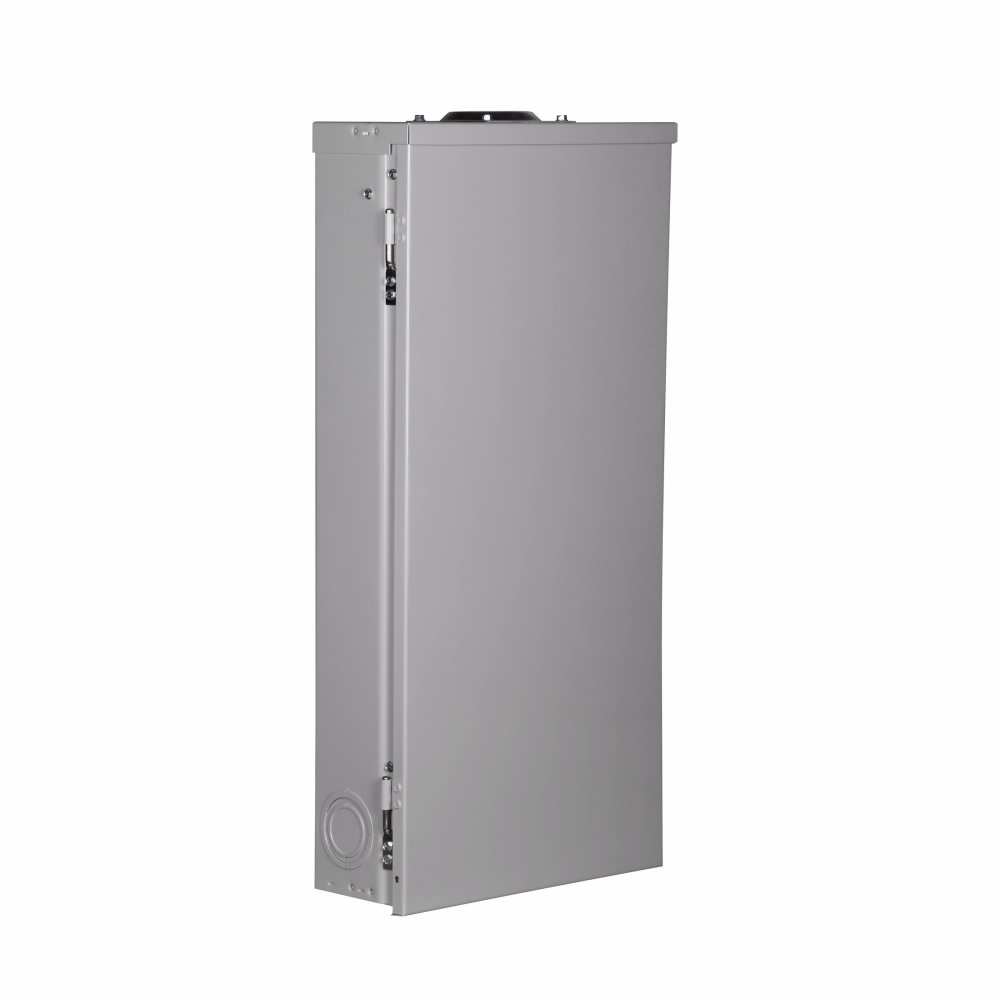

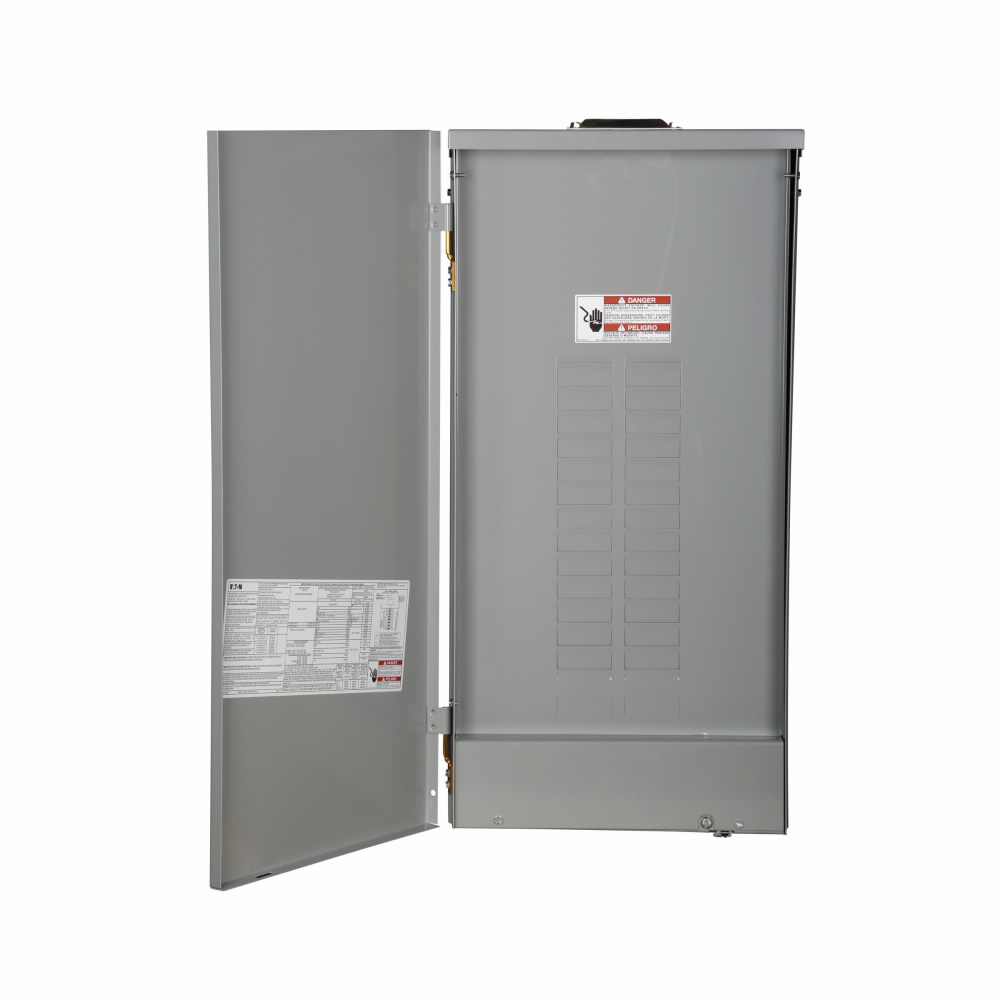

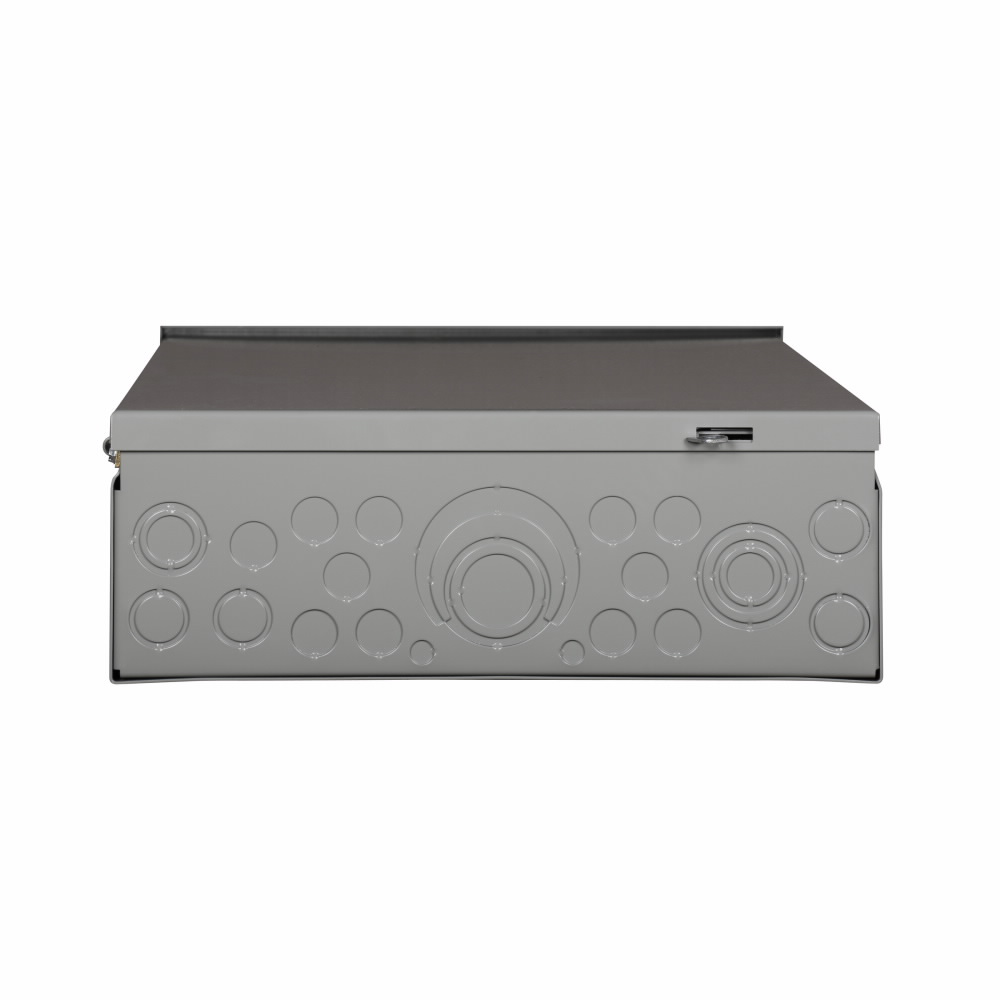

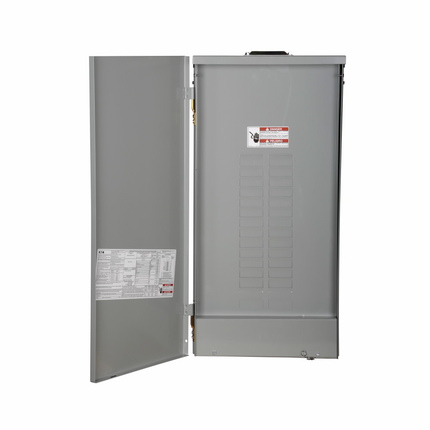

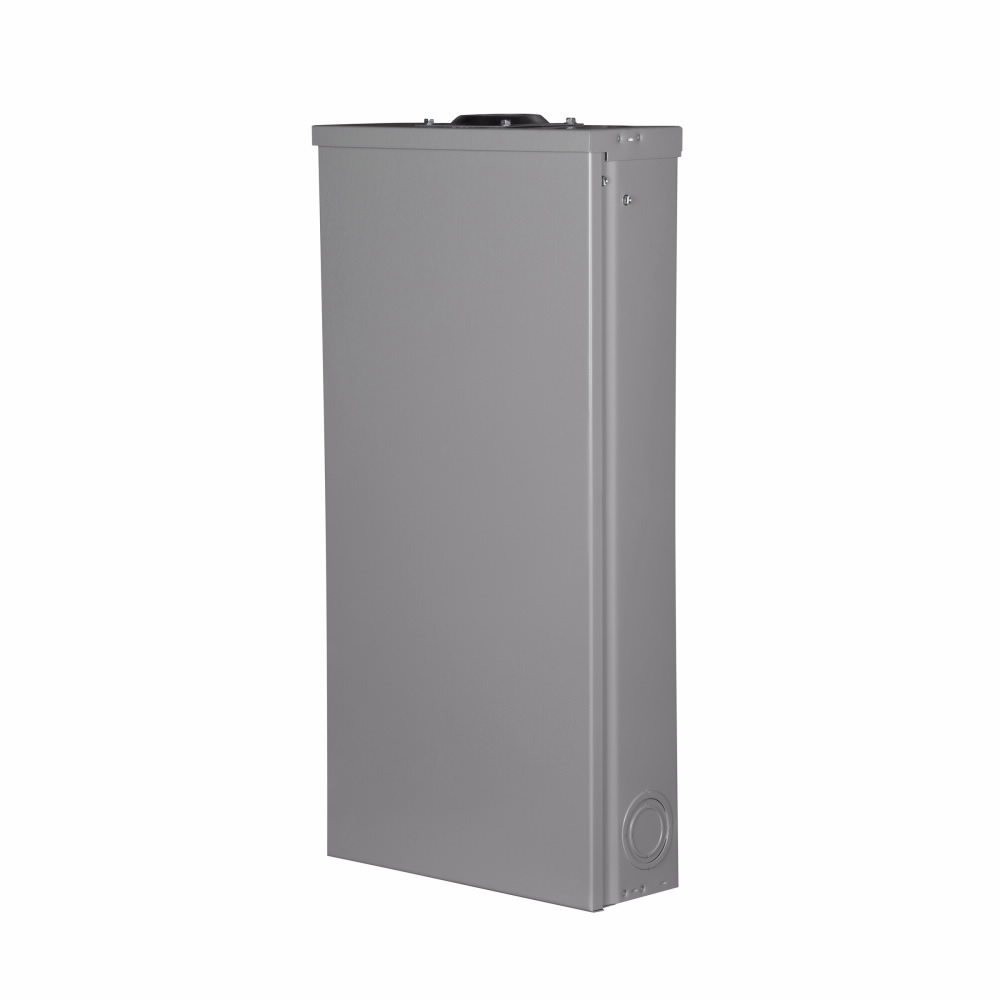

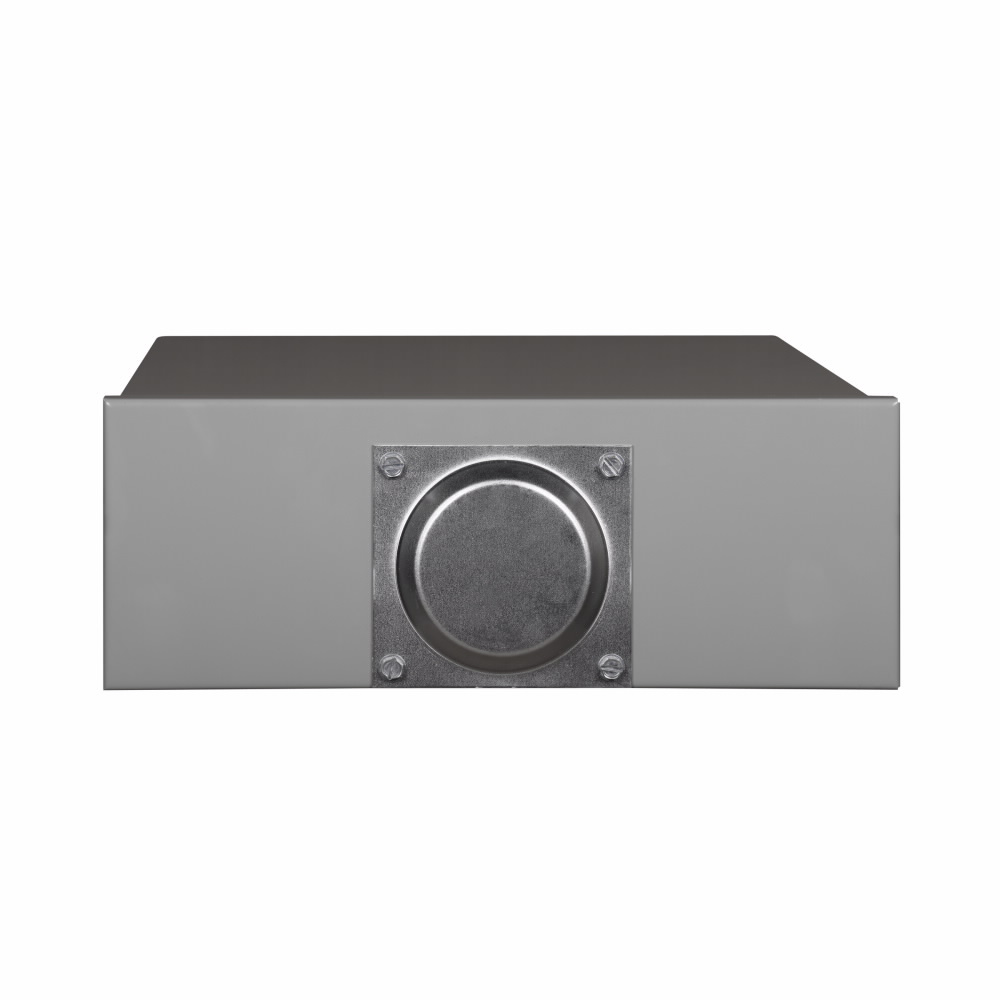

Eaton BR main lug loadcenter,No feed-thru lugs, 200 A,D1R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,40 Circuits,Twenty-four pole,30 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/Al

Eaton
SKU #159727Part #BR3040L200RUPC 786676447706

Eaton BR main lug loadcenter,No feed-thru lugs, 200 A,D1R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,40 Circuits,Twenty-four pole,30 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/Al

Eaton
SKU #159727Part #BR3040L200RUPC 786676447706

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Product Substitutes

Description

Specifications

Number of spaces: 30
Special features: No feed-thru lugs
Interrupt rating: 25 kAIC
Phase: Single-phase
Wire size: #1 AWG-300 kcmil Cu/Al
Bus material: Aluminum
Main circuit breaker: BWH
Enclosure: NEMA 3R
Amperage Rating: 200 A
Enclosure material: Metallic
Type: Main lug
Cover: Cover included
Used with: Type BR 1-inch breakers
Number of wires: 3
Number of circuits: 40
Voltage rating: 120/240V
Box size: D1R

General

UPC: 786676447706
Product Length/Depth: 5.19 in
Product Height: 29.13 in
Product Width: 14.31 in
Product Weight: 43 lb
Warranty: 10 year
Certifications: UL 50
Catalog Notes: Has notch for brhdk125 hold-down kit.

Downloads

More Information

Manufacturer Catalog Number

BR3040L200R

Weight

43.0000

Length

5.19

Width

14.31

Height

29.13

Amperage

200 amperes

Enclosure

3R

Number Of Phases

1

Type

Main Lug

Voltage

120/240 volts
