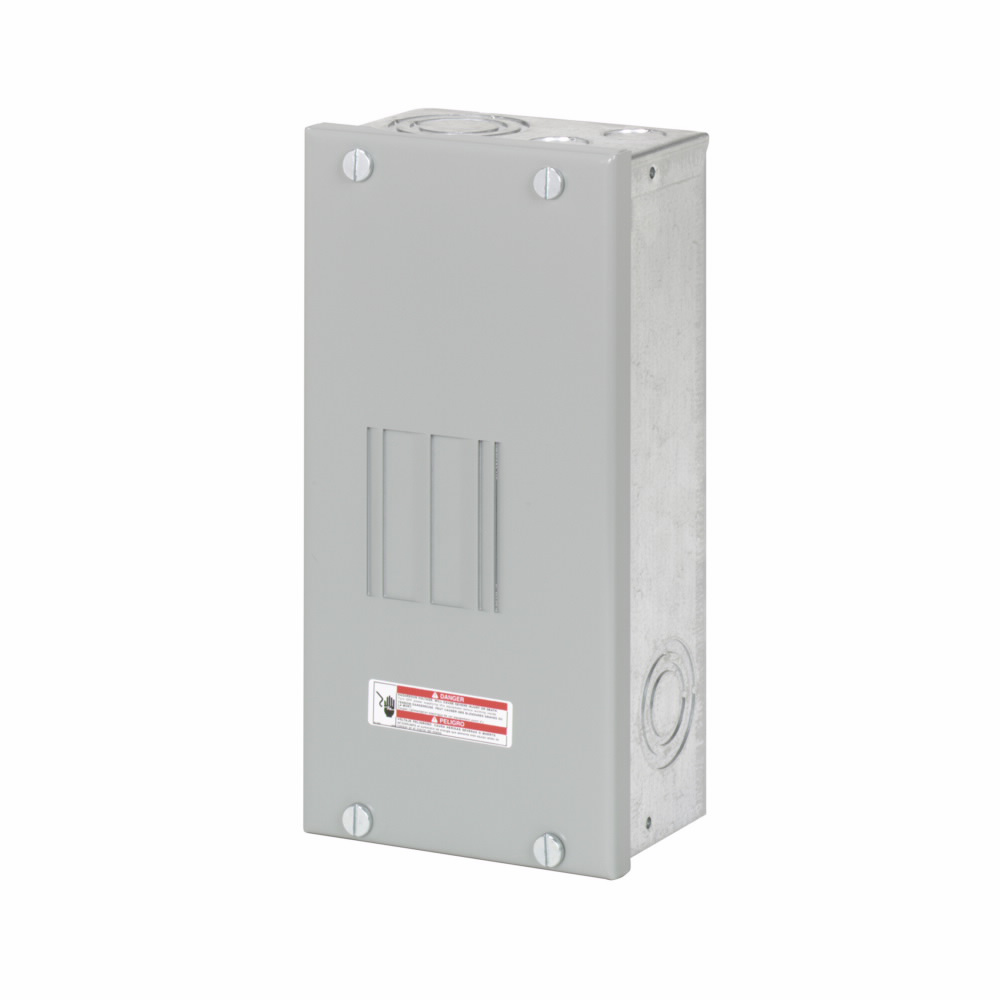

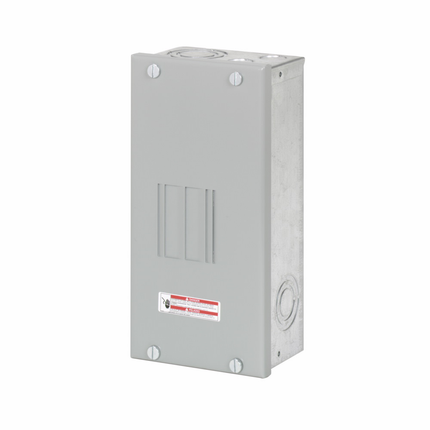

Eaton BR main lug loadcenter,Current design,Main lug,70 A,5,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Surface,48 Circuits,Four-pole,24 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240 V,#8-2 AWG Cu/Al
SKU: #159669
Part: #BR24L70SP
UPC: 786676001670
Eaton BR main lug loadcenter,Current design,Main lug,70 A,5,Aluminum,Cover not included,NEMA 1,Metallic,10 kAIC,BR,Surface,48 Circuits,Four-pole,24 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240 V,#8-2 AWG Cu/Al
SKU: #159669
Part: #BR24L70SP
UPC: 786676001670
Description
Eaton BR Main Lug Loadcenter 70A - Electrical Distributor Loadcenter
The Eaton BR main lug loadcenter is designed for power distribution in residential and light commercial applications. It serves as a sub-panel or service entrance panel housing branch circuit breakers and wiring to distribute power safely and efficiently. This loadcenter is suitable for use with 120/240 V single-phase systems and supports up to 48 circuits, making it ideal for expanding electrical capacity in homes or small commercial buildings. It is constructed with durable metallic enclosure materials and features aluminum bus bars for reliable conductivity.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR24L70SP
- Amperage: 70 amperes
- Number of Circuits: 4
- Number of Poles: 4
- Number of Phases: 1
- Interrupt Rating: 10 kiloamps
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Mounting Type: Surface
- Dimensions (W x H x D): 14.31 in x 23 in x 3.88 in
- Wire Size Range: #8-2 AWG Cu/Al
Features
- Main lug design suitable for sub-panels
- Durable metallic enclosure with powder-coated finish
- High interrupt rating of 10 kAIC for protection against short circuits
- Surface mountable for easy installation
- Aluminum bus bars for superior conductivity and corrosion resistance
- Supports 120/240 V single-phase wiring
- Compatible with Eaton BR series breakers
- Compact dimensions for space-efficient installation
