Eaton BR Convertible Loadcenter - 200 Amp Electrical Panel

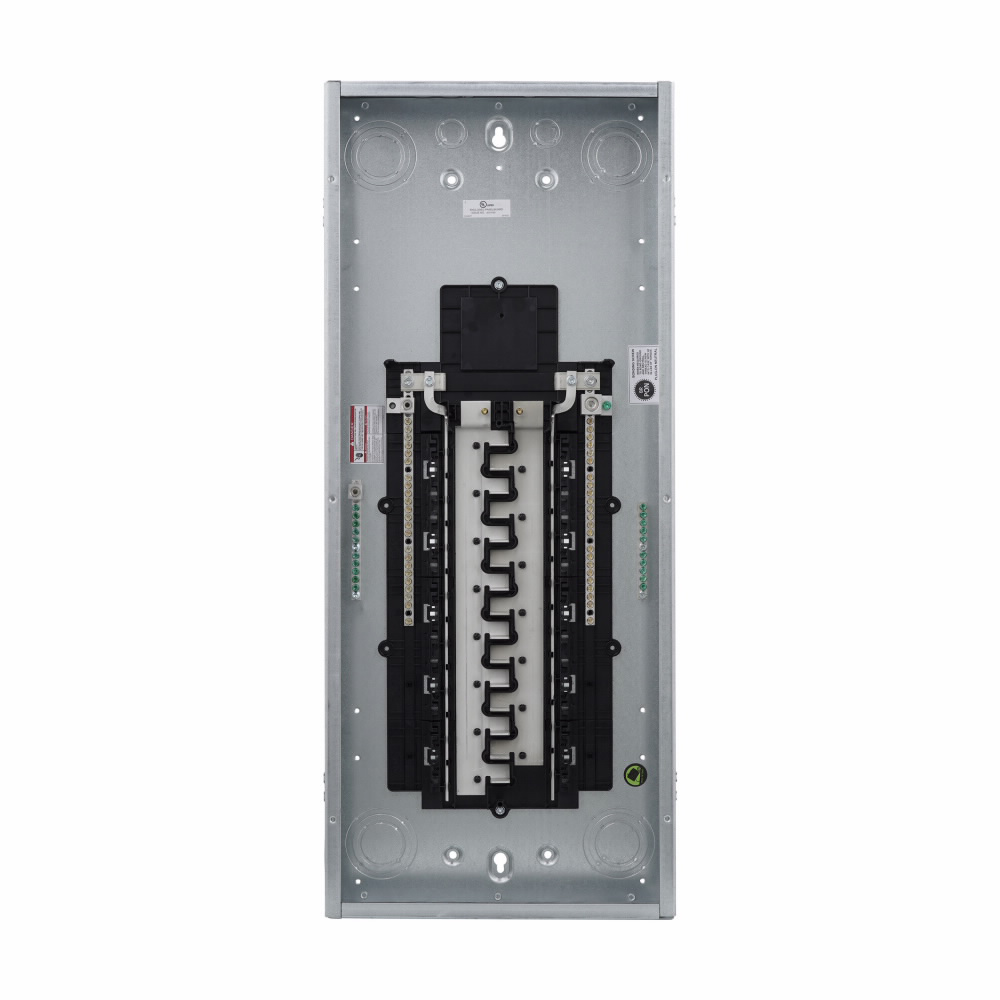

The Eaton BR convertible loadcenter is a versatile electrical distribution panel designed for single-phase 120/240 V applications. This loadcenter provides reliable power distribution with a 200-amp main rating, suitable for residential and light commercial use. It features a combination mounting type with a metallic NEMA 1 enclosure, offering durable protection and compliance with electrical standards. Ideal for electrical distributors and switchgear suppliers, this panel supports up to 60 circuits with 30 spaces, accommodating single-pole Type BR 1-inch breakers. The copper bus material ensures superior conductivity and durability, while a 10 kAIC interrupt rating provides enhanced safety against electrical faults.

Specifications

• Manufacturer: Eaton
• Model Number: BRP30NC200
• Amperage: 200 amperes
• Number of Circuits: 60
• Number of Spaces: 30
• Number of Phases: 1
• Voltage: 120/240 V
• Bus Material: Copper
• Enclosure Material: Metallic
• Mounting Type: Combination (flush/surface)
• Interrupt Rating: 10 kiloamps (10 kAIC)
• Dimensions (W x H x D): 14.31 in x 3.88 in x 34.12 in
• Weight: 30.2 lbs

Features

• Convertible design allows use with main breaker or main lug kits
• Supports Type BR 1-inch single-pole breakers for flexible circuit protection
• Combination mounting supports both flush and surface installation
• Metallic NEMA 1 enclosure provides indoor protection with durable powder-coated finish
• Copper bus ensures excellent electrical conductivity and corrosion resistance

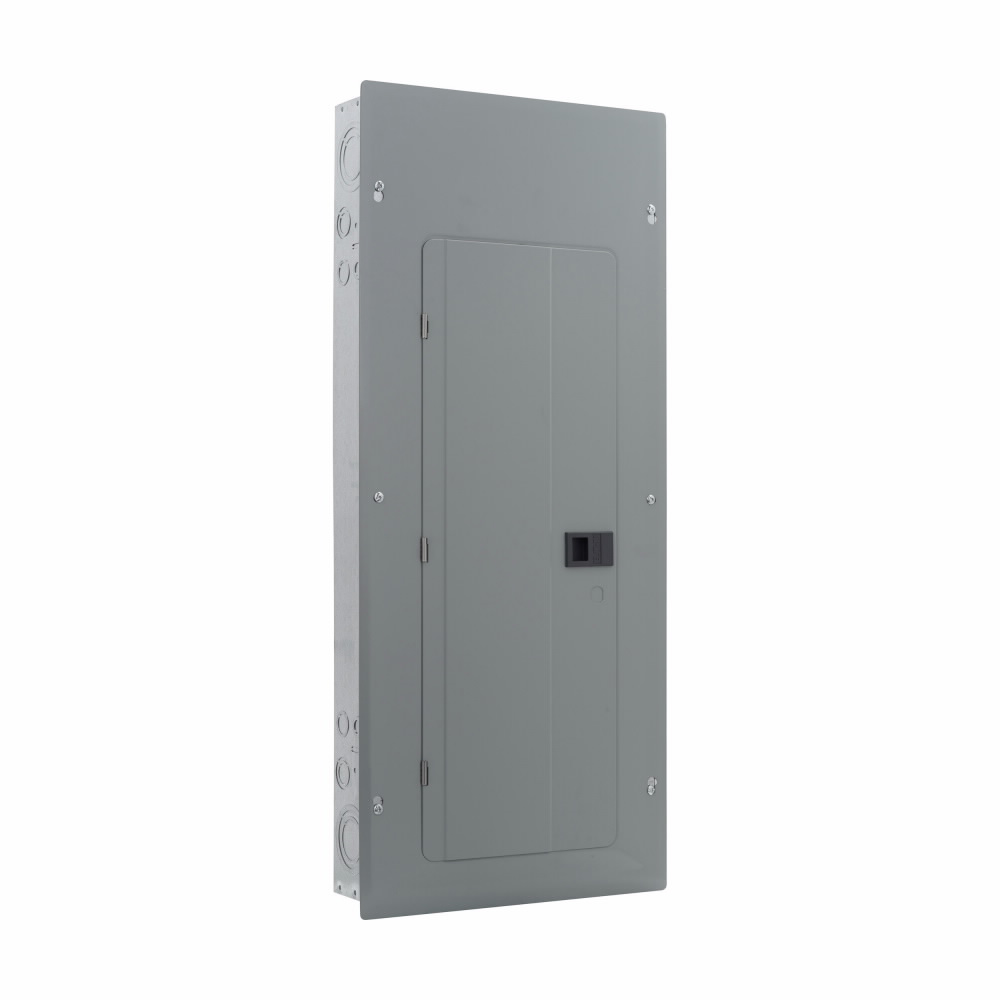

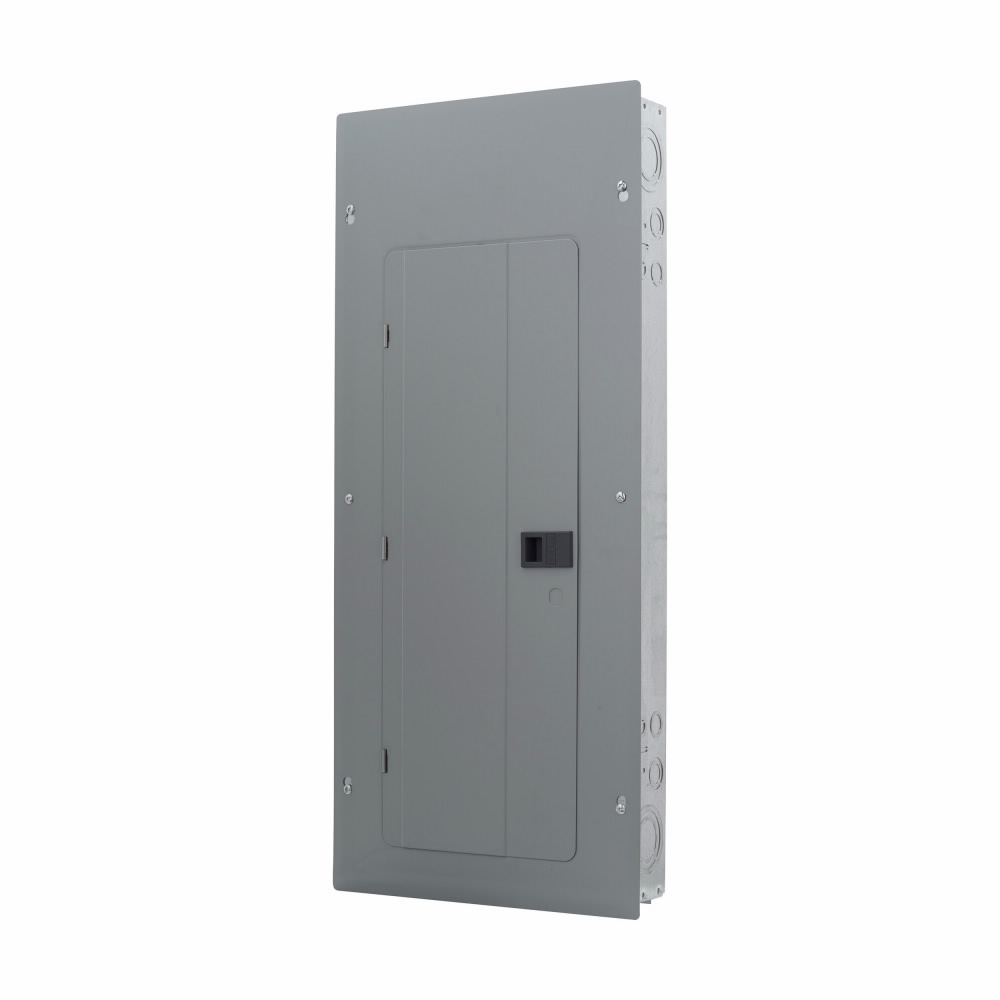

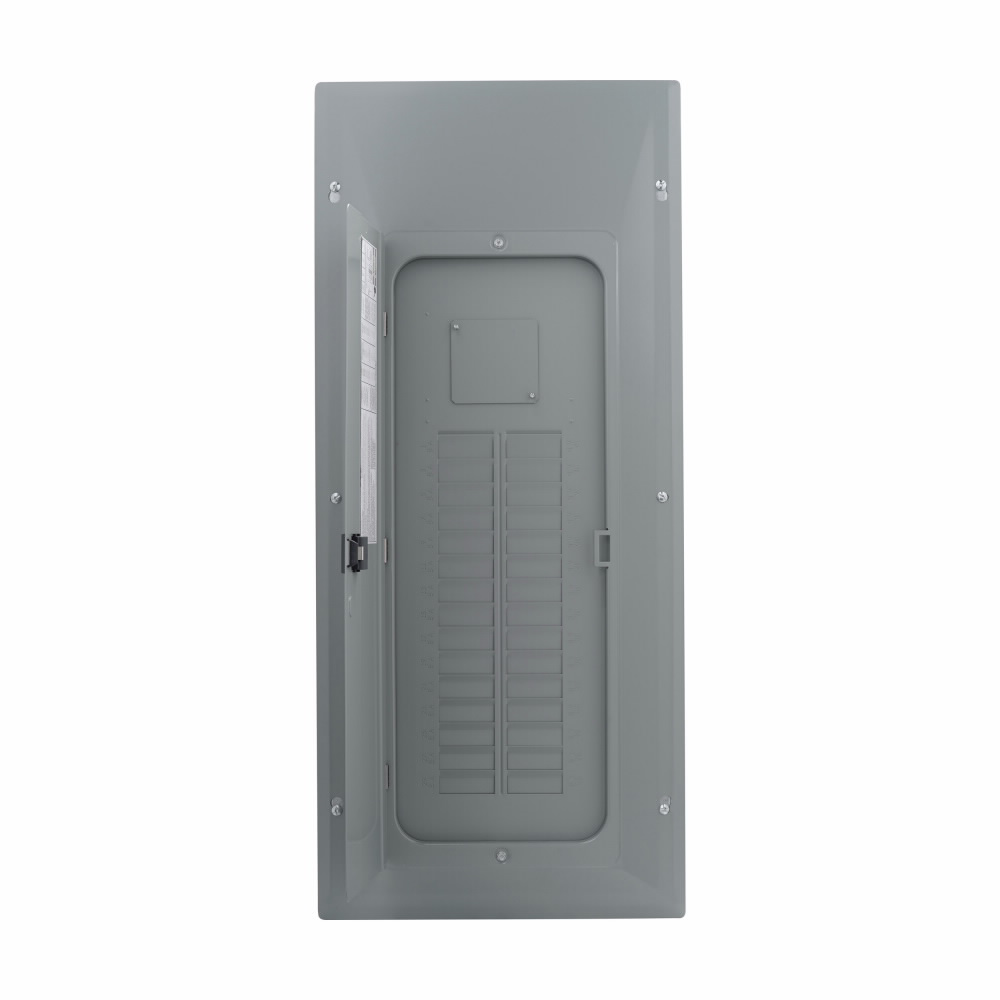

• Includes cover for safety and aesthetic appeal
• Compatible with standard Eaton BR circuit breakers
