Eaton Blankface GFCI,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Ivory,Brass,Blankface,Thermoplastic,Two-pole,Three-wire,Two-pole, three-wire, grounding
SKU: #171797
Part: #SGFD20V
UPC: 032664742644
Eaton Blankface GFCI,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Ivory,Brass,Blankface,Thermoplastic,Two-pole,Three-wire,Two-pole, three-wire, grounding
SKU: #171797
Part: #SGFD20V
UPC: 032664742644
Next day delivery
Description

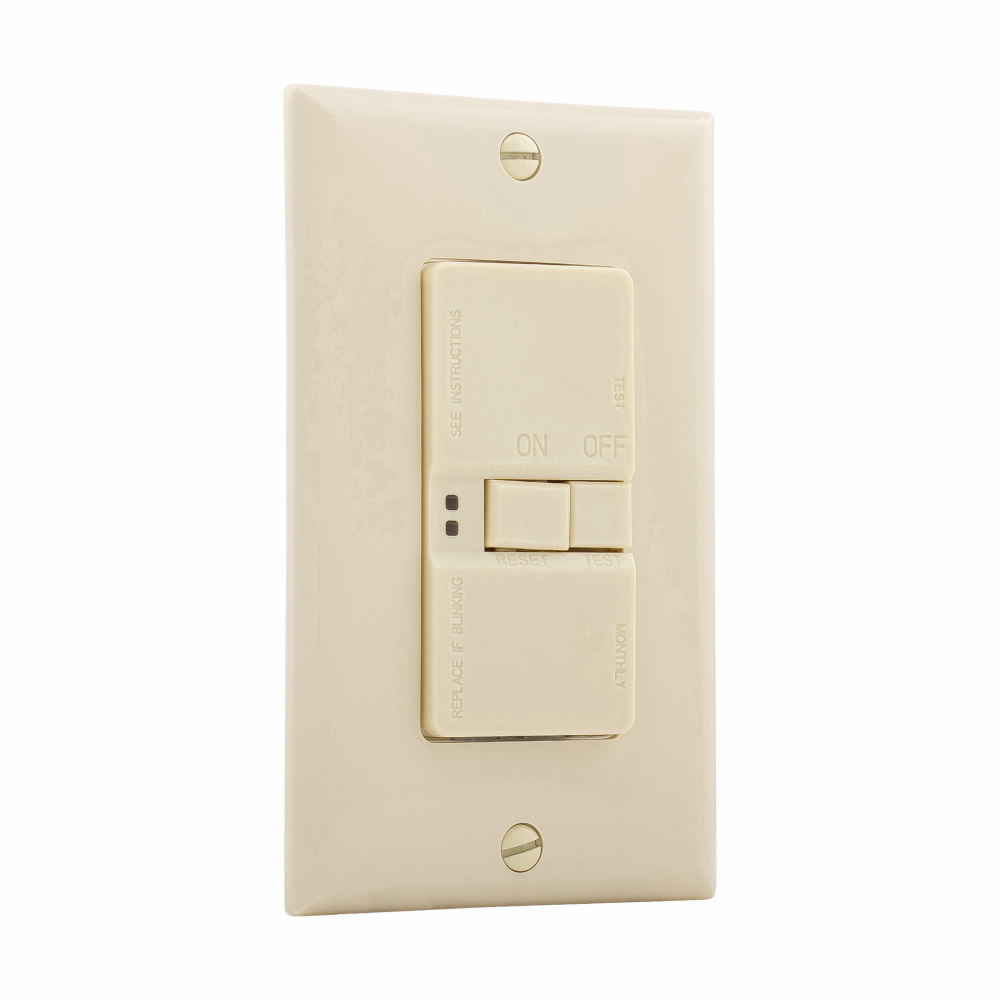

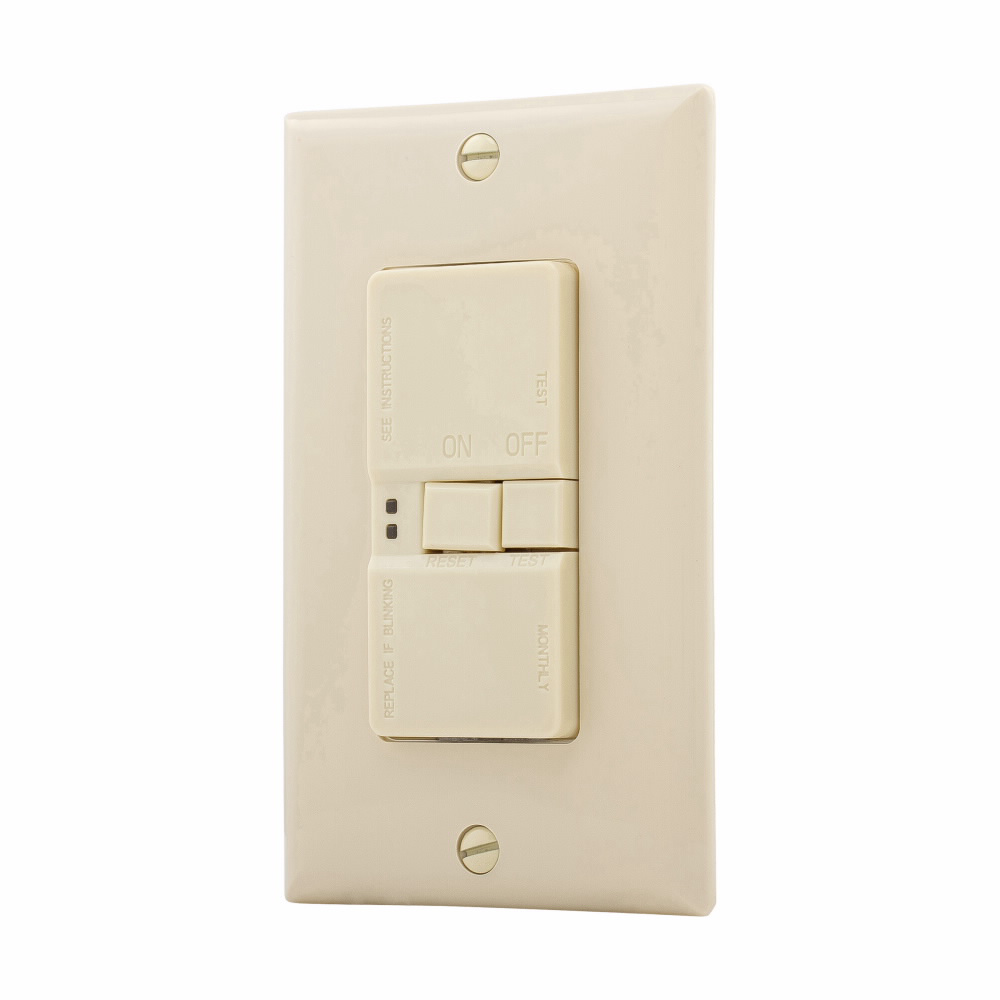

Eaton Blankface GFCI SGFD20V – Ground Fault Circuit Interrupter for Electrical Safety
The Eaton Blankface GFCI (Ground Fault Circuit Interrupter) device, model SGFD20V, is a 20-amp, 125 V self-test GFCI designed for residential and commercial electrical safety applications. It provides reliable ground fault protection with back and side wire capability, suitable for wiring sizes #14 to #10 AWG. This flush-mounted device, finished in ivory thermoplastic, is ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring compliance with UL943 Class A standards and NEC regulations.
Specifications
- Amperage: 20 amperes
- Voltage: 125 V AC
- Number of Poles: 2
- Number of Wires: 3 (Two-pole, three-wire grounding)
- Wire Gauge Compatibility: #14 - 10 AWG
- Dimensions: 4.711 in (Height) x 2.892 in (Width) x 2.011 in (Length)
- Color: Ivory
- Material: Thermoplastic
- Weight: 0.36 lbs
Features
- Self-test functionality to ensure ongoing GFCI protection integrity
- Back and side wire terminals for flexible and secure wiring
- Flush mount design with matching thermoplastic wallplate included
- Audible alarm feature for tripped GFCI notification (can be silenced)
- Visual trip indicator for quick status recognition
- Line-load miswiring protection prevents downstream power if wired incorrectly
- Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosures
- Tamper resistant shutters compliant with NEC Article 406.12 (2017 & 2020)
- UL Listed and compliant with UL943 Class A GFCI and UL498 standards
- Tri-combo head terminal and mounting screws for installation ease
- Durable thermoplastic housing with brass contacts and zinc-plated steel strap
