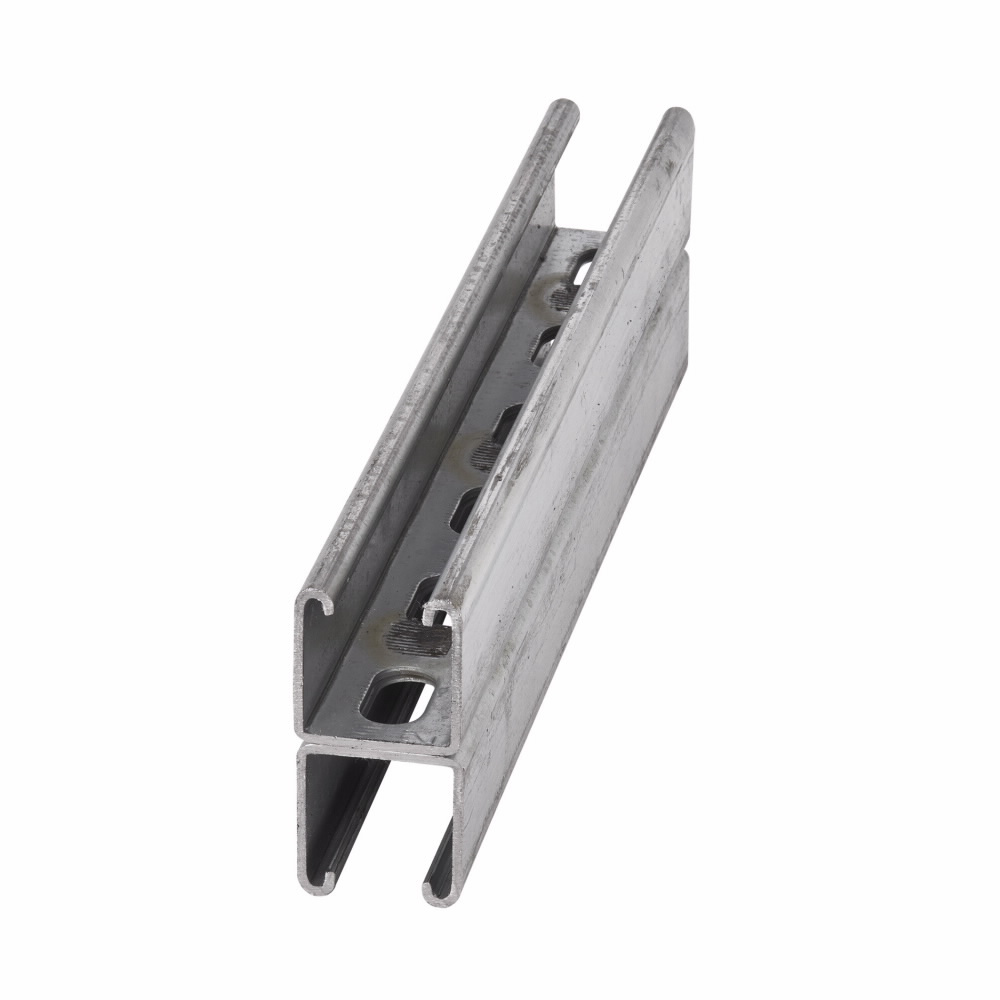

Eaton B-Line Series Strut Back-to-Back Welded Channel – Steel Channel for Electrical and Lighting Solutions

The Eaton B-Line series strut back-to-back welded channel is a structural framing component designed for versatile mounting and support applications in electrical distribution, lighting solutions, wire and cable management, and switchgear installations. This channel provides a robust framework for securing electrical components, conduit, and fixtures, suitable for commercial and industrial environments. The product is manufactured from high-quality steel with a hot-dipped galvanized finish for enhanced corrosion resistance, ensuring durability in demanding settings.

Specifications

• Product Name: Eaton B-Line series strut back-to-back welded channel, 1.62" channel height, 120" channel length, 1.62" channel width
• Manufacturer Part #: B22SHA-120HDG
• Material: Steel
• Gauge: 12 Gauge
• Finish: Hot-dipped galvanized
• Channel Type: B22
• Hole Pattern: SHA
• Channel Height: 1.62 in
• Channel Width: 1.62 in
• Channel Length: 120 in
• Product Weight: 3.6 lbs

Features

• Cold-formed steel construction for strength and reliability
• Back-to-back welded channel design provides increased load capacity
• SHA hole pattern allows flexible attachment points for various mounting needs
• Hot-dipped galvanized finish offers superior corrosion resistance in harsh environments
• Compatible with a wide range of B-Line fittings and accessories for electrical and lighting installations
• Standard 12 gauge thickness balances strength with ease of handling
• 120-inch length suitable for extended spans and structural support

Downloads & Links

• Channel And Combinations Catalog Section
