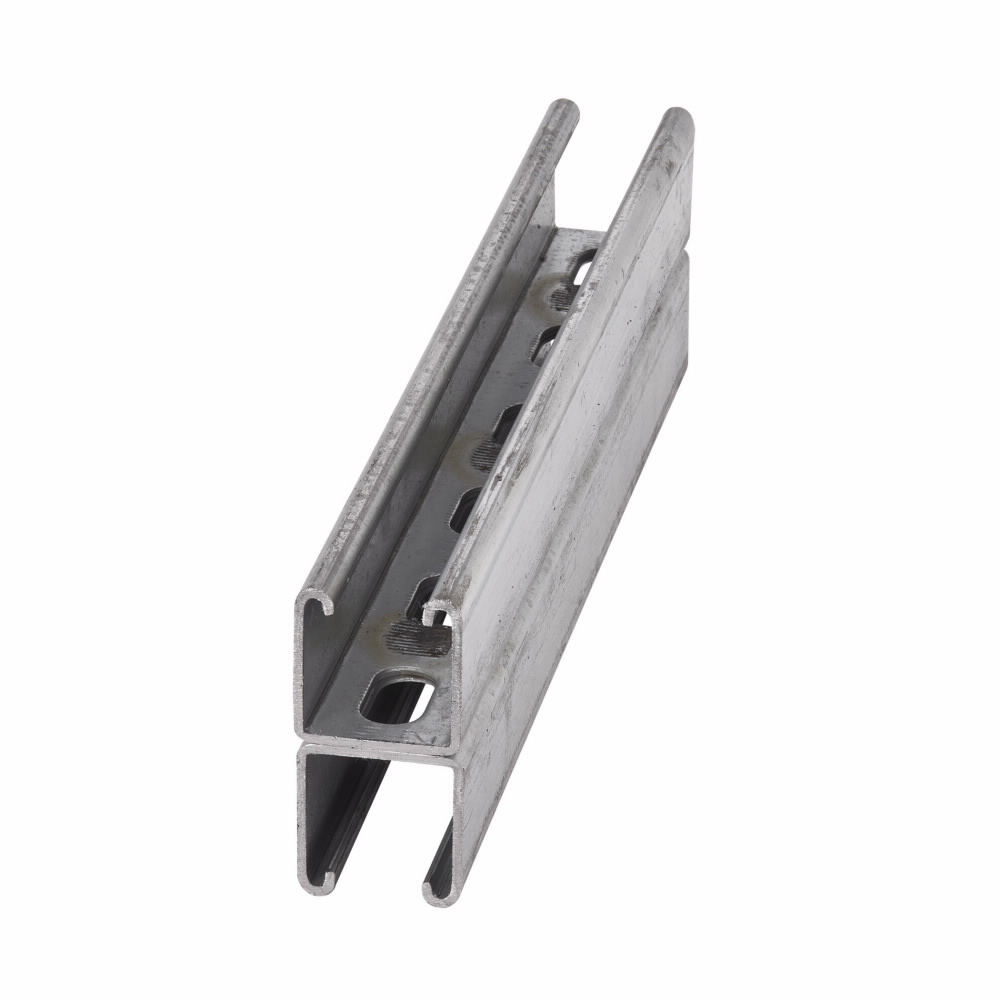

Eaton B-Line Series Strut Back-to-Back Welded Channel – Aluminum Channel

The Eaton B-Line series strut back-to-back welded channel is a precision-engineered aluminum framing channel designed for structural support in electrical distribution, lighting solutions, wire and cable management, and switchgear applications. This 12-gauge aluminum channel features a 1.62" channel height and width with a 120" length, optimized for durability and ease of attachment with the SHA hole pattern. Ideal for electrical distributors and switchgear suppliers, this channel offers reliable mechanical strength with corrosion resistance inherent to aluminum, making it suitable for a wide range of industrial and commercial installations.

Specifications

• Manufacturer: B-Line
• Manufacturer Part Number: B22SHA-120AL
• Material: Aluminum (6063-T6)
• Channel Type: B22
• Channel Height: 1.62 inches
• Channel Width: 1.62 inches
• Channel Length: 120 inches
• Gauge: 12 Gauge
• Hole Pattern: SHA
• Weight: 1.32 lbs

Features

• Back-to-back welded design for enhanced structural integrity
• Cold-formed aluminum construction for corrosion resistance and lightweight strength
• Pre-punched SHA hole pattern allows for flexible and precise attachment points
• Compatible with a wide range of B-Line fittings and accessories for versatile mounting solutions
• Standard 120" length suitable for extended runs and custom installations
• 12-gauge thickness provides a balance of strength and weight for demanding electrical and lighting applications
• Ideal for use in electrical distribution, lighting solutions, wire and cable support, and switchgear assemblies
