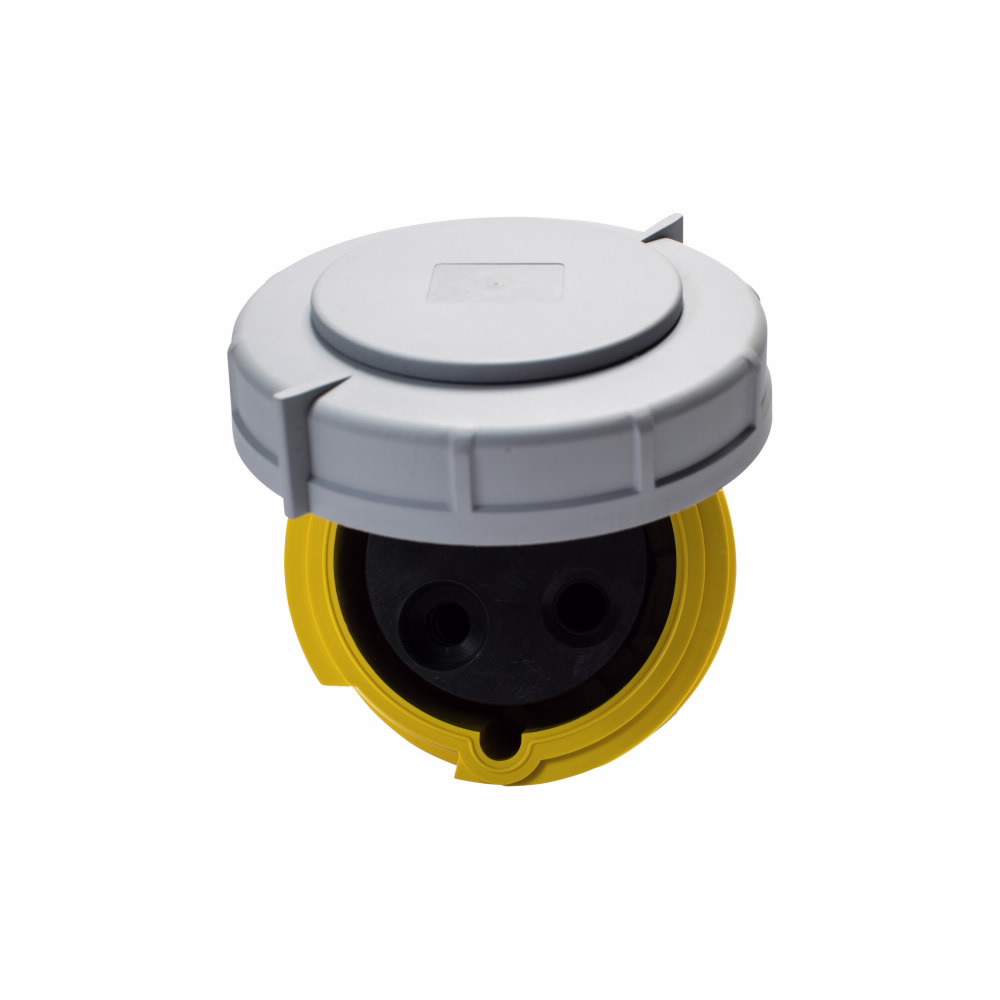

Eaton Arrow Hart pin & sleeve connector - Watertight Industrial Electrical Connector

The Eaton Arrow Hart pin & sleeve connector is a durable, watertight electrical connector designed for industrial applications requiring reliable connectivity in harsh environments. Suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this connector supports 60 amperes at voltages up to 600V and is engineered to meet demanding electrical installation requirements.

Specifications

• Manufacturer: Crouse-Hinds
• Manufacturer Part #: AH460C7W
• Amperage: 60 amperes
• Horsepower: 15 horse power
• Number of Wires: 4
• Material: Nylon
• Color: Red
• Dimensions (L x W x H): 11.5 in x 5.125 in x 5.125 in
• Product Weight: 2.0920 lbs
• UPC: 040893619804
• Rated Voltage: Up to 600V (rms)
• Protection Rating: Watertight to IP67 and IP69K standards
• Compliance: Classified to IEC standards 60309-1 and 60309-2; cULus listed to UL1682, UL1686, and CSA 22.2 no. 182.1
• Dielectric Voltage: 3000V
• Temperature Rise: Max 30ºC after 50 cycles of overload at 150% rated current
• Endurance: 2000 cycles

Features

• Mechanical cord clamp with silicone rubber grommet seal and locking screw for positive, watertight strain relief
• Tri-combo cord grip screws for installation convenience
• Durable impact-resistant thermoplastic (Nylon PA6) body and housing for enhanced cold impact performance
• Color-coded front housing for easy and accurate voltage identification
• Oversized grounding pin ensures correct mating and safety by making ground first and breaking last
• Spring-loaded self-closing cap with silicone rubber gasket protects contacts when not in use
• Nickel-plated pins and sleeves provide corrosion resistance and long service life
• Threaded NPT cable entry for efficient attachment of flexible conduit or wire mesh grips
• Tapered wiring pockets with clear markings ease stranded wire insertion and isolate bare conductors
• Standard mounting footprints and blind holes for interchangeability with major brands
