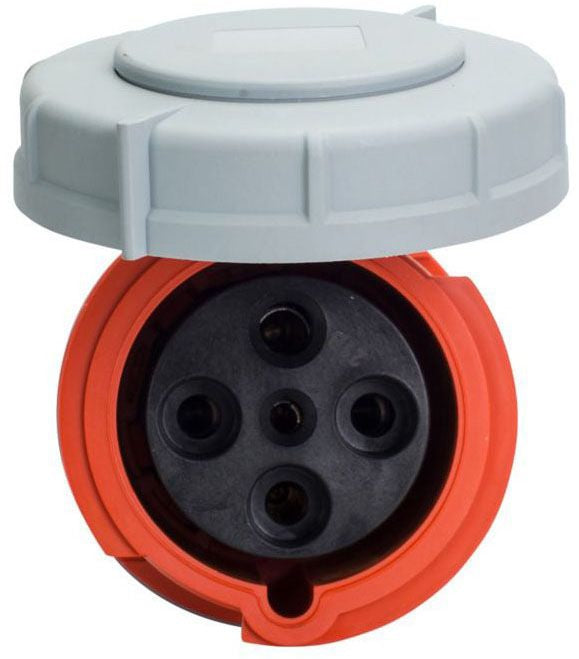

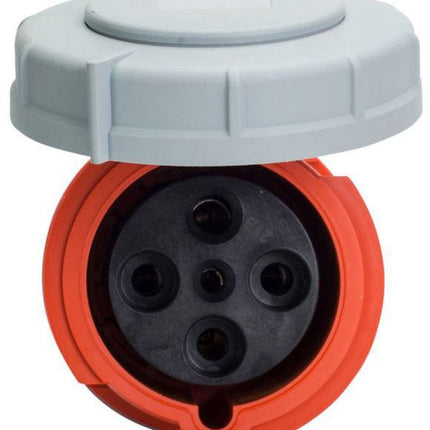

Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 125/250V, Back wire, Orange, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, Nylon
SKU: #170905
Part: #AH460C12W
UPC: 040893619781
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), 60A, 125/250V, Back wire, Orange, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.66-1.5in (1.68-3.81cm), Female, Nylon
SKU: #170905
Part: #AH460C12W
UPC: 040893619781
Next day delivery
Description
Eaton Arrow Hart Pin and Sleeve Connector - IP69K Rated Electrical Connector
The Eaton Arrow Hart pin and sleeve connector is an IP69K rated, watertight electrical connector designed for demanding wet locations and harsh washdown environments. It supports #8 - #2 AWG wire sizes, with ground and pilot wire accommodations, and is rated for 60 amperes at 125/250 volts. This connector is engineered with durable nylon material and nickel-plated brass components to ensure corrosion resistance and long service life. Its design supports back wire installation and features a 3-pole, 4-wire configuration with a female nylon body in orange color, suitable for industrial electrical distribution, lighting solutions, wire and cable applications, and switchgear supplier needs.
Specifications
- Manufacturer Part #: AH460C12W
- Amperage: 60 amperes
- Voltage: 125/250V
- Wire Range: #8 - #2 AWG (power), #10 - #2 AWG (ground), #12 - #16 AWG (pilot)
- Poles/Wires: 3-pole, 4-wire
- Material: Nylon
- Color: Orange
- Connection Type: Back wire
- Dimensions (L x W x H): 11.5 in x 5.125 in x 5.125 in
- Weight: 2.0920 lbs
- IP Rating: IP67 and IP69K certified for watertight and dust tight protection
- Contact Material: Nickel plated brass
Features
- IP69K rated for protection against high pressure, high temperature washdown applications
- Durable impact-resistant nylon body for corrosion resistance and mechanical protection
- Nickel plated pins and sleeves for long life corrosion protection
- Spring-loaded self-closing cap with silicone rubber gasket to protect contacts when not in use
- Oversized grounding pin to ensure proper grounding connection
- Threaded NPT cable entry for secure conduit attachment
- Tapered wiring pockets for easy insertion and isolation of stranded wire conductors
- Color-coded housing for easy voltage identification
- Complies with IEC 309-1 and 309-2, UL1682, UL1686, and CSA 22.2 standards
