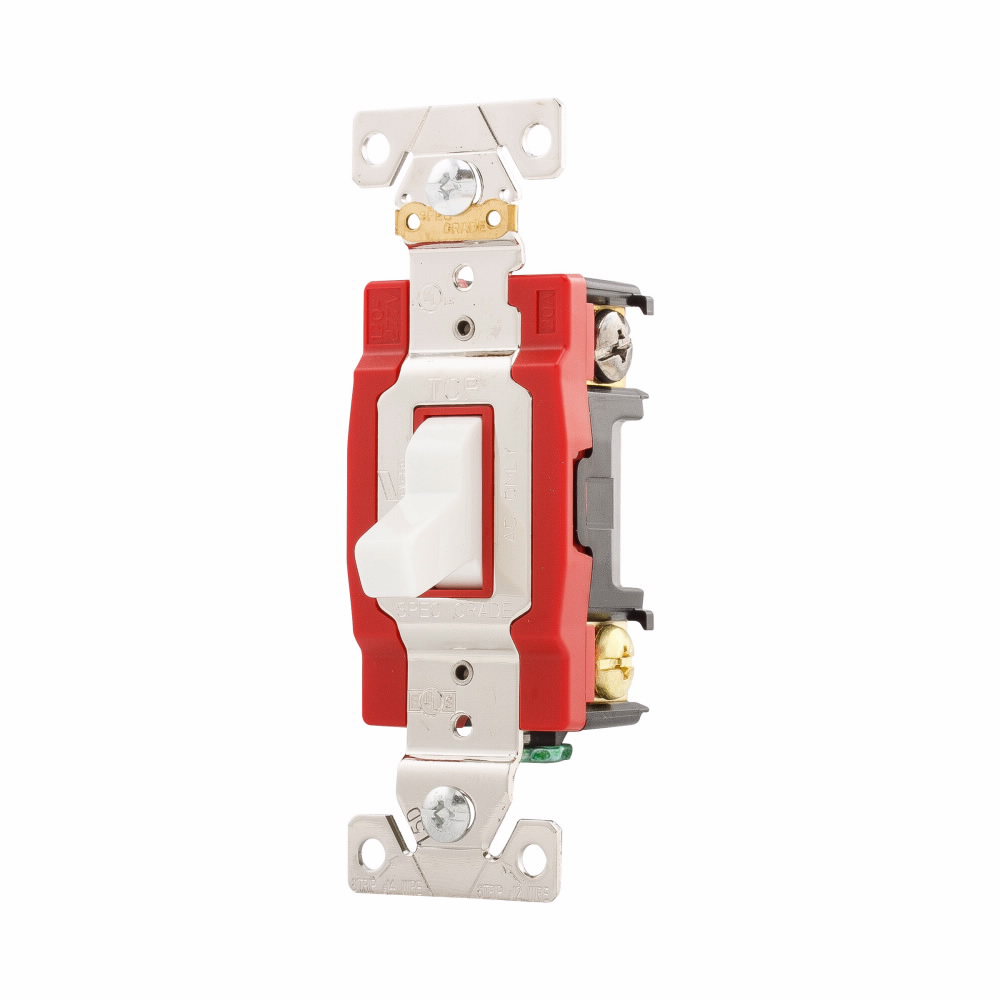

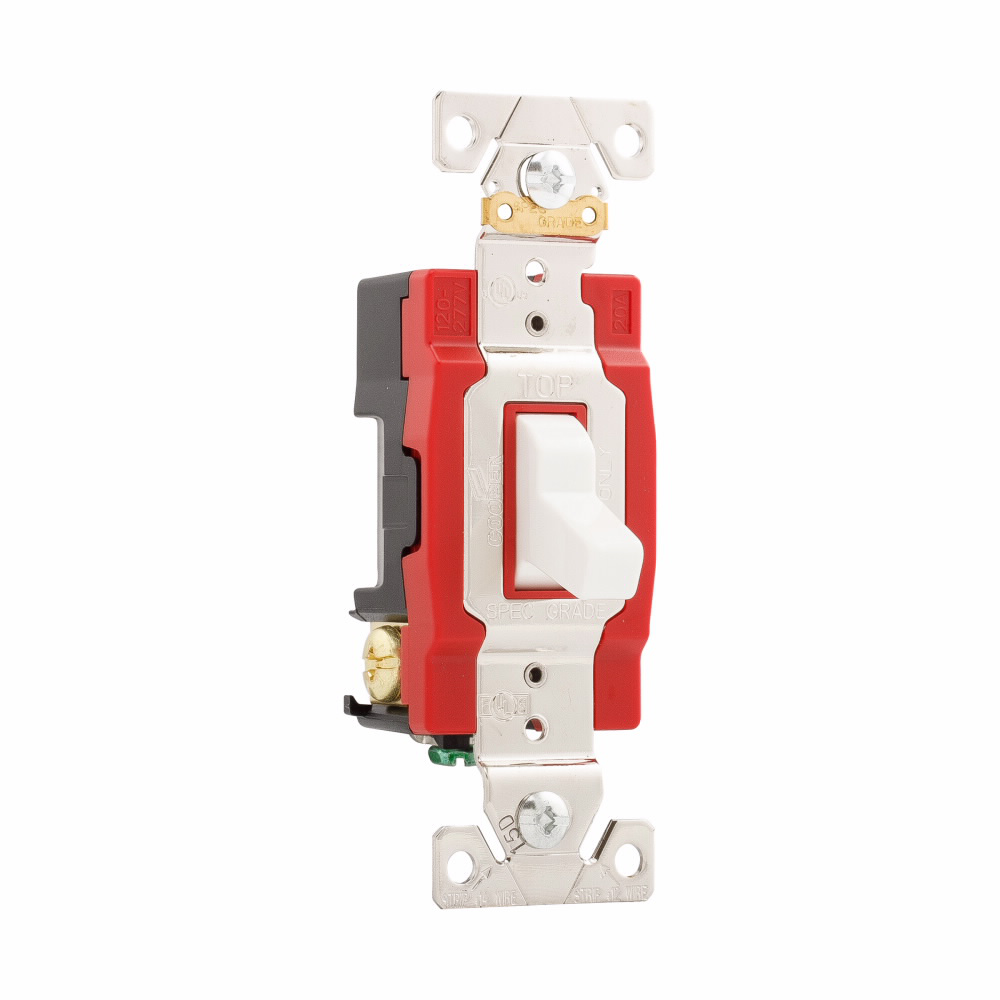

Eaton Arrow Hart Industrial Grade Toggle Switch - 20A Three-Way Switch

The Eaton Arrow Hart industrial grade toggle switch is an extra heavy-duty AC toggle switch designed for commercial and industrial electrical applications. It supports wiring sizes from #14 to #10 AWG and operates at 120/277 volts AC with a 20-ampere rating. This three-way switch is suitable for controlling lighting and other electrical loads, making it an essential component for electrical distributors and switchgear suppliers seeking reliable and durable wiring solutions.

Specifications

• Manufacturer Part #: AH1223W
• Amperage: 20 amperes
• Voltage Rating: 120/277V AC
• Wiring Type: Back and side wire
• Material: Polycarbonate
• Color: White
• Dimensions: 4.19 in (Height) x 1.005 in (Width) x 1.3 in (Length)
• Terminal Accommodation: #14 - 10 AWG
• Dielectric Voltage: Withstands 1500V per UL 20
• Temperature Rating: -20°C to 60°C (-4°F to 140°F)
• UL and cULus Listed to UL 20, file no. E18704
• UL Verified to Federal Spec WS-896-F
• CSA Certified to C22.2, no. 111, file no. 10016
• Horsepower Rating: 1 HP at 120V AC, 2 HP at 240V AC

Features

• Extra heavy-duty industrial grade construction for durability in commercial applications
• Color-coded polycarbonate housing for easy amperage identification and corrosion resistance
• 0.050” thick nickel-plated steel mounting strap for enhanced corrosion resistance
• Brass terminals and screws for reliable electrical connections
• Back and side wiring options for flexible installation
• Designed to handle motor loads with horsepower rating compliant with UL 20
