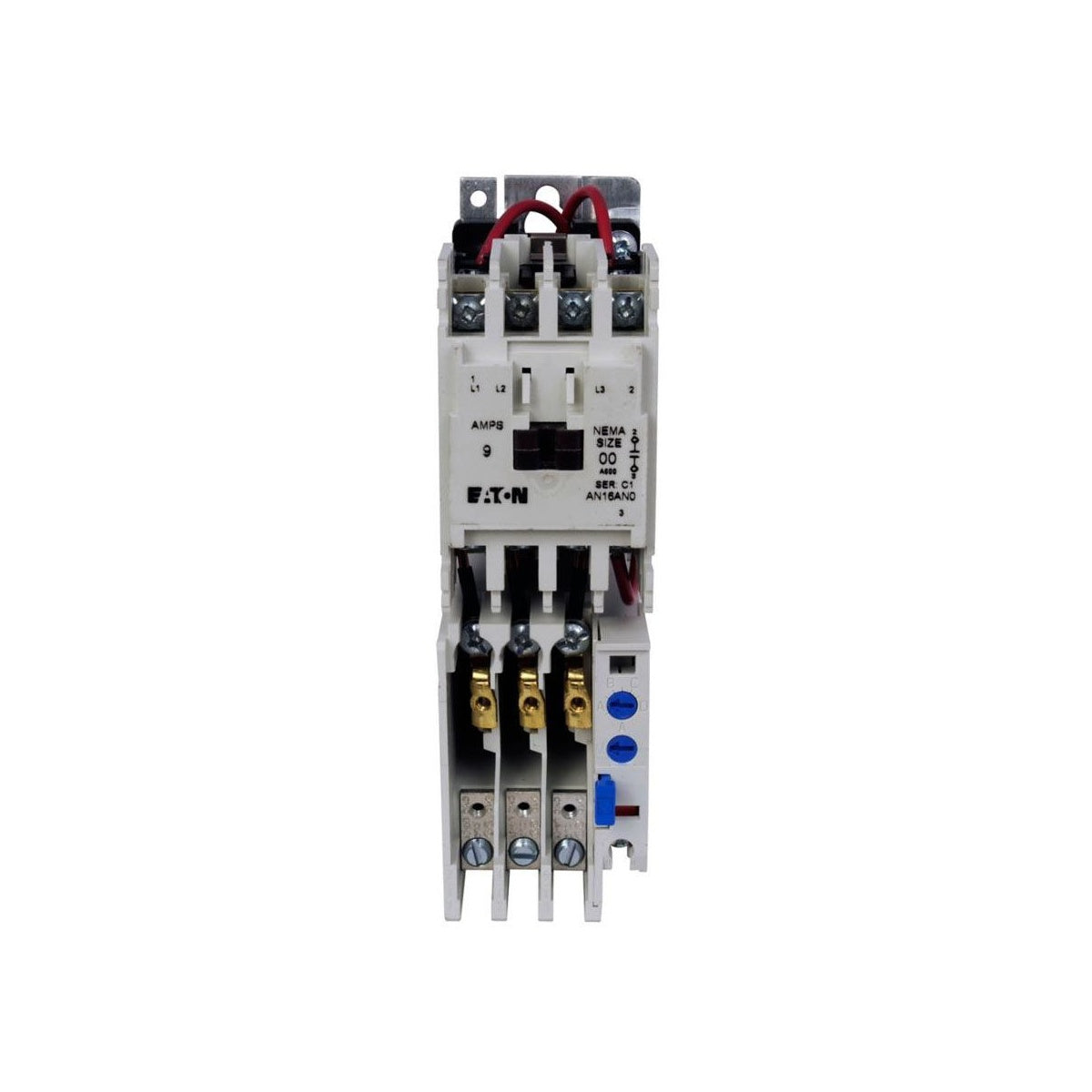

The EATON AN16AN0BC is a NEMA Size 00, three-phase, non-reversing, full voltage magnetic starter designed for switching AC motor loads. It is commonly used in industrial electrical distribution and motor control applications. This starter includes a magnetically actuated switch (contactor) and is intended for open type mounting with a 240V coil voltage. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable control and switchgear components.

Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: AN16AN0BC
• Catalog Number: AN16AN0_C
• NEMA Size: 00
• Poles: 3
• Type: Non-Reversing Starter
• Voltage Rating: 240V coil
• Continuous Ampere Rating: 9 A
• Service-Limit Current Rating: 11 A
• Maximum UL Horsepower Rating (Three-Phase): 1.5 HP at 240 V
• Product Weight: 2.6 lbs
• Mounting Dimensions: 157 mm (6.18 in) height, 89 mm (3.51 in) width, 168 mm (6.60 in) depth (from technical drawing)

Features

• Three-pole, full voltage magnetic starter for motor switching
• Open type design with steel mounting plate standard on all open type starters
• Designed for 240V coil operation with AC magnet coil options available
• Includes holding circuit contact(s) standard for Size 00
• Compatible with Eaton Freedom series NEMA contactors and overload relays
• Robust construction suitable for electrical distributors and switchgear suppliers
• Reliable performance for motor control in industrial and commercial electrical systems
