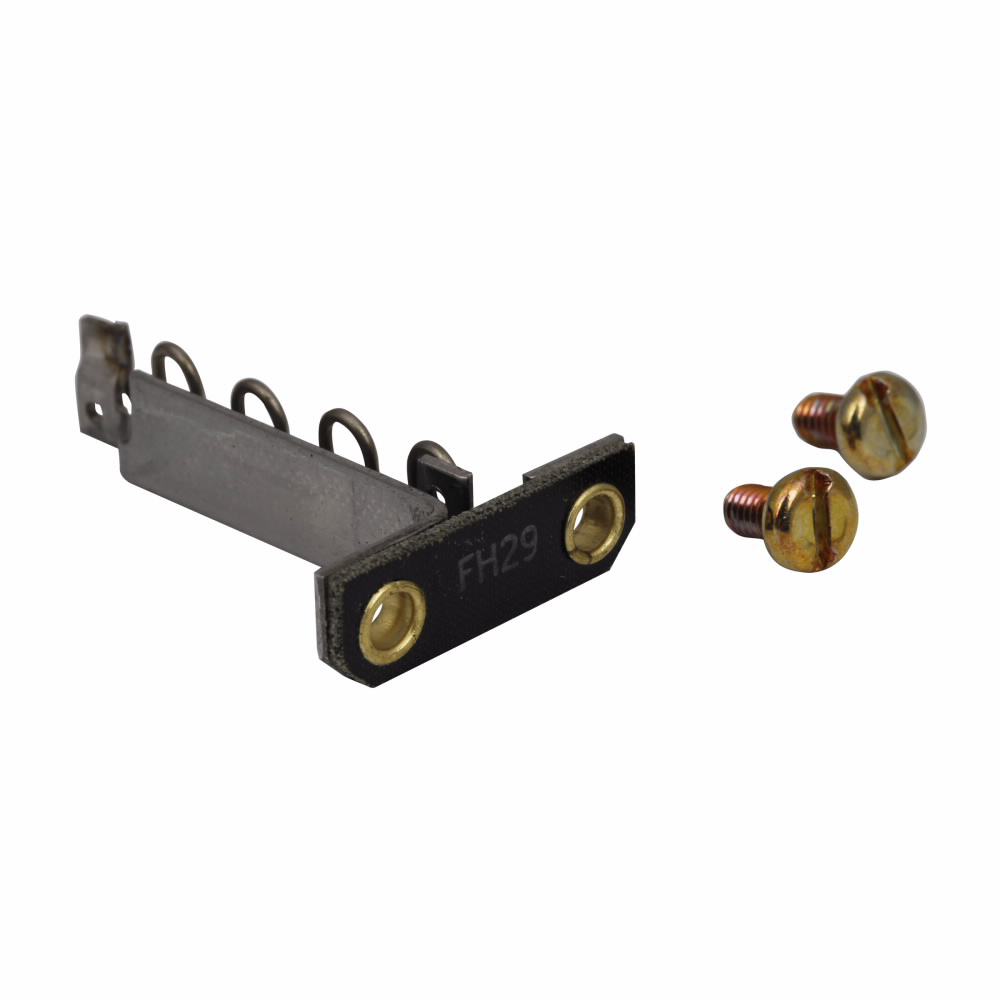

Eaton A200/B100 heater, Used with Starter Sizes 0,1, and 2, A200/B100 Heater, NEMA, Ambient 3.12-3.42, 3.61-3.95A, Non-Comp 2.90-3.17, 3.54-3.87A, Used with Starter Sizes 0,1, and 2, Type A and B, Thermal and Fast Trip
SKU: #165561
Part: #FH29
UPC: 786678629742
Eaton A200/B100 heater, Used with Starter Sizes 0,1, and 2, A200/B100 Heater, NEMA, Ambient 3.12-3.42, 3.61-3.95A, Non-Comp 2.90-3.17, 3.54-3.87A, Used with Starter Sizes 0,1, and 2, Type A and B, Thermal and Fast Trip
SKU: #165561
Part: #FH29
UPC: 786678629742
Next day delivery
Description
Eaton A200/B100 Heater for Motor Starters – Thermal Overload Protection
The Eaton A200/B100 heater is designed for use with A200, B100 motor starters, specifically for Starter Sizes 0, 1, and 2. It provides thermal overload protection with both ambient compensated and non-compensated options, suitable for Type A and B overload relays. This heater is essential for motor control applications requiring reliable overload protection, commonly supplied by electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Eaton
- Manufacturer Part Number: FH29
- Product Weight: 0.0300 lbs
- Dimensions (L x W x H): 2.1 in x 1.3 in x 0.8 in
- Compatible Starter Sizes: 0, 1, and 2
- Overload Relay Types: Type A and B (Thermal and Fast Trip)
- Ambient Current Ratings: 3.12–3.42 A, 3.61–3.95 A
- Non-Compensated Current Ratings: 2.90–3.17 A, 3.54–3.87 A
Features
- Designed for use with A200/B100 motor starters
- Supports both ambient compensated and non-compensated overload relays
- Thermal and fast trip protection options for motor overload
- Compact size for easy installation in motor starter assemblies
- Provides reliable overload protection to prevent motor damage
- Heater selection based on motor full load current and service factor
- Installation requires clean connecting surfaces and secure attachment with screws
