Eaton A200/B100 heater, Used with Starter Sizes 0,1, and 2, A200/B100 Heater, NEMA, Ambient 17.3-18.9, 17.3-18.9A, Non-Comp 13.9 -15.1, 16.7-18.3A, Used with Starter Sizes 0,1, and 2, Type A and B, Thermal and Fast Trip
SKU: #165572
Part: #FH46
UPC: 786678670249
Eaton A200/B100 heater, Used with Starter Sizes 0,1, and 2, A200/B100 Heater, NEMA, Ambient 17.3-18.9, 17.3-18.9A, Non-Comp 13.9 -15.1, 16.7-18.3A, Used with Starter Sizes 0,1, and 2, Type A and B, Thermal and Fast Trip
SKU: #165572
Part: #FH46
UPC: 786678670249
Description

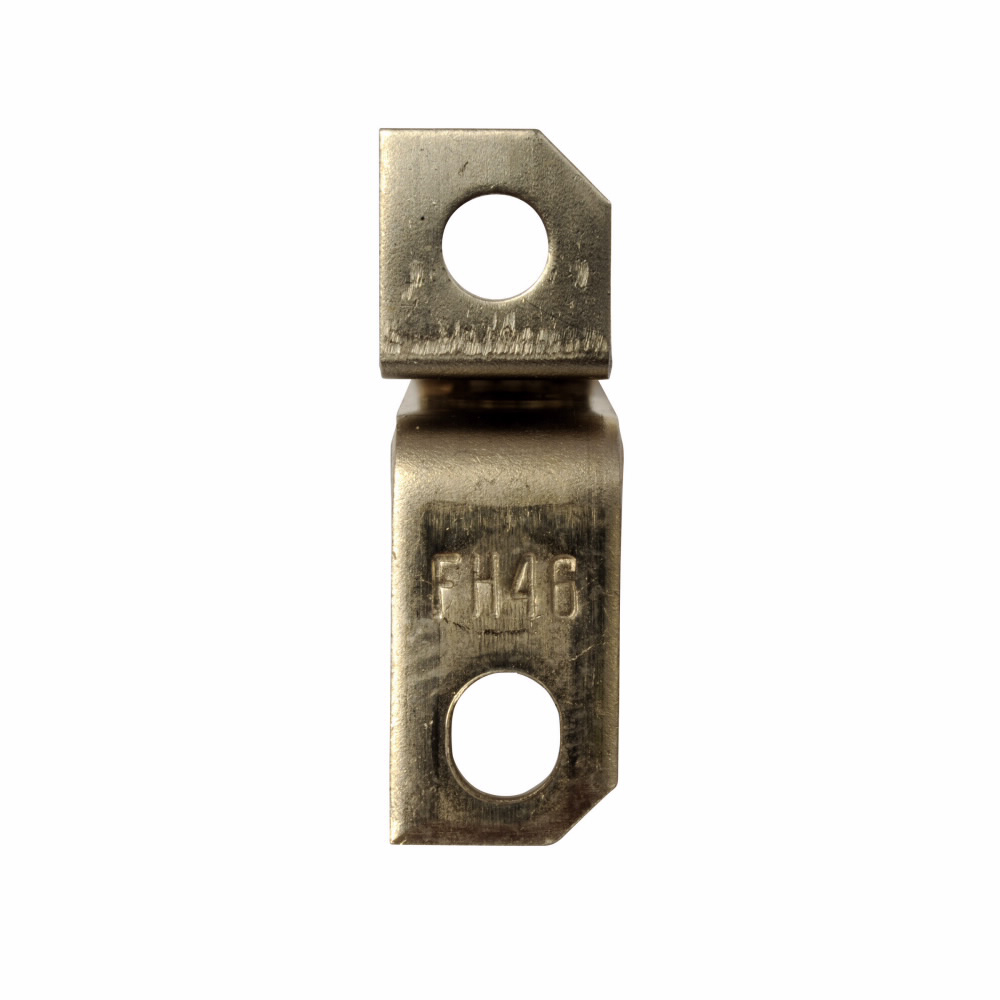

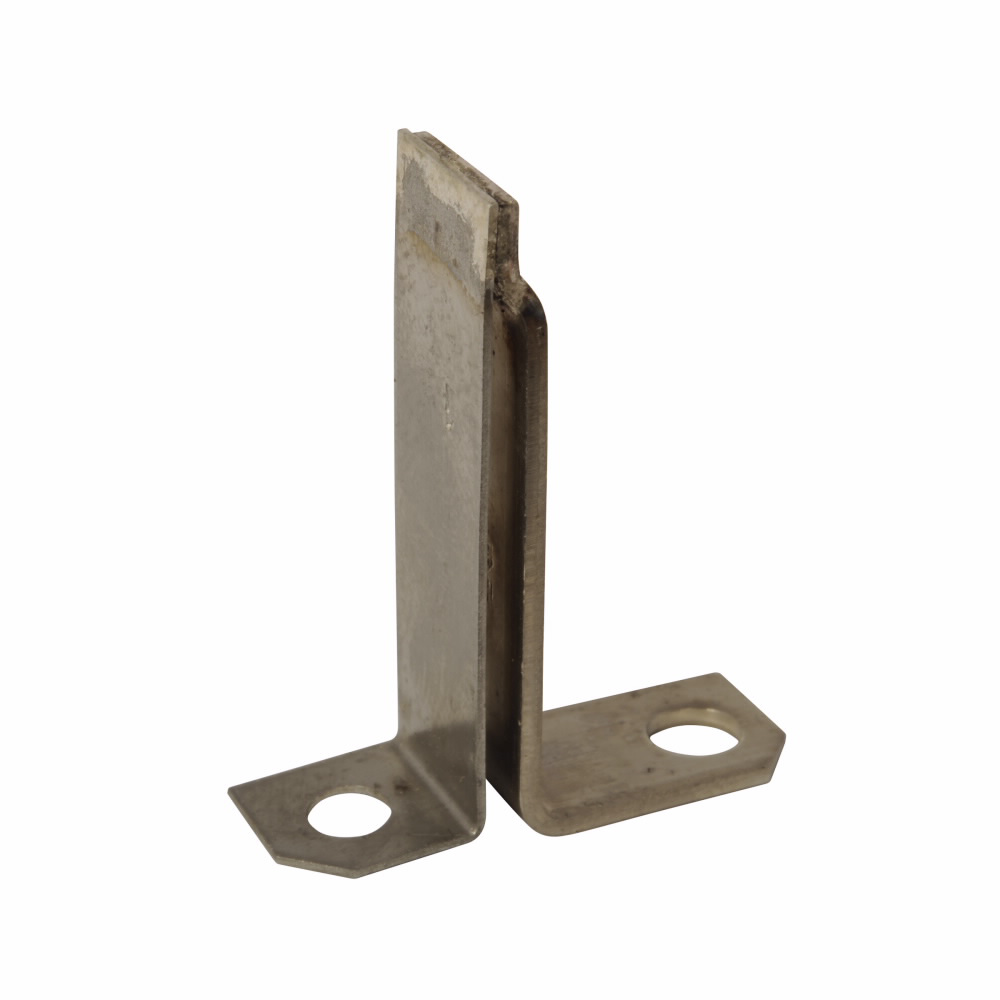

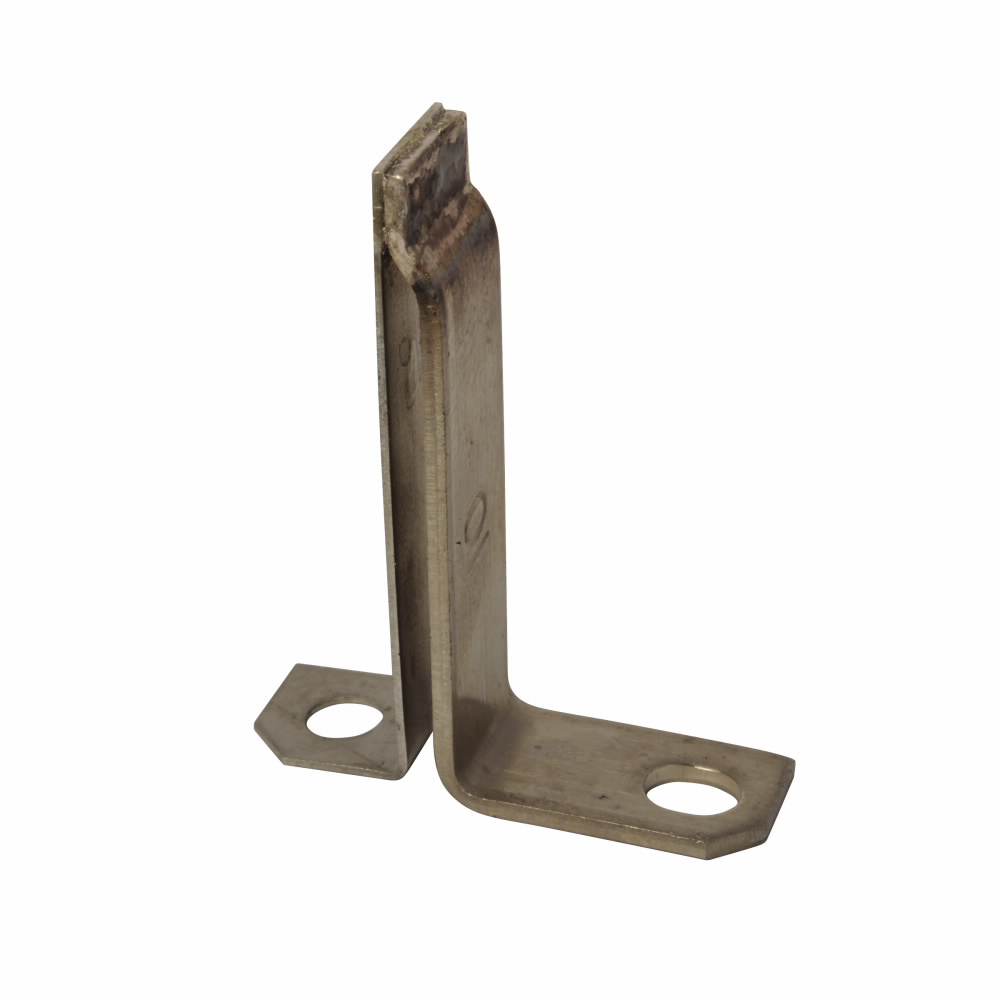

Eaton A200/B100 Heater – Thermal and Fast Trip Overload Heater
The Eaton A200/B100 heater is designed for use with Starter Sizes 0, 1, and 2 in A200 and B100 motor controllers. This heater provides thermal and fast trip overload protection, ensuring reliable motor protection in industrial electrical control applications. It is compatible with NEMA-rated starters and supports ambient current ratings ranging approximately from 13.9 to 18.9 amperes, suitable for use by electrical distributors and switchgear suppliers requiring precise overload relay heaters for wire and cable control circuits.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: FH46
- Product Weight: 0.0300 lb
- Dimensions (L x W x H): 2.1 in x 1.3 in x 0.8 in
- Compatible Starter Sizes: 0, 1, and 2
- Type: A and B
- Overload Protection: Thermal and Fast Trip
- Ambient Current Range: 13.9 to 18.9 A (Non-Compensated and Ambient Compensated)
Features
- Designed for use with Eaton A200 and B100 motor controllers
- Supports NEMA-rated starters for versatile industrial applications
- Ensures motor overload protection with thermal and fast trip characteristics
- Compact size for easy installation in starter assemblies
- Provides reliable trip performance within specified ambient current ranges
