Eaton 3MM residential meter stack, Multiple metering, 125A, Copper, Bus:800A, No bypass, Indoor, Depends on selected MCB, Five-jaw, Sockets:3, Three-phase in, single-phase out, A-B, BR2_, BRH2_, BRHH2_, BRX2, Ring, Socket:125A, 120/208 Vac
SKU: #157861
Part: #3MM312C2AB
UPC: 782114631881
Eaton 3MM residential meter stack, Multiple metering, 125A, Copper, Bus:800A, No bypass, Indoor, Depends on selected MCB, Five-jaw, Sockets:3, Three-phase in, single-phase out, A-B, BR2_, BRH2_, BRHH2_, BRX2, Ring, Socket:125A, 120/208 Vac
SKU: #157861
Part: #3MM312C2AB
UPC: 782114631881
Description

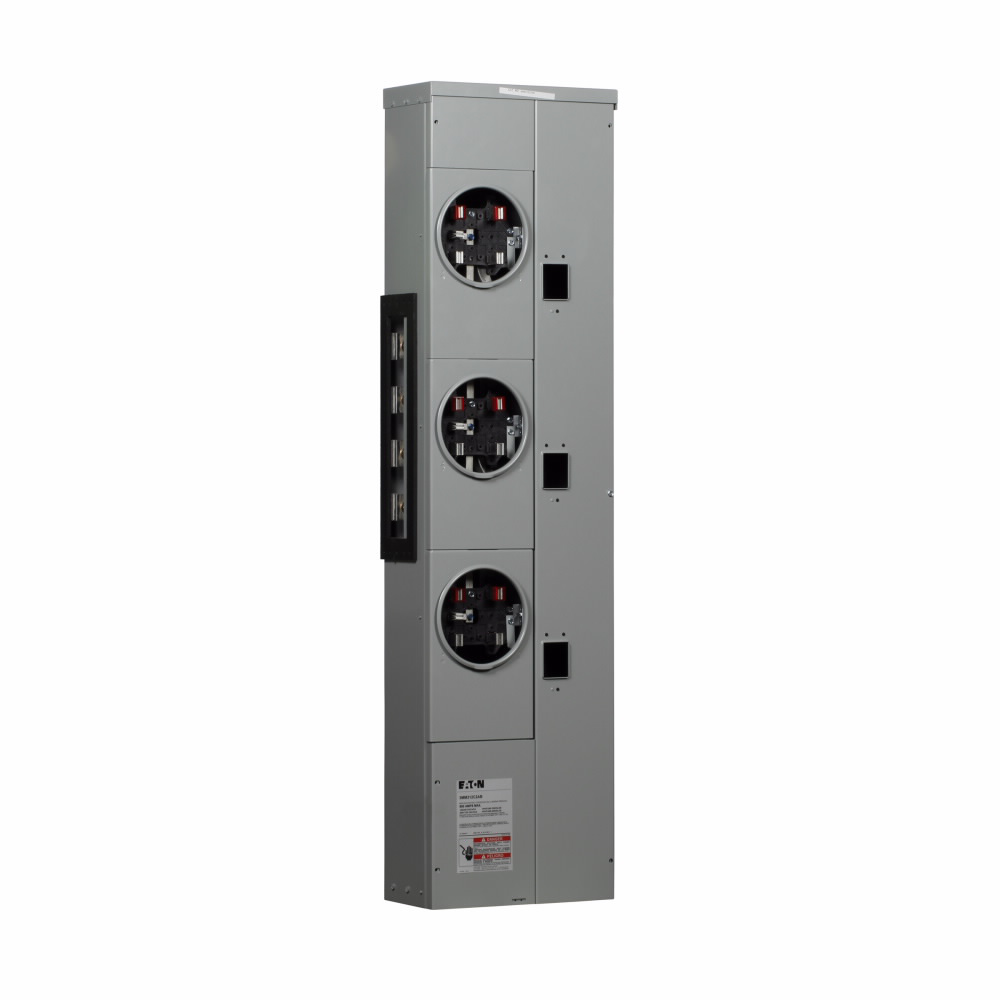

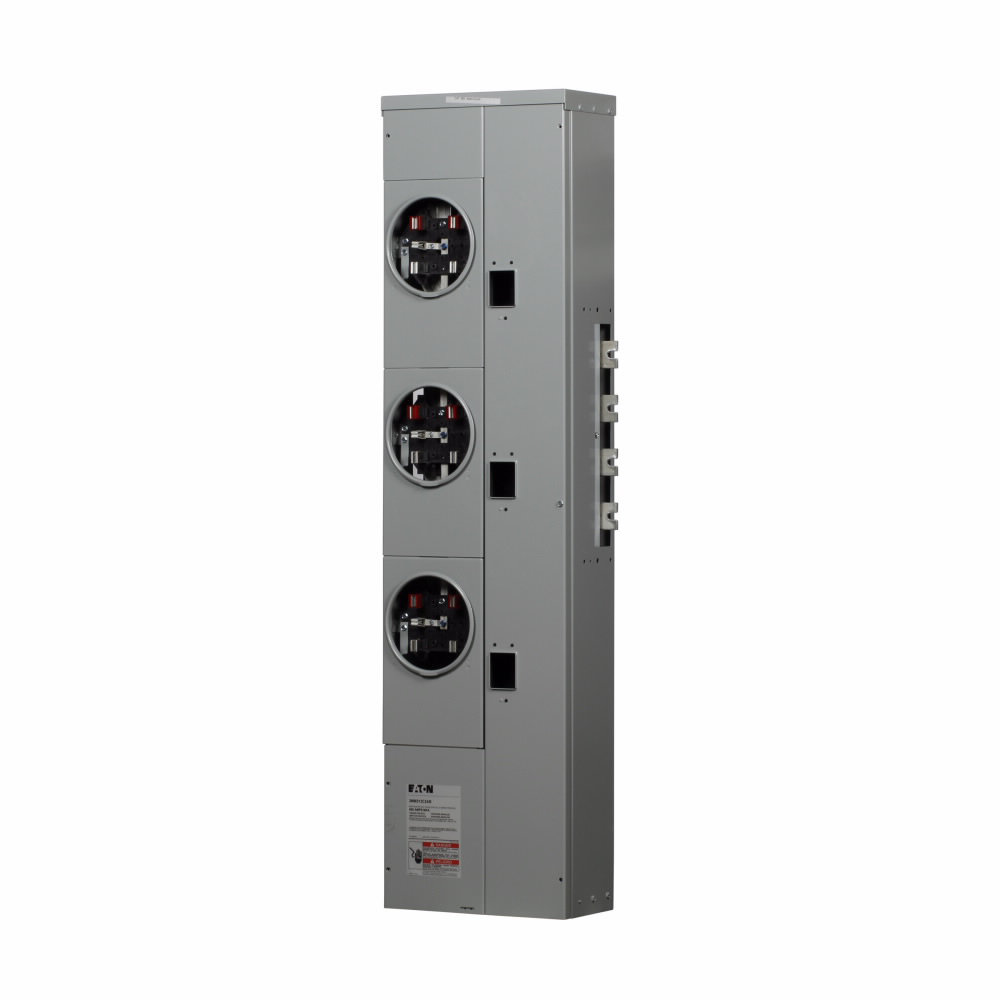

Eaton 3MM Residential Meter Stack - Multiple Metering Solution
The Eaton 3MM residential meter stack is designed for multiple metering applications, providing a reliable solution for electrical distributors and switchgear suppliers. This indoor meter stack supports a 125A rating with a copper bus rated at 800A, suitable for three-phase in, single-phase out configurations. It is ideal for residential settings requiring dependable multi-metering with no bypass and five-jaw sockets, ensuring accurate electrical measurement and distribution.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: 3MM312C2AB
- Product Weight: 57 lbs
- Dimensions (W x H x L): 7.01 in x 41.8 in x 12.26 in
- Bus Ampacity: 800A
- Meter Socket Rating: 125A
- Material: Copper Bus
- Number of Sockets: 3
- Phase Configuration: Three-phase in, single-phase out
- Voltage: 120/208 VAC
- Bypass: No bypass
- Jaw Type: Five-jaw
- Enclosure: Indoor
Features
- Multiple metering positions for residential applications
- Copper bus rated at 800A for enhanced conductivity and durability
- Five-jaw sockets ensuring secure and stable meter connections
- Compatible with Eaton’s modular metering stacks and tenant circuit breakers
- Indoor-rated enclosure suitable for protected installations
- Designed to meet utility specifications including CECHA approvals
