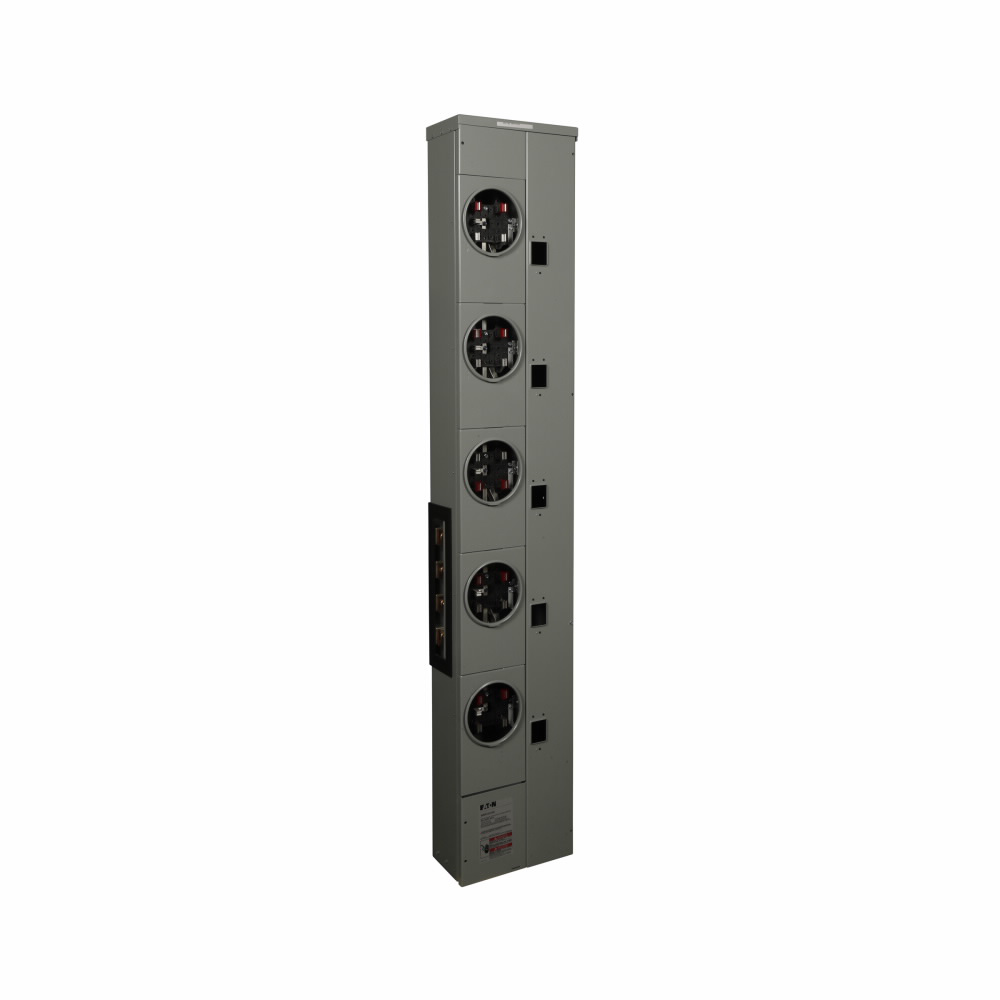

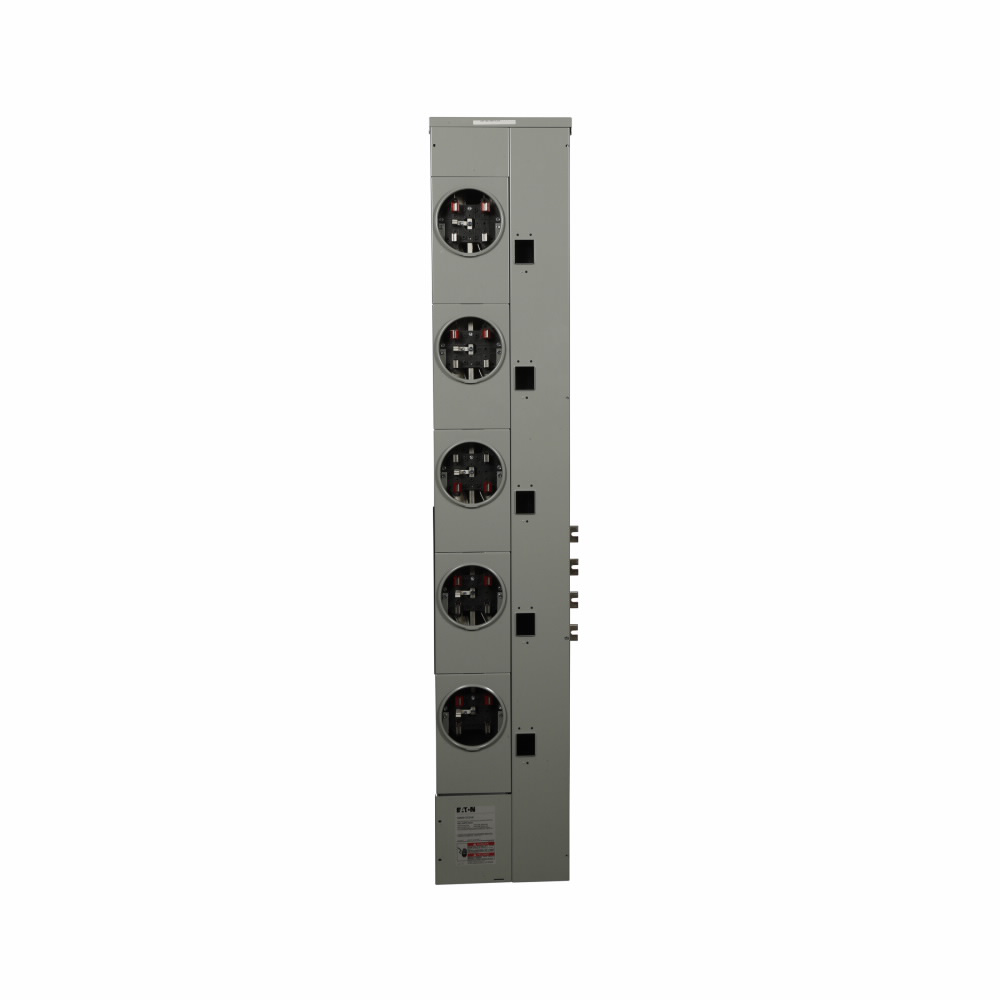

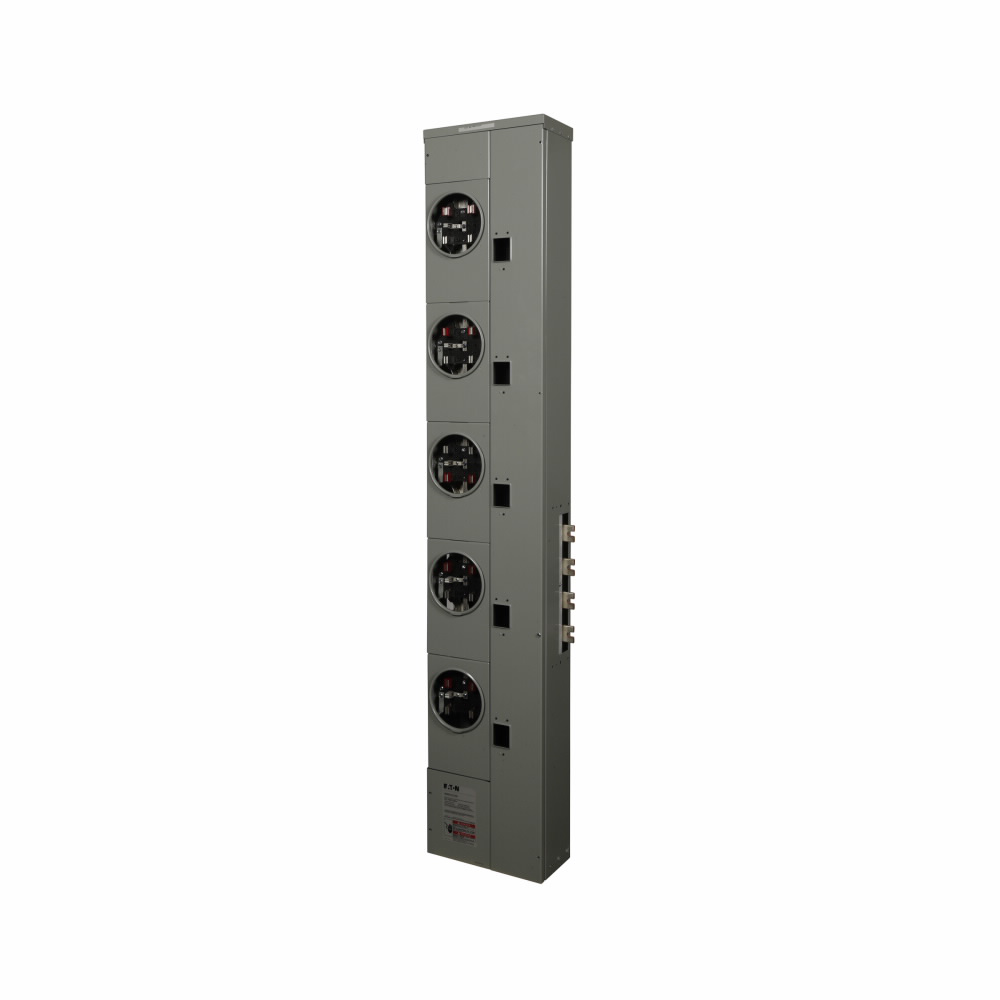

Eaton 3MM residential meter stack, Multiple metering, 125 A, Copper, Bus:800 A, No bypass, Indoor, Depends on selected MCB, Five-jaw, Sockets:5, Three-ph in, single-ph out, A-B, BR2_, BRH2_, BRHH2_, BRX2, Ring, Socket:125 A, 120/208 Vac
SKU: #157902
Part: #3MM512C2AB
UPC: 782116940066
Eaton 3MM residential meter stack, Multiple metering, 125 A, Copper, Bus:800 A, No bypass, Indoor, Depends on selected MCB, Five-jaw, Sockets:5, Three-ph in, single-ph out, A-B, BR2_, BRH2_, BRHH2_, BRX2, Ring, Socket:125 A, 120/208 Vac
SKU: #157902
Part: #3MM512C2AB
UPC: 782116940066
Next day delivery
Description
Eaton 3MM Residential Meter Stack – Multiple Metering Solutions
The Eaton 3MM residential meter stack is designed for multiple metering applications in indoor residential electrical distribution systems. It supports a bus rating of 800 A and meter sockets rated for 125 A at 120/208 Vac, suitable for three-phase in, single-phase out configurations. This product is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking reliable residential metering equipment for multi-tenant or multi-circuit installations.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: 3MM512C2AB
- Metering Type: Multiple Metering
- Bus Rating: 800 A
- Meter Socket Rating: 125 A
- Voltage: 120/208 Vac
- Phase: Three-phase in, single-phase out
- Number of Sockets: 5
- Socket Type: Five-jaw
- Bypass: No bypass
- Installation: Indoor
- Material: Copper bus
- Dimensions (L x W x H): 12.26 in x 7.01 in x 8 in
- Product Weight: 86 lbs
- UPC: 782116940066
Features
- Supports multiple metering in a compact stack design
- Copper bus for superior conductivity and durability
- Five-jaw meter sockets for secure meter connection
- Indoor rated for residential applications
- Designed to accommodate a variety of Eaton MCBs (depends on selected MCB)
- Compatible with Eaton residential meter stack configurations including A-B, BR2_, BRH2_, BRHH2_, BRX2, and Ring types
