Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, 65 mm, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Momentary, Jumbo mushroom , Red actuator, EMERGENCY STOP (engraved button), Chrome bezel, Anodized aluminum actuator
SKU: #157051
Part: #10250T33-POP
UPC: 782114408490
Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, 65 mm, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Momentary, Jumbo mushroom , Red actuator, EMERGENCY STOP (engraved button), Chrome bezel, Anodized aluminum actuator
SKU: #157051
Part: #10250T33-POP
UPC: 782114408490
Next day delivery
Description

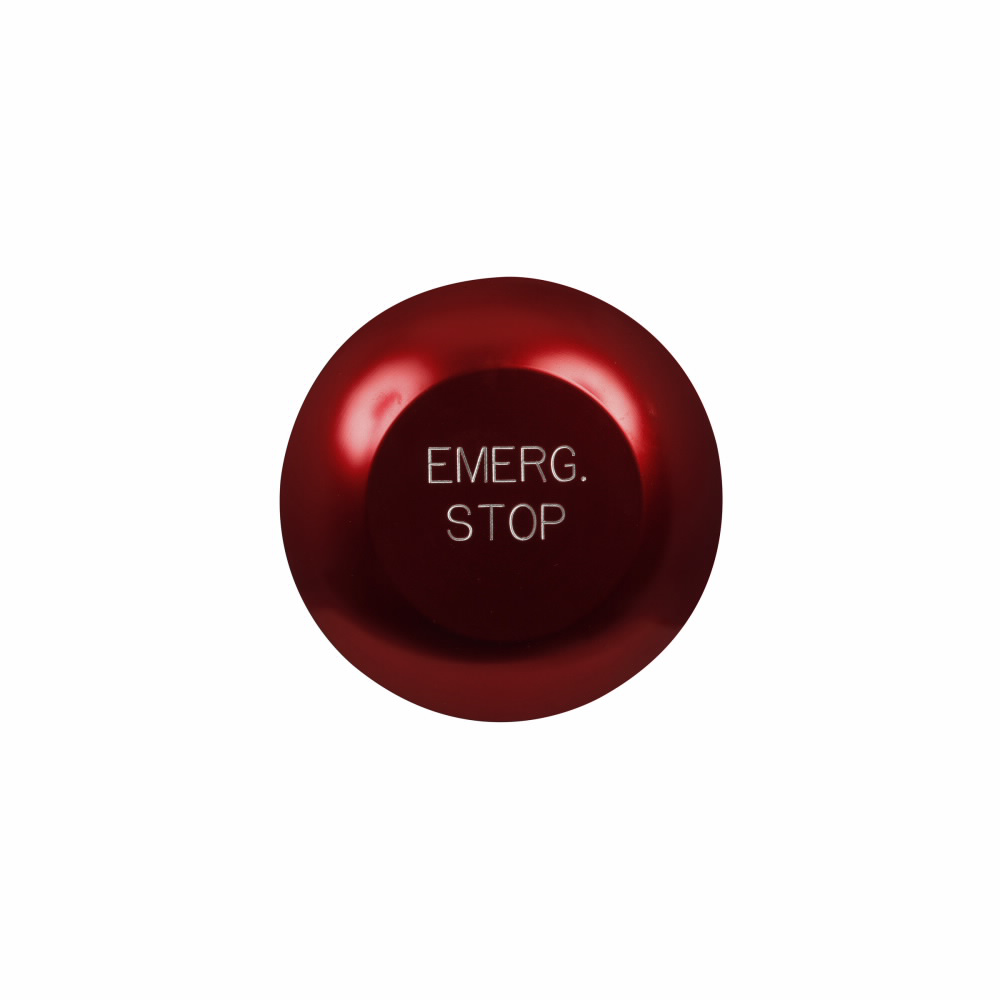

Eaton 10250T Pushbutton Emergency Stop - Heavy-Duty Control Solutions
The Eaton 10250T pushbutton is a heavy-duty, 30.5 mm pilot device designed for reliable emergency stop applications in industrial environments. This non-illuminated, momentary pushbutton features a jumbo mushroom red actuator with an engraved "EMERGENCY STOP" legend, making it suitable for safety-critical control stations. Ideal for electrical distributors, switchgear suppliers, and lighting solutions providers, this device offers secure and durable operation in demanding conditions.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: 10250T33-POP
- Actuator: Jumbo Mushroom
- Contact Configuration: 1NO-1NC
- Bezel Color: Chrome
- Bus Material: Zinc Die Cast
- Dimensions (L x W x H): 7 in x 6 in x 3 in
- Product Weight: 0.43 lbs
- UPC: 782114408490
- Ingress Protection: NEMA 3, 3R, 4, 4X, 12, 13 (when mounted in similarly rated enclosures)
- Standards & Certifications: CE EN60947-5-1, UL508, CSA C22.2 No. 13
Features
- Heavy-duty zinc die cast construction with chrome-plated bezel
- Non-illuminated, momentary contact operation for emergency stop functionality
- Engraved "EMERGENCY STOP" on red jumbo mushroom actuator for high visibility
- Reliable 1NO-1NC contact configuration with enclosed silver contacts and reliability nibs
- Drainage holes and diaphragm seals prevent liquid buildup, supporting operation in freezing environments
- Grounding nibs ensure secure grounding by biting through coatings
- Slow make and break contact operation enhances safety with positive opening NC contacts
