Easy-Twist™ Winged Red - Carton
SKU: #305731
Part: #WWC-R-C
UPC: 662381361745
Easy-Twist™ Winged Red - Carton
SKU: #305731
Part: #WWC-R-C
UPC: 662381361745
Description

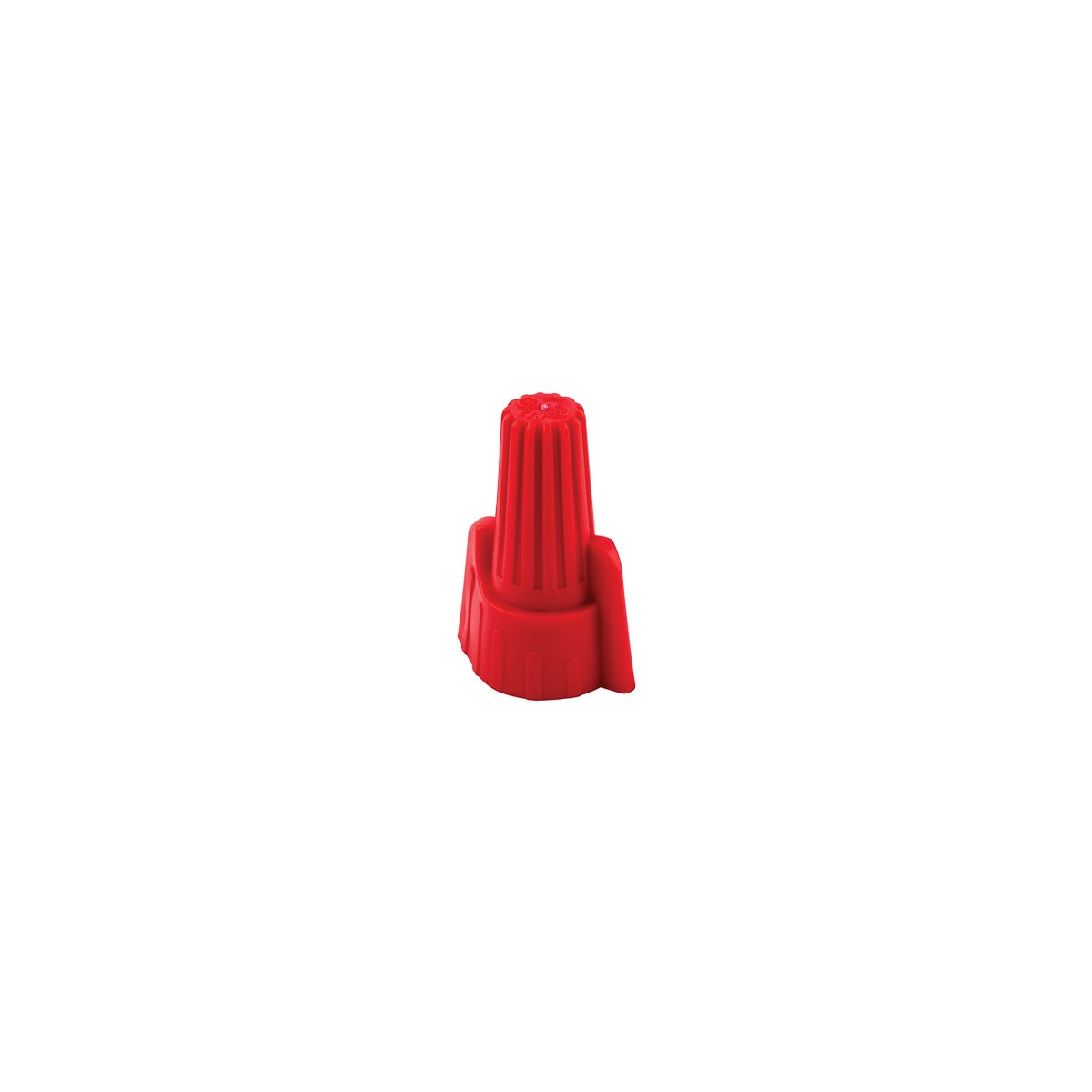

Easy-Twist™ Winged Red - Carton Wire Connectors
The Easy-Twist™ Winged Red wire connectors by NSI Industries are designed for secure and reliable electrical connections in wire and cable installations. Suitable for use by electrical distributors and switchgear suppliers, these connectors accommodate 18-8 AWG wire sizes and provide excellent electrical insulation for lighting solutions and general electrical wiring applications.
Specifications
- Wire Range: 18-8 AWG
- Color: Red
- Dimensions (HxWxL): 1.252 in x 0.906 in x 0.906 in
- Temperature Rating: 105°C (221°F)
- Maximum Voltage: 600 V
- Standard Package Quantity: 100
- Manufacturer Part Number: WWC-R-C
- Product Weight: 0.7920 lbs
Features
- Flame retardant UL 94V-2 thermoplastic shell provides excellent electrical insulation
- Fixed, precise square wire spring ensures secure gripping of conductors
- Deep skirt entry protects against flashover and shorts
- Sure-grip ribs enhance gripping ability and comfort during installation
- Compact design allows proper installation in tight spaces
- Threaded funnel entry guides wires easily into the connector
- Pre-twisting of wires is not necessary
- Rated for 1,000 volts maximum in fixtures and signs
