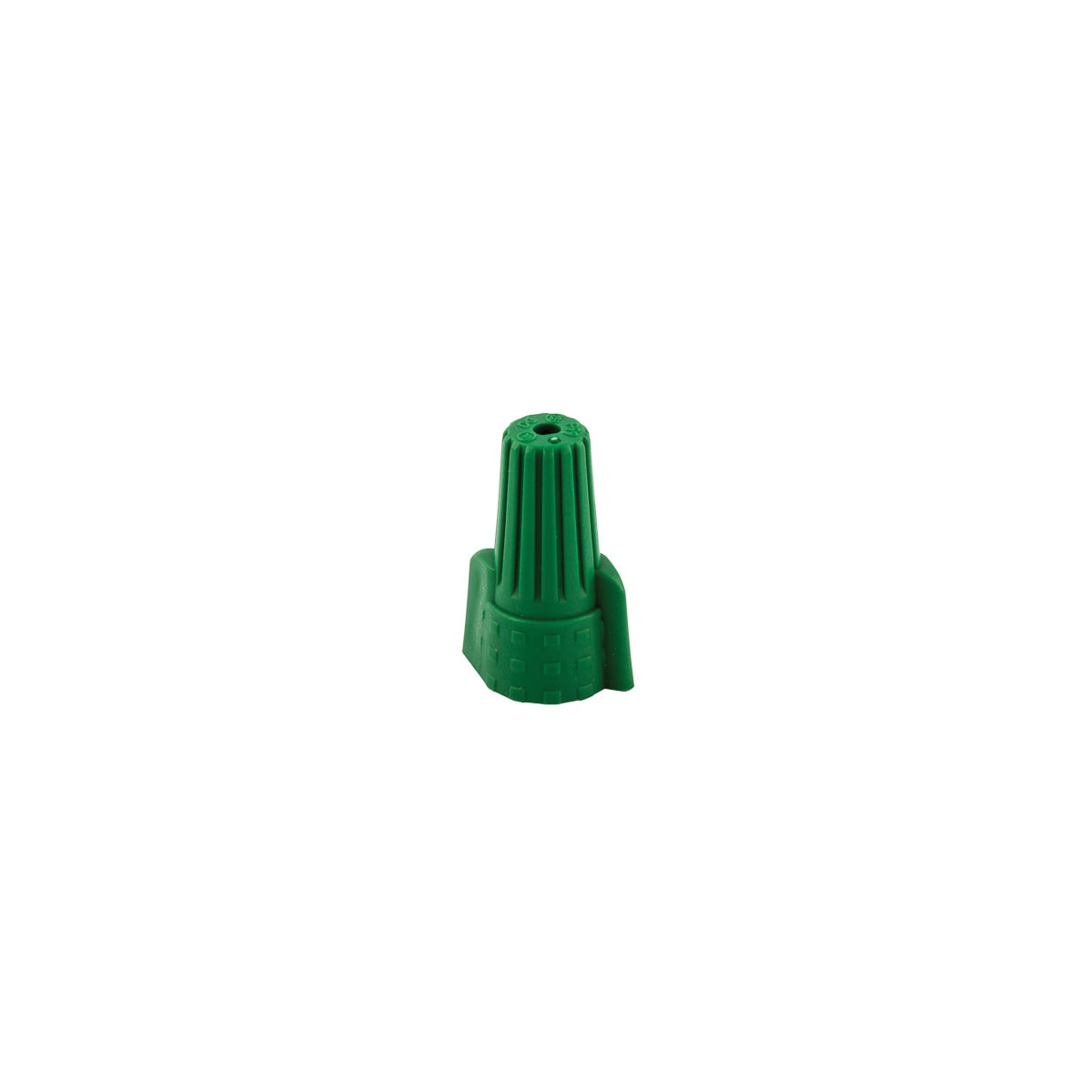

Easy-Twist‚Ñ¢ Winged Green - Carton Grounding Wire Connector

The Easy-Twist‚Ñ¢ Winged Green wire connector by NSI Industries is designed specifically for grounding wire applications using copper wire. This winged twist-on connector provides reliable electrical insulation and secure conductor connections, making it suitable for electrical distributors and switchgear suppliers requiring dependable grounding solutions.

Specifications

• Application: Grounding Wire
• Material: Thermoplastic
• Color: Green
• Dimensions: 1.134 in (Height) x 0.795 in (Width) x 0.795 in (Length)
• Product Weight: 0.6820 lbs
• Wire Type: CU Wire Only
• Temperature Rating: 105 ¬∞C
• UL Listing: UL 467 Listed Grounding and Bonding (WWC-GR series)
• Voltage Rating: 600V max, 1,000V max in fixtures and signs (per WWC series specs)
• Manufacturer: NSI Industries
• Manufacturer Part #: WWC-GR-C

Features

• Winged twist-on design for improved torque and handling comfort
• Flame retardant UL 94V-2 thermoplastic shell providing excellent electrical insulation
• Deep surface ridges for better grip during installation
• Fixed, precise square wire spring ensures secure conductor gripping
• Threaded funnel entry guides wires easily into the connector
• Compact design suitable for tight spaces
• Zinc-plated springs for low contact resistance
• Pre-twisting of wires is not required
• UL 486C Listed wire connector E155027
• Socket installation tools included with bagged products (not applicable for carton packaging)
