Easy-Twist™ Winged Blue - Carton
SKU: #305694
Part: #WWC-B-C
UPC: 662381361608
Easy-Twist™ Winged Blue - Carton
SKU: #305694
Part: #WWC-B-C
UPC: 662381361608
Description

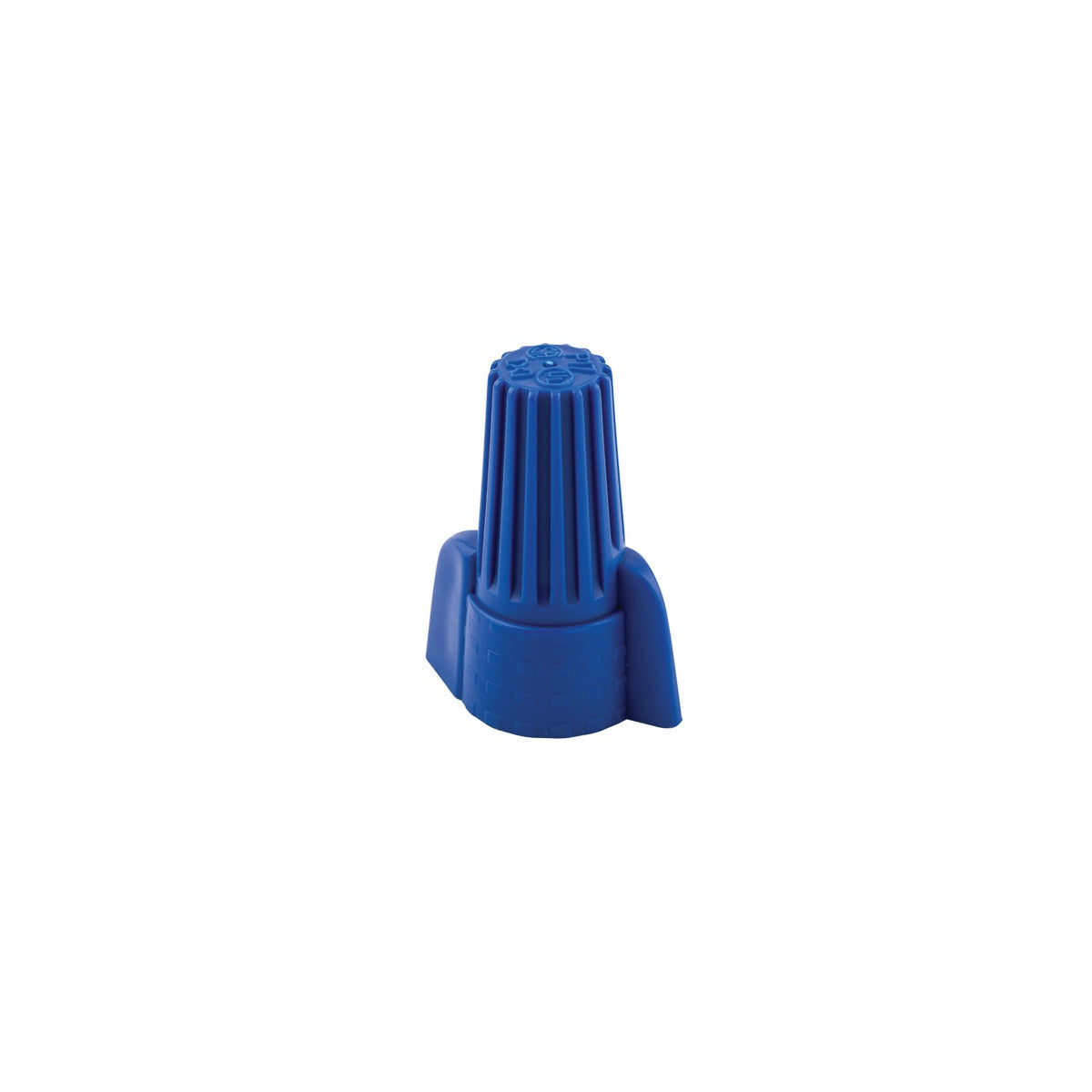

Easy-Twist™ Winged Blue - Wire Connectors for Electrical Distribution
The Easy-Twist™ Winged Blue wire connector is designed for splicing copper wires in electrical distribution and lighting solutions. Manufactured by NSi Industries, this winged twist-on connector provides secure, reliable connections with enhanced grip and electrical insulation, suitable for use by electrical distributors and switchgear suppliers handling wire and cable installations.
Specifications
- Application: Splicing Wire
- Color: Blue
- Material: Thermoplastic
- Finish: Thermoplastic
- Wire Type: Copper Wire Only
- Temperature Rating: 105 °C (221 °F)
- Dimensions: 1.26 in (Width) x 1.575 in (Height) x 1.26 in (Length)
- Product Weight: 0.8960 lbs
- Voltage Rating: 600V max, 1000V max in fixtures and signs
- Manufacturer Part #: WWC-B-C
- UPC: 662381361608
- UL Listed: UL 486C (E155027)
Features
- Deep surface ridges and swept-back wing design provide better grip and increased torque ability
- Fixed, precise square wire spring ensures secure gripping of conductors
- Flame retardant UL 94V-2 thermoplastic shell offers excellent electrical insulation
- Deep skirt entry protects from flashover and shorts
- Compact design for easy installation in tight spaces
- Threaded funnel entry guides wires into the connector easily, eliminating the need for pre-twisting
- Zinc-plated springs reduce contact resistance
- Compatible with pneumatic or electrical tools having a 1/4" chuck or drive socket
