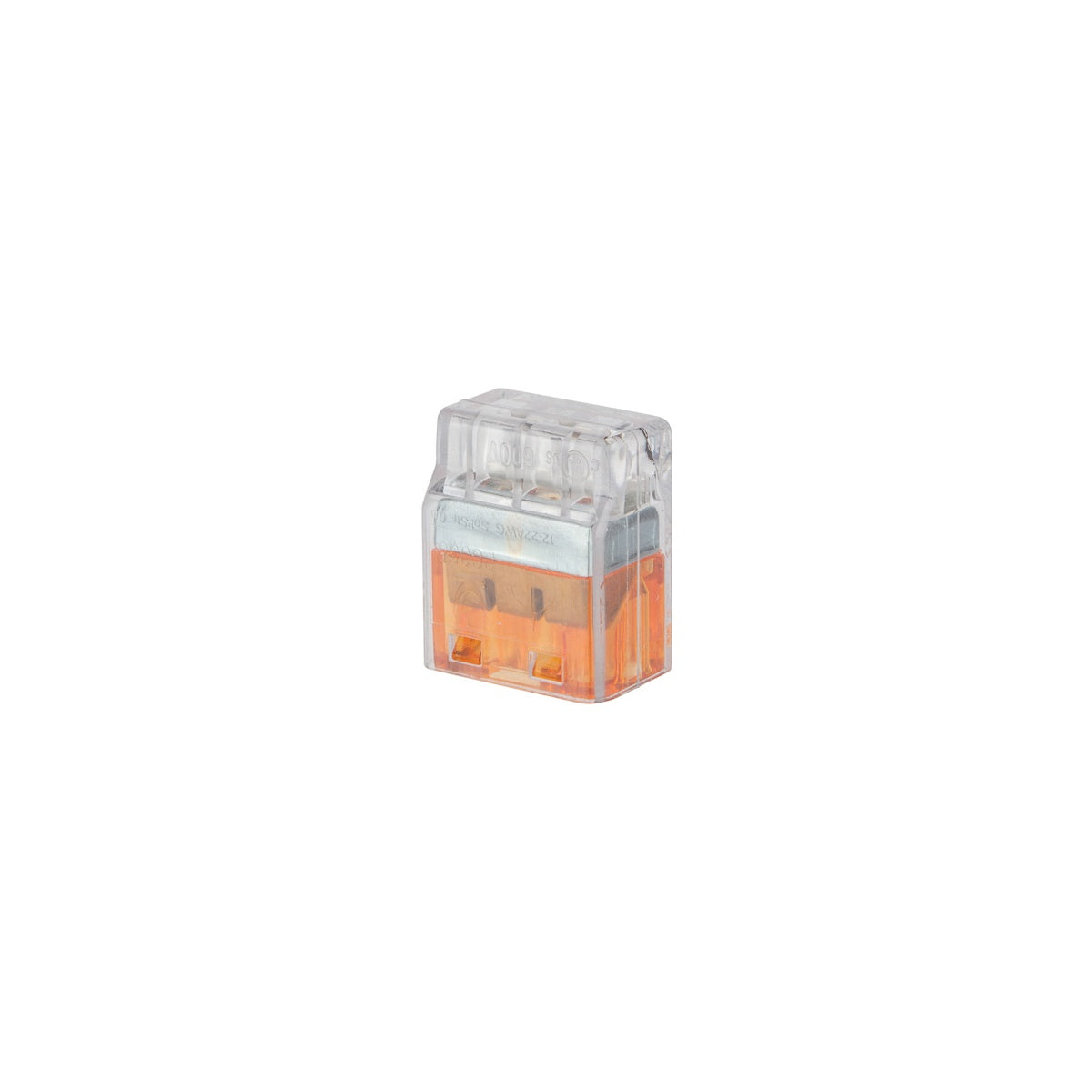

Easy-Twist‚Ñ¢ Push-In-Connector (3 Wire) Orange - Wire Connectors for Electrical Distribution

The Easy-Twist™ Push-In-Connector (3 Wire) Orange is designed for splicing 22-12 AWG solid or stranded copper wire. This push-in wire connector provides a fast, safe, and reliable connection solution, ideal for electrical distributors and lighting solutions requiring efficient wire and cable management. Its compact design is suitable for tight spaces and supports applications up to 600 volts, with a temperature rating up to 105°C, making it a practical choice for switchgear suppliers and other electrical installations.

Specifications

• Application: Splicing Wire
• Wire Range: 22-12 AWG
• Number of Wires: 3
• Material: Polycarbonate
• Color: Orange
• Dimensions (L x W x H): 0.748 in x 0.626 in x 0.411 in
• Product Weight: 0.8520 lbs
• Temperature Rating: 105 ¬∞C
• Maximum Voltage: 600 V
• Wire Type Compatibility: Copper Wire Only
• Manufacturer: NSI Industries
• Manufacturer Part Number: PIWC-3-C

Features

• Push-in design enables quick and secure wire connections without twisting or taping
• UL 486C listed wire connector ensuring compliance with safety standards
• Made from UL 94V-2 flame retardant polycarbonate for durability and safety
• Integrated test port allows continuity testing without disconnecting wires
• Color-coded orange for easy identification
• Compact size ideal for tight installation spaces
• Compatible with 22-12 AWG solid or stranded copper wire
• Copper, tin-plated contacts with stainless steel spring and zinc-plated steel frame for reliable performance

Downloads & Links

• Technical Drawing
• Catalog Page
• Product Advertisement
• Sell Sheet
