Easy-Splice Gel 2/0 SL Splice Kit for Electrical Wire Connections

The Easy-Splice Gel 2/0 SL is a gel stub splice kit designed for insulating, sealing, and protecting stub splice connections in electrical wiring applications. Ideal for street light connections, this kit is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable splice solutions. It accommodates wire sizes from #14 to 2/0 AWG for feeder cables, with a dedicated port for powering lights using #14 to #6 AWG wires.

Specifications

• Wire Range: #14 to 2/0 AWG (feeder cable), #14 to #6 AWG (single port)
• Length: 2.76 in
• Width: 1.66 in
• Height: 1.185 in
• Temperature Rating: -40 ¬∞C to 90 ¬∞C
• Voltage Rating: Up to 1,000 volts
• Torque Value: 120-180 in/lbs (Hole A), 120-150 in/lbs (Hole B)
• UL Listed Connector for copper and aluminum conductors
• Country of Origin: Mexico

Features

• Specially formulated material offers excellent abrasion resistance, insulation value, and UV resistance
• Clear cap enables visual inspection of connector positioning during installation and service life
• Sealant gel provides corrosion protection
• Simple installation by pushing the cover over the connection and snapping the clamp closed

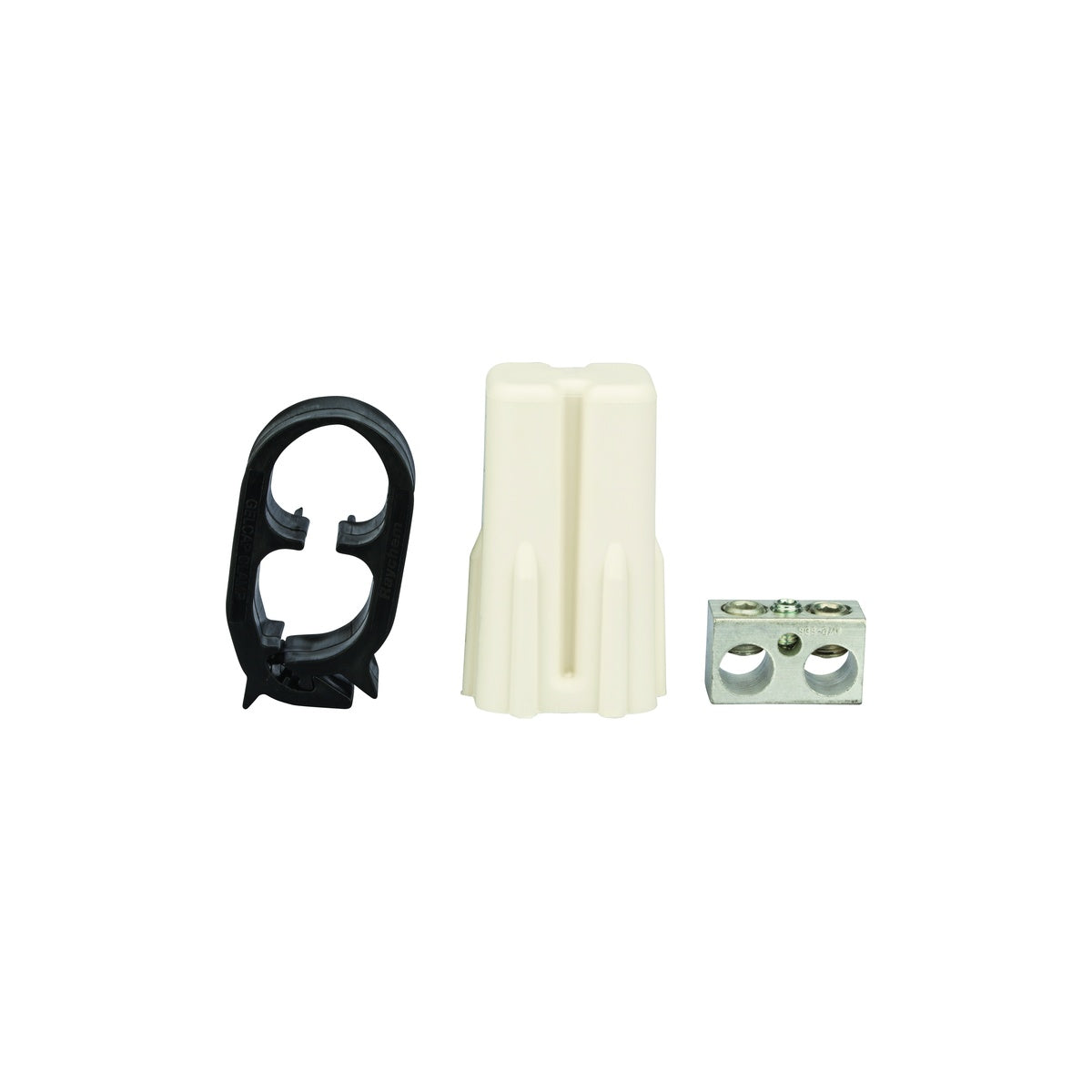

• Includes UL listed connector, gel-filled cap, and cap clamp
• Tested for chemical resistance, ozone resistance, accelerated aging, UV resistance, and abrasion resistance
