Easy Splice ALCU Butt Splice 250
SKU: #305528
Part: #SKAB-250
UPC: 662381169167
Easy Splice ALCU Butt Splice 250
SKU: #305528
Part: #SKAB-250
UPC: 662381169167
Description

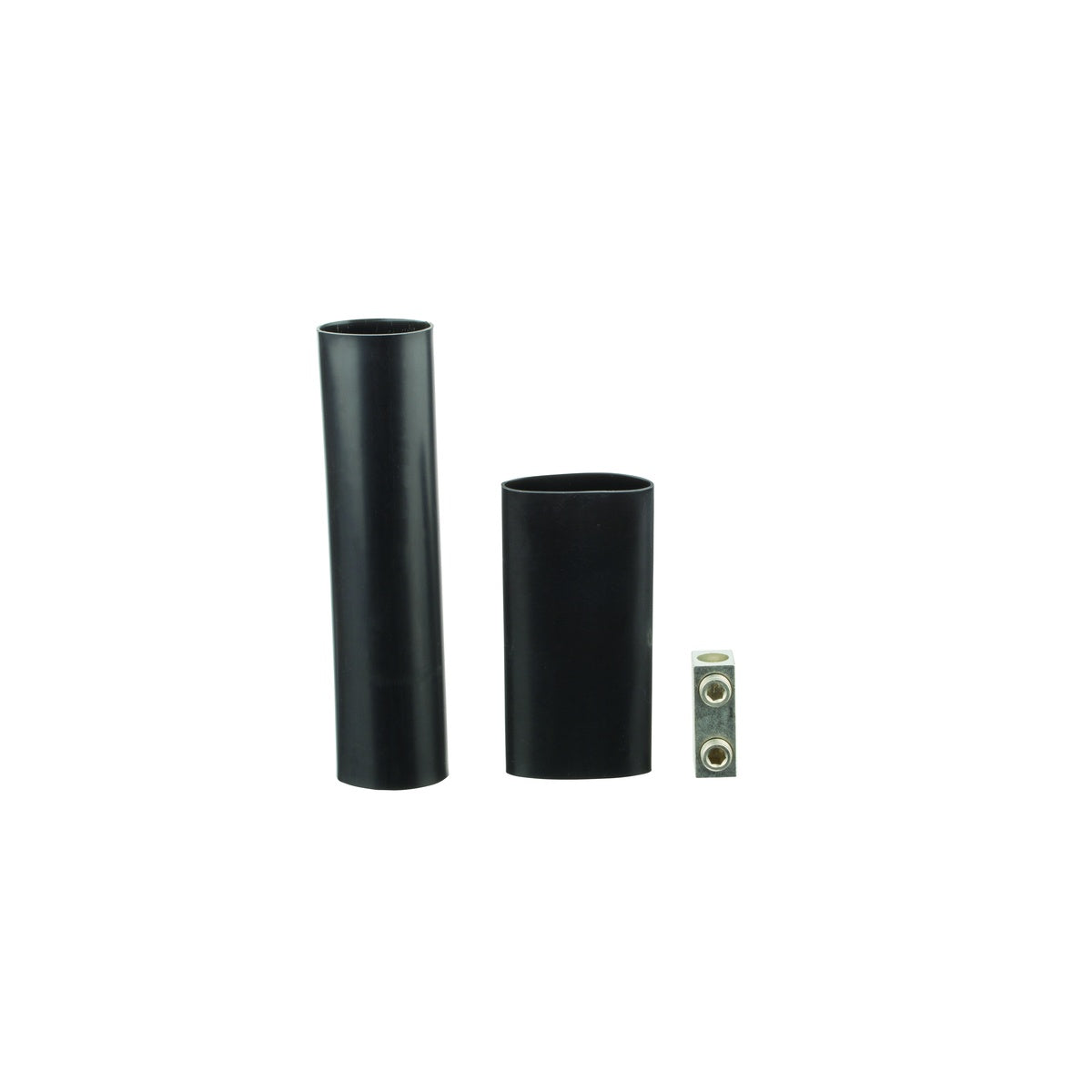

Easy Splice ALCU Butt Splice 250 Direct Burial Splice Kit
The Easy Splice ALCU Butt Splice 250 is a dual rated direct burial splice kit designed for splicing wire sizes from 1/0 AWG to 250 MCM. It utilizes a mechanical dual rated splice combined with matched heavy wall heat shrink tubing to create an insulated splice suitable for both copper and aluminum cables. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable splicing solutions for underground or direct burial applications.
Specifications
- Application: Splicing Wire
- Cable Size: 1/0 AWG - 250 MCM
- Cable Type: Class A-B
- Insulation: Heat Shrink
- Number Of Cables: 2
- Operating Temperature: -40°C to 90°C
- Temperature Rating: 105°C
- Voltage Rating: 600 Volt Maximum
- Dimensions: 9 in (Length) x 2.1 in (Width) x 2.1 in (Height)
- Color: Black
- Product Weight: 0.3760 lbs
- Country of Origin: India
- Manufacturer: NSI Industries
- Manufacturer Part #: SKAB-250
Features
- Mechanical dual rated splice for copper and aluminum cables
- Heavy wall heat shrink tubing provides insulated, direct burial splice
- Dual rated design supports Class A and B cable types
- Suitable for use in underground and direct burial applications
- Temperature rating up to 105°C and voltage rating up to 600V
