Easy Splice AL-CU Direct Burial Butt Splice Kit
SKU: #305518
Part: #SKAB-2
UPC: 662381169105
Easy Splice AL-CU Direct Burial Butt Splice Kit
SKU: #305518
Part: #SKAB-2
UPC: 662381169105
Description
Easy Splice AL-CU Direct Burial Butt Splice Kit – Direct Burial Splice Kit

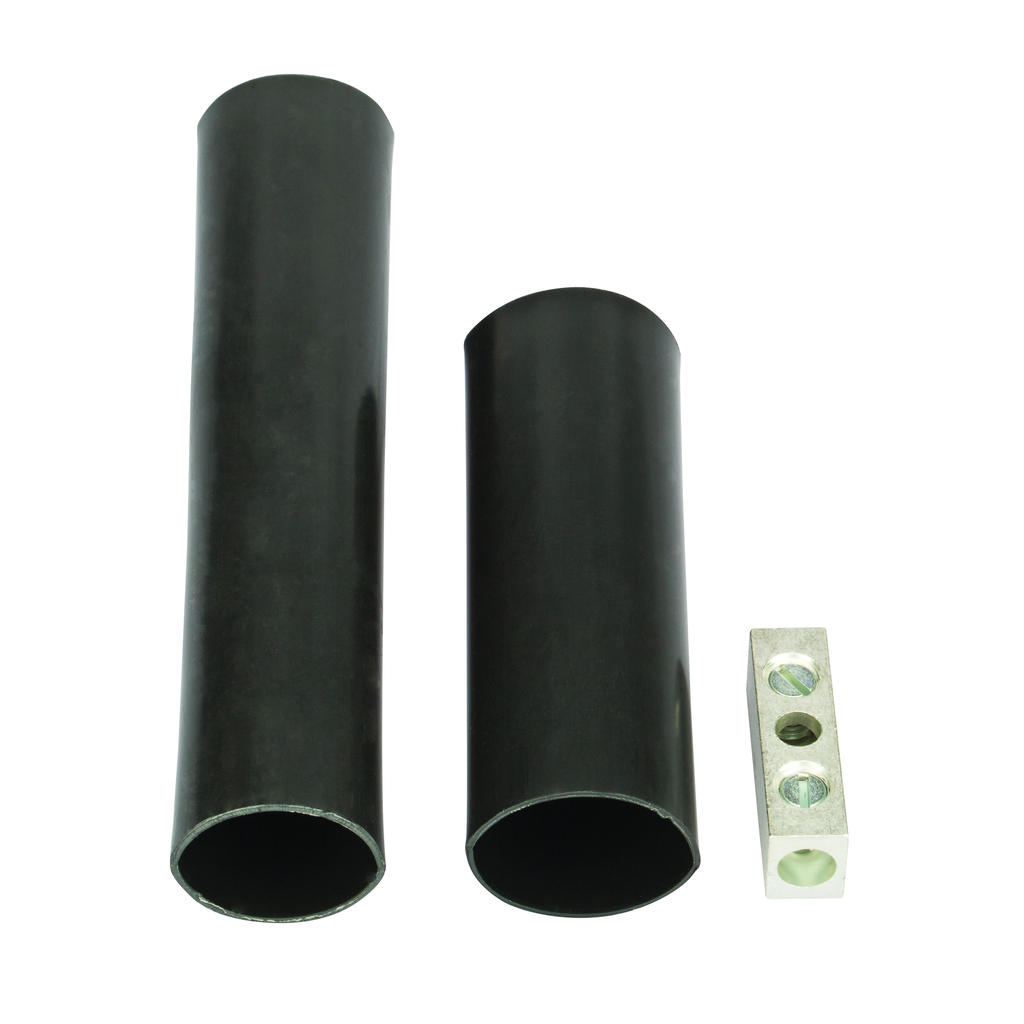

The Easy Splice AL-CU Direct Burial Butt Splice Kit by NSI Industries provides a mechanical dual rated splice solution for copper and aluminum cables ranging from #8 to #2 AWG. Designed for direct burial applications, this kit features heavy wall heat shrink tubing with sealant to ensure a fully insulated and durable splice. Suitable for electrical distributors and lighting solutions providers requiring reliable wire and cable splicing components, it supports use in harsh environments with a temperature rating up to 105°C and 600 volts maximum.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: SKAB-2
- Cable Size: 8-2 AWG
- Cable Type: Class A-B
- Number of Cables: 2
- Insulation: Heat Shrink
- Operating Temperature: -40°C to 90°C
- Dimensions (L x W x H): 6 in x 1.055 in x 1.055 in
- Color: Black
- Product Weight: 0.1020 lbs
- Voltage Rating: 600 Volt Maximum
- Temperature Rating: 105°C
- Country of Origin: United States
- Made in USA: Yes
Features
- Mechanical dual rated splice for copper and aluminum cables
- Heavy wall heat shrink tubing with sealant for insulated, moisture-resistant splices
- Four-position connector included for secure wire splicing
- Suitable for direct burial and submersible splice applications
- UL Listed for safety and reliability
