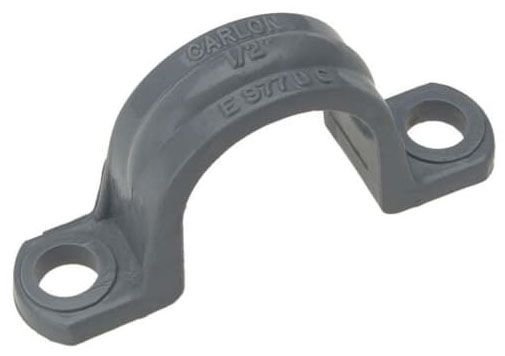

E977DC Conduit Clamp – PVC Electrical Fitting

The E977DC conduit clamp by Carlon is a non-metallic support strap designed for securing 1/2 inch trade size conduits in electrical installations. Manufactured from durable PVC with a gray finish, this clamp offers chemical resistance consistent with Carlon non-metallic conduits, making it suitable for corrosion-resistant systems. It is UV inhibited for direct sunlight exposure, complying with conduit spacing requirements per NEC Section 352.30 and related codes. This product is ideal for electrical distributors and switchgear suppliers requiring reliable conduit management solutions.

Specifications

• Size: 1/2 inch
• Material: PVC
• Color: Gray
• Overall Dimensions: 2.16 in (Length) x 0.50 in (Width) x 1.04 in (Height)
• Number of Mounting Holes: 2
• Mounting Hole Size: 0.26 inch
• Standard Package Quantity: 100
• Product Weight: 2.0 lbs per 100 units
• Application: UV inhibited for use in direct sunlight
• Compliance: NEC 352.3

Features

• Non-metallic construction provides chemical resistance matching Carlon conduits
• Corrosion-resistant design suitable for outdoor and indoor electrical conduit installations
• UV inhibited for durability under direct sunlight exposure
• Closed saddle model with screw hole fastening for secure mounting
• Plastic sheathed for additional protection
