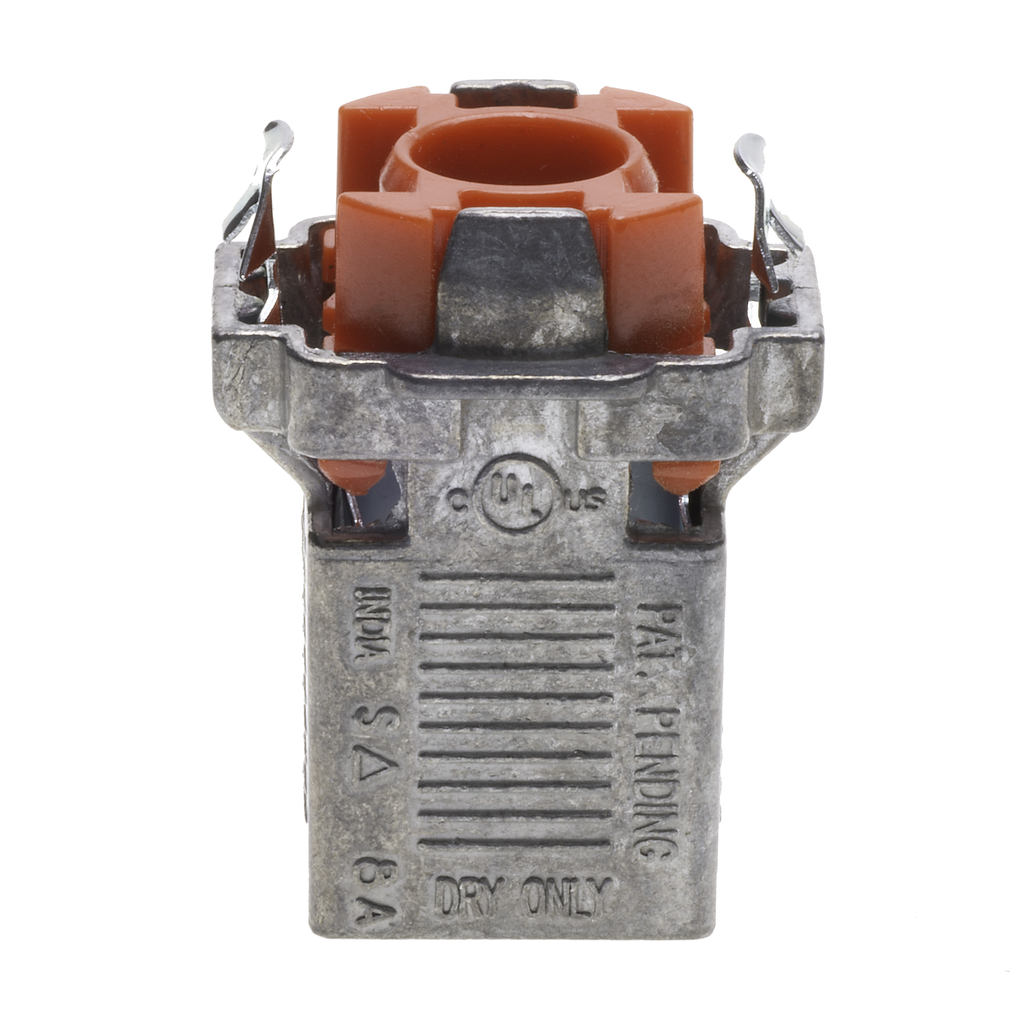

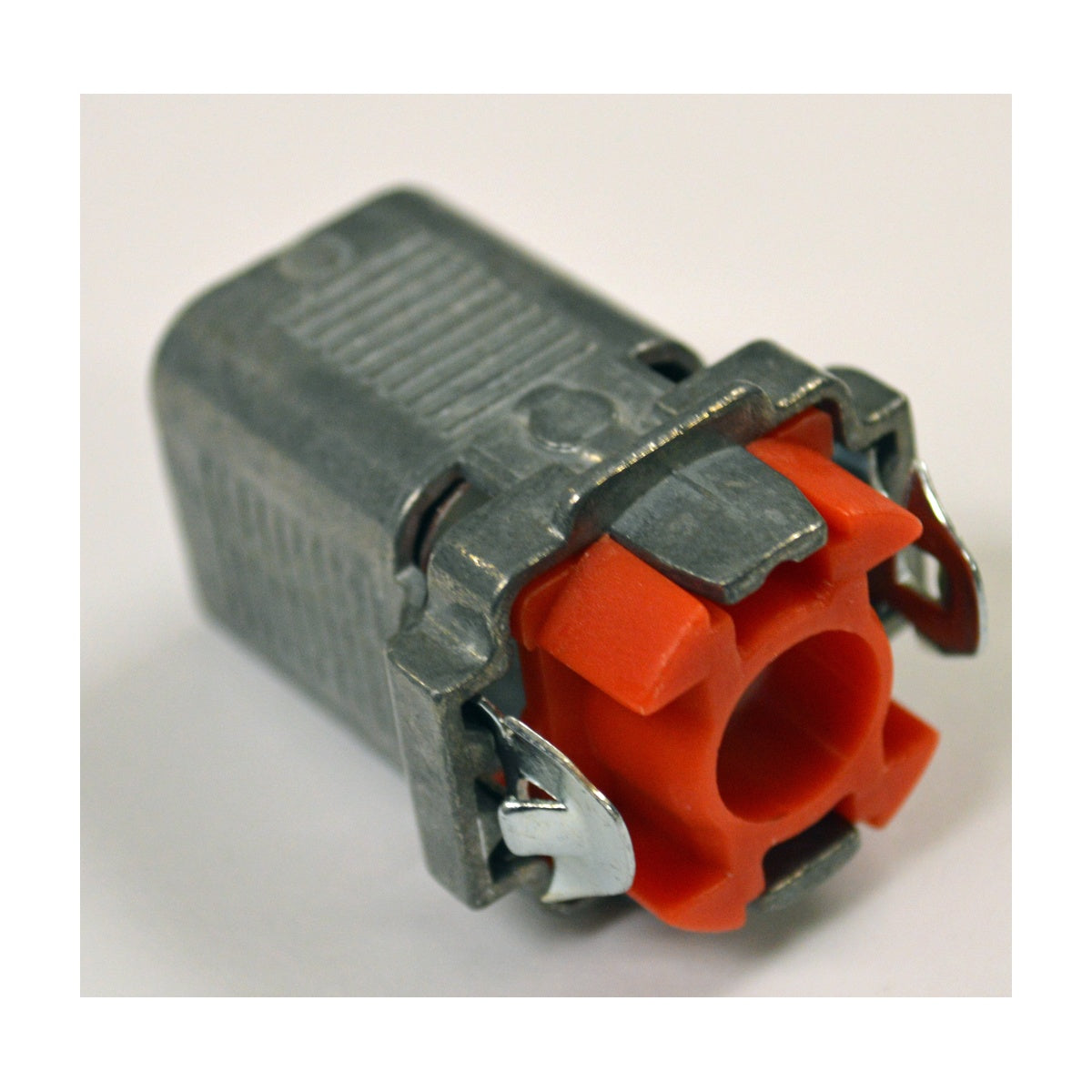

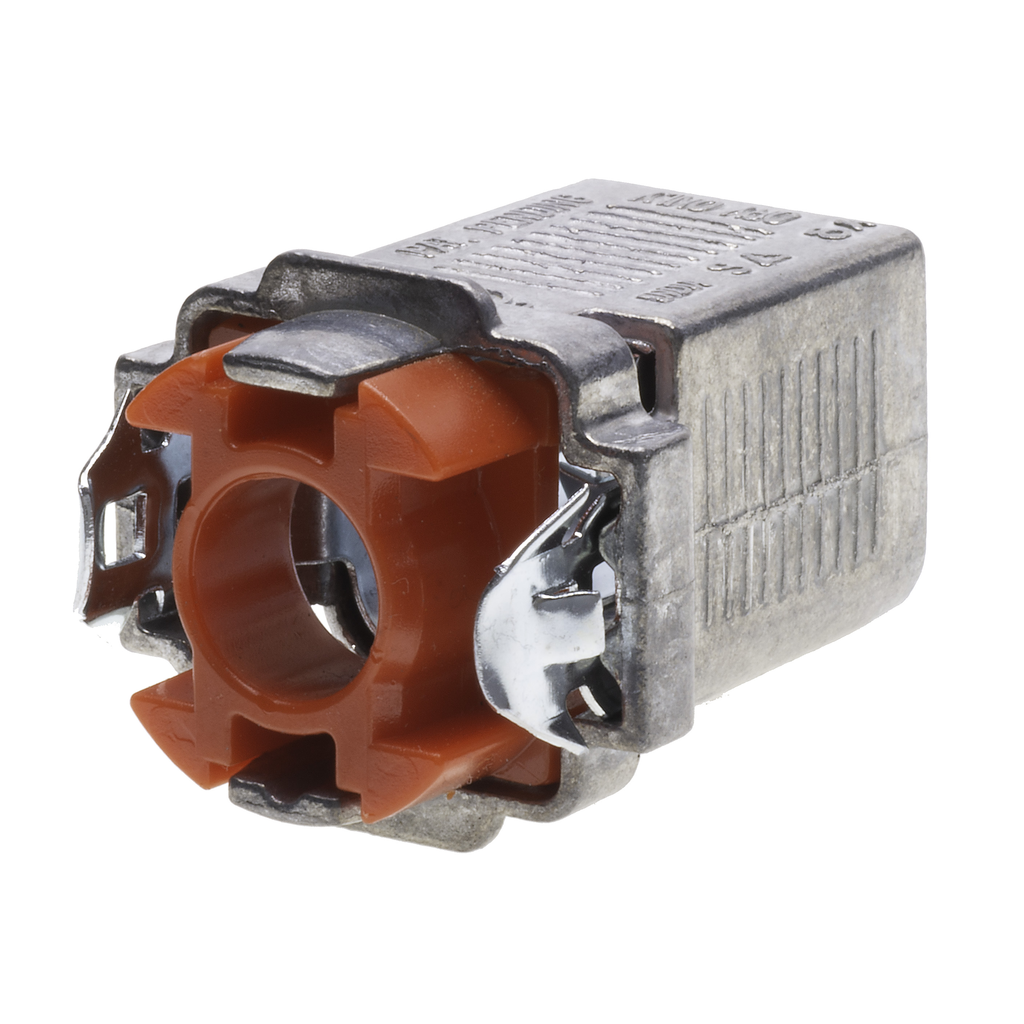

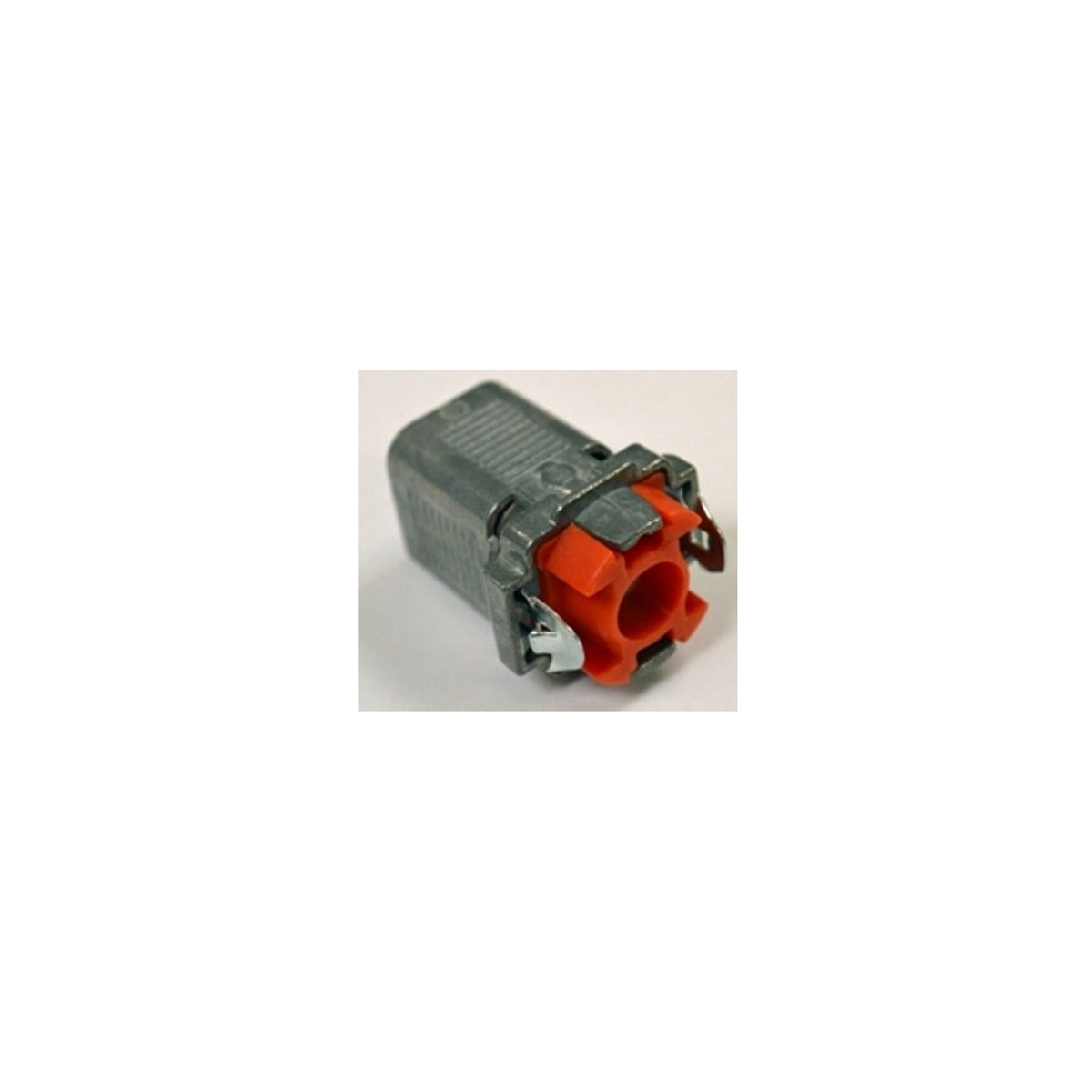

E-Z Lock® Insulated AC/MC Connector for New Work 3/8" Zinc Die Cast Connector

The Bridgeport Fittings 38ADS E-Z Lock® Insulated AC/MC Connector is designed for quick and tool-free installation by snapping the cable into place and then snapping the connector into a 1/2" knockout box. This connector is suitable for use with 14/2 to 10/3 (.40" to .63") Aluminum and Steel AC/MC/MCI-A/HCF cables, as well as 3/8" Aluminum and Steel FMC/RWFMC cables. It features an insulated throat rated up to 105°C to protect inner wiring from abrasion. This product is cULus Listed and meets bonding and grounding requirements under UL 514B, making it a reliable choice for electrical distributors and switchgear suppliers requiring robust lighting and wiring solutions.

Specifications

• Catalog Number: 38ADS
• Material: Zinc Die Cast, Spring Steel, Plastic Bushing
• Finish: Ball burnished, mirror smooth
• Grounding Lug: Tin electro-plated
• Trade Size: 3/8"

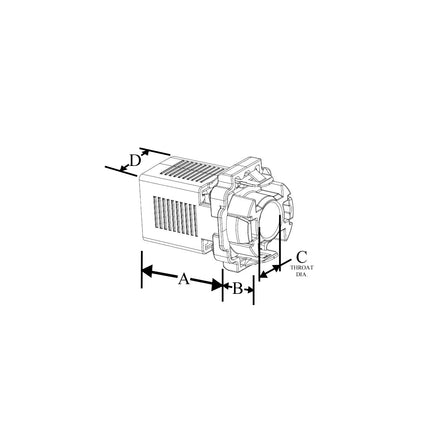

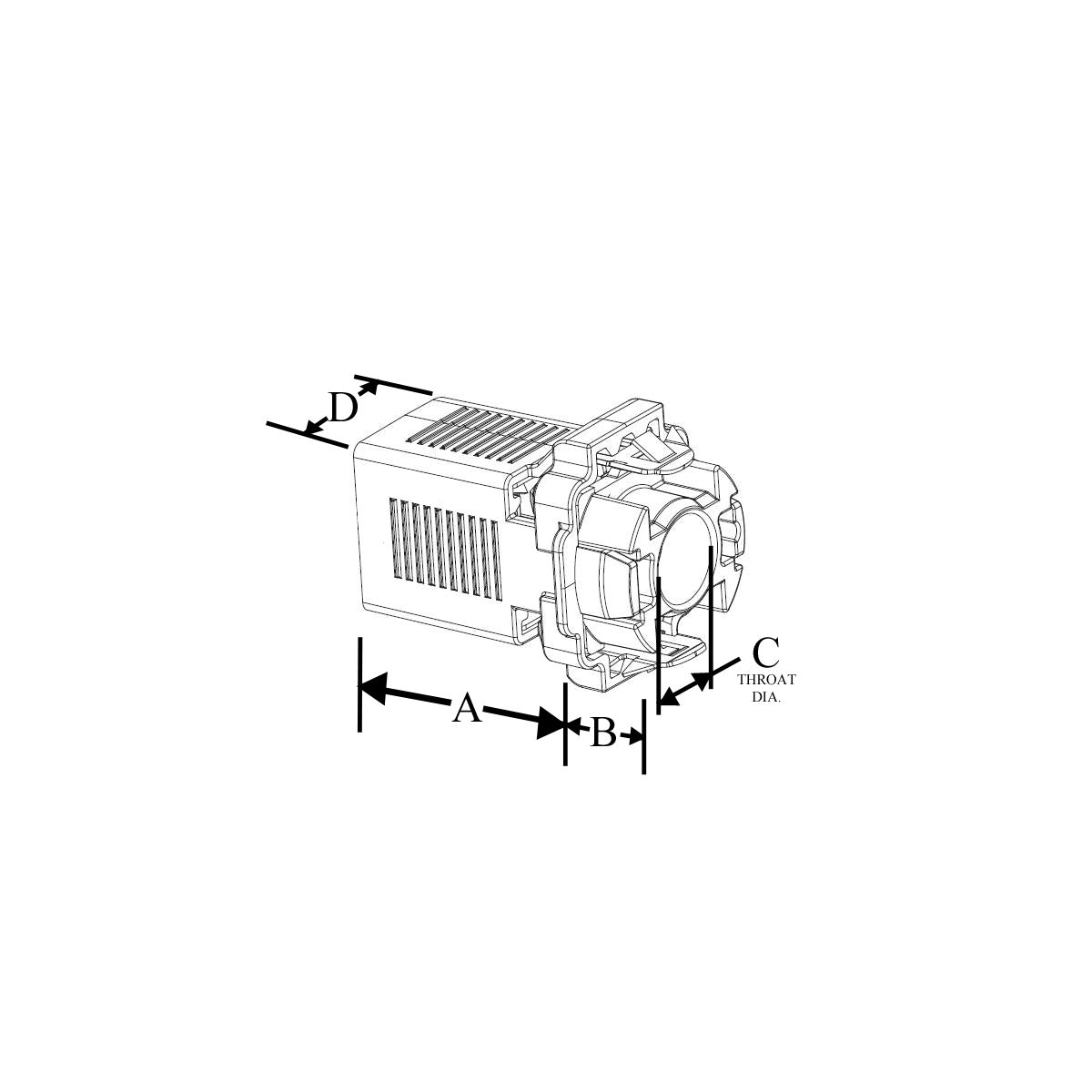

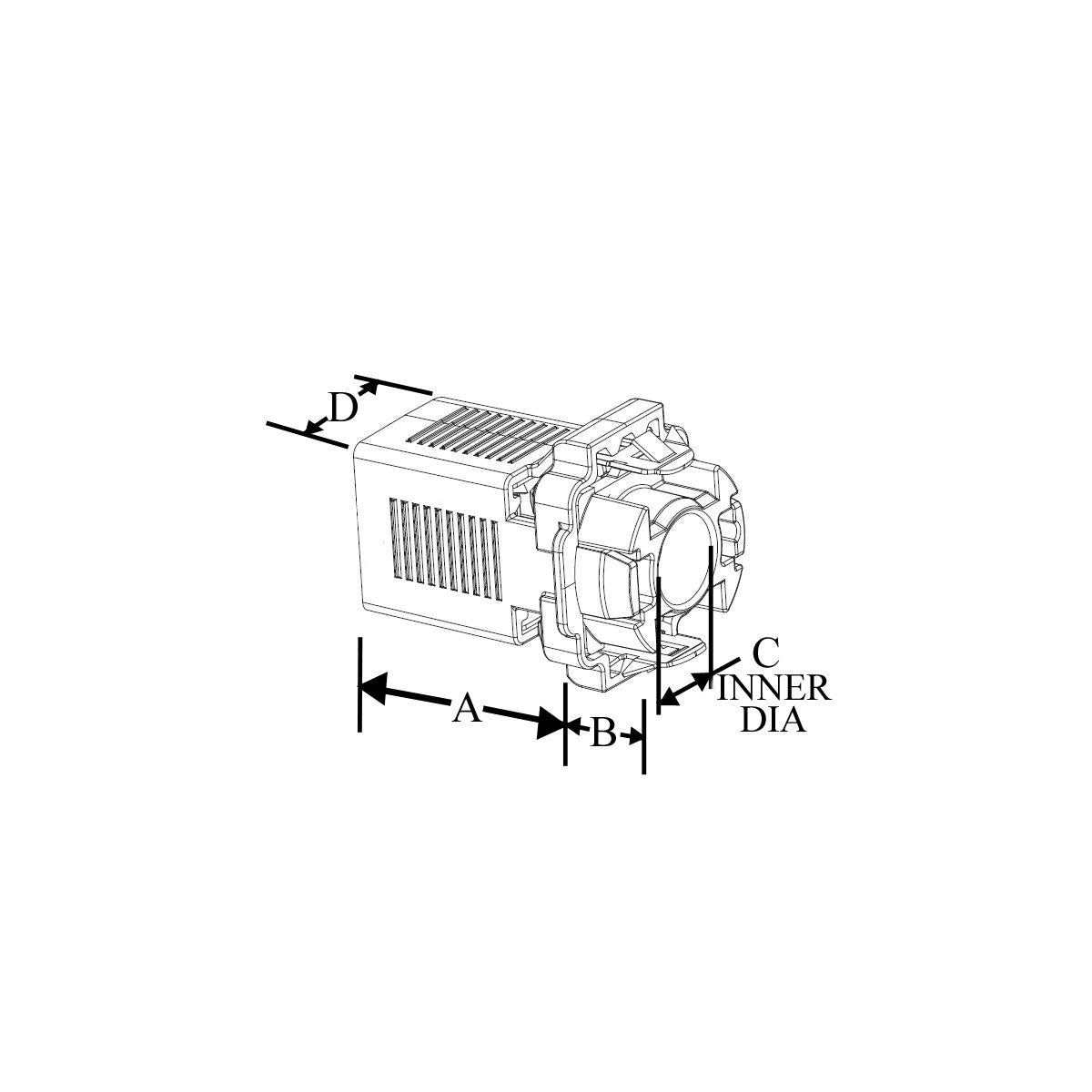

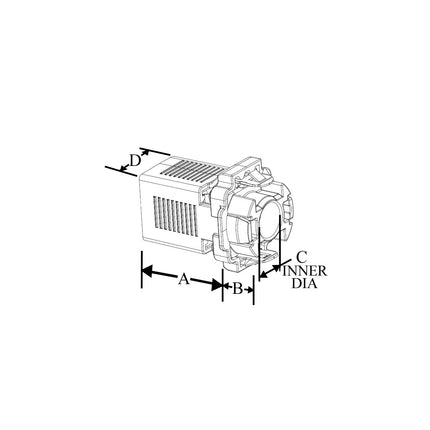

• Dimensions A (Length): 1.165 in
• Dimensions B (Depth): 0.28 in
• Dimensions C (Throat Diameter): 0.39 in
• Dimensions D (Width): 0.77 in
• Weight: 0.0570 lbs
• Application: For use with 14/2 to 10/3 (.40"-.63") Aluminum and Steel AC/MC/MCI-A/HCF and 3/8" Aluminum and Steel FMC/RWFMC
• Certifications: cULus Listed, UL 514B, Federal Specification A-A-50552, UL File Number E20534, NEMA Standard FB-1
• Country of Origin: India

Features

• Double-snap design allows quick installation without tools
• Insulated throat protects wiring from abrasion and is rated for 105¬∞C
• Reusable and easy to remove from the box
• Ball burnished finish for corrosion resistance and smooth installation
• Meets bonding and grounding requirements for AC/MC cable connections
• Compatible with a range of armored metal clad and flexible metal conduit cables
