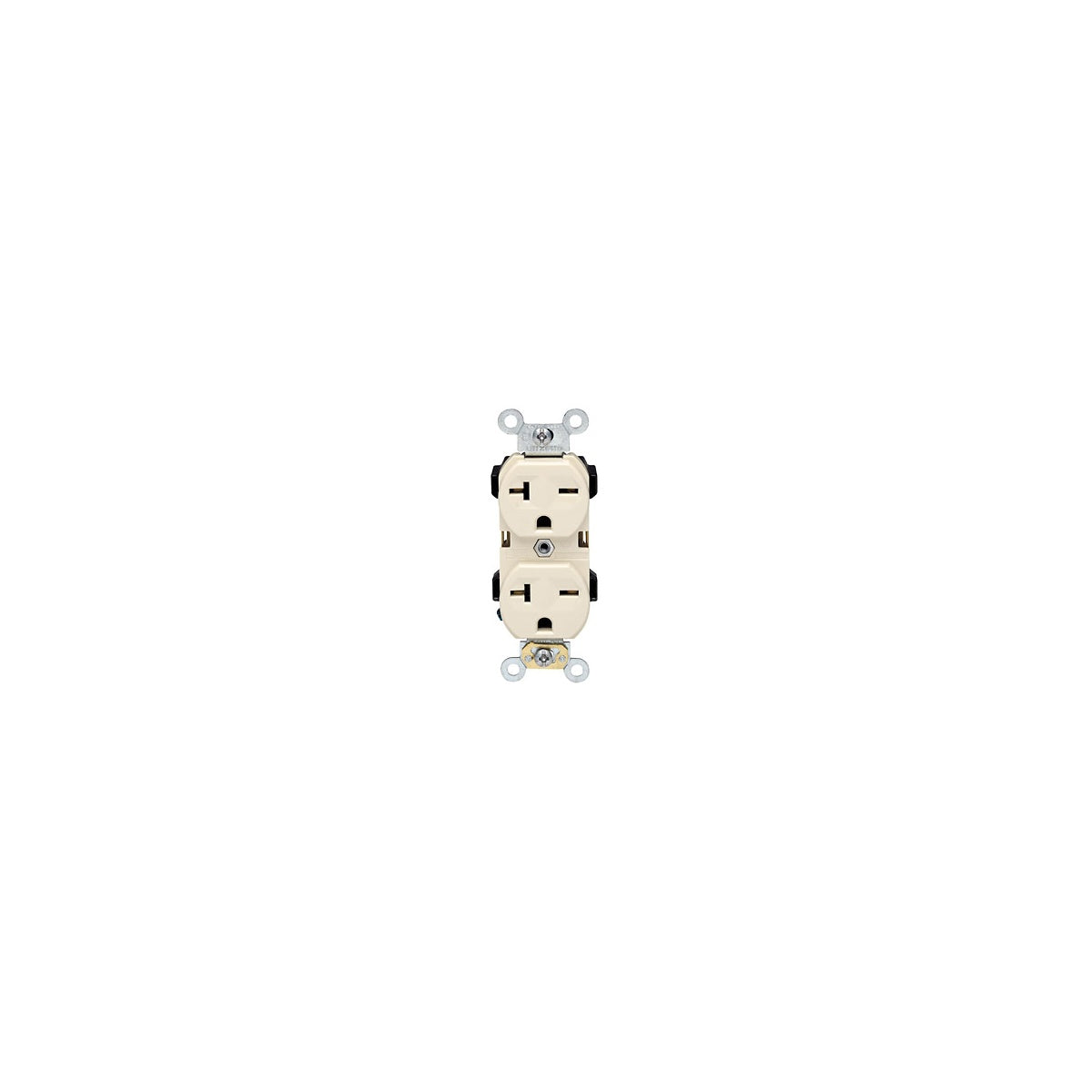

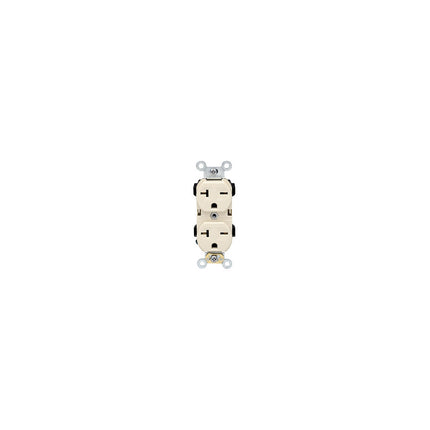

Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 250 Volt, Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory
SKU: #20765
Part: #5824-I
UPC: 078477819869
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 250 Volt, Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory
SKU: #20765
Part: #5824-I
UPC: 078477819869
Description
Duplex Receptacle Outlet, Commercial Specification Grade, 20 Amp, 250 Volt, NEMA 6-20R
Leviton’s Duplex Receptacle Outlet is a commercial specification grade device designed for demanding electrical environments. Suitable for use by electrical distributors and switchgear suppliers, it supports 20 amperes at 250 volts and features a NEMA 6-20R configuration. This receptacle is ideal for commercial office buildings, schools, hospitals, and hotels, providing reliable wiring solutions with both back and side wire connections.
Specifications
- Device Type: Duplex Receptacle Outlet
- Grade: Commercial Specification
- Amperage: 20 amperes
- Voltage: 250 volts
- NEMA Configuration: 6-20R
- Number of Poles: 2
- Number of Wires: 3
- Grounding: Self-Grounding
- Body Material: Nylon
- Face Material: Nylon
- Dielectric Strength: 2000 volts
- Horsepower Rating: 2 horse power
- Operating Temperature: -40 degrees Celsius
- Flammability Class: Rated V-2 Per UL 94
- Color: Ivory
- Product Weight: 0.1844 lbs
Features
- Heavy-duty specification grade construction for demanding environments
- Available in isolated ground and tamper-resistant configurations (not shown)
- Back or side wire terminals accept up to #10 AWG copper or copper-clad wire
- Self-grounding design for enhanced safety and ease of installation
- Complies with UL 94 V-2 flammability rating for fire resistance
- Designed for commercial applications including hotels, schools, hospitals, and office buildings
